STM-1300
xinglong
New
Electric
Customized
Semi automatic
semi automatic flute laminator machine
1 Year
Provided
China,Hebei
Ordinary Product
Video Technical Support

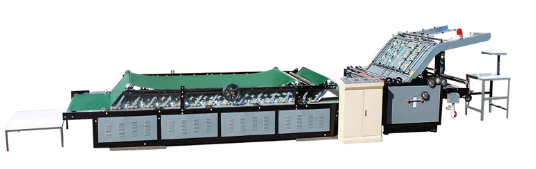

Semi Automatic Flute Laminating Machine
Features:
The whole machine adopts PLC control system, compared with other time delayer or intermediate relay control, the walking paper is more accurate and stable, and greatly improves the speed, the circuit failure can automatically display alarm;
Using a CpG motor in Taiwan, the signal conversion control of brake, clutch and low light eye is banned.
The base paper adopts the inspiratory automatic walking paper, which can be tracked automatically and continuously according to the speed and continuity of the paper.
New concept front gauge positioning, positioning accuracy is high, the base paper will never lead; paper advance adjustable.
Automatic glue supplement system can automatically replenish the lost amount of glue in the process of bonding, and cooperate with the recycling of glue to avoid the wastage of glue.
Measuring roller speed scientific design, to ensure uniform amount of glue at the same time, to avoid high-speed operation when the glue;
Use cot cleaning, make the lower roller clean and thorough, corrugated paper back no viscose, save frequent replacement scraper trouble;
Floating movable press bed to ensure that the laminated corrugated paper will not be flattened, but also ensure that the cardboard flat and straight;
Use independent water tank to control the water circulation, clean clean, not easy to accumulate glue;
Roller pressure unilateral adjustment, change the bottom paper specifications, only unilateral shake to the required scale, no need to test the pressure of each roller, adjust the machine convenient and rapid.
Technical parameter
Model | STM-1300 |
Max laminate size | 1300*1100mm |
Min laminate size | 360*360mm |
Economic speed | 0-100piece/min |
Precision | ±1 |
Power | 8.5kw |
Dimension | 8800mm*2450mm* 1700mm |
Weight | About 3.5T |
Semi Automatic Flute Laminating Machine
Features:
The whole machine adopts PLC control system, compared with other time delayer or intermediate relay control, the walking paper is more accurate and stable, and greatly improves the speed, the circuit failure can automatically display alarm;
Using a CpG motor in Taiwan, the signal conversion control of brake, clutch and low light eye is banned.
The base paper adopts the inspiratory automatic walking paper, which can be tracked automatically and continuously according to the speed and continuity of the paper.
New concept front gauge positioning, positioning accuracy is high, the base paper will never lead; paper advance adjustable.
Automatic glue supplement system can automatically replenish the lost amount of glue in the process of bonding, and cooperate with the recycling of glue to avoid the wastage of glue.
Measuring roller speed scientific design, to ensure uniform amount of glue at the same time, to avoid high-speed operation when the glue;
Use cot cleaning, make the lower roller clean and thorough, corrugated paper back no viscose, save frequent replacement scraper trouble;
Floating movable press bed to ensure that the laminated corrugated paper will not be flattened, but also ensure that the cardboard flat and straight;
Use independent water tank to control the water circulation, clean clean, not easy to accumulate glue;
Roller pressure unilateral adjustment, change the bottom paper specifications, only unilateral shake to the required scale, no need to test the pressure of each roller, adjust the machine convenient and rapid.
Technical parameter
Model | STM-1300 |
Max laminate size | 1300*1100mm |
Min laminate size | 360*360mm |
Economic speed | 0-100piece/min |
Precision | ±1 |
Power | 8.5kw |
Dimension | 8800mm*2450mm* 1700mm |
Weight | About 3.5T |
