High quality RS4-B Series Semi automatic Rotary slotting machine

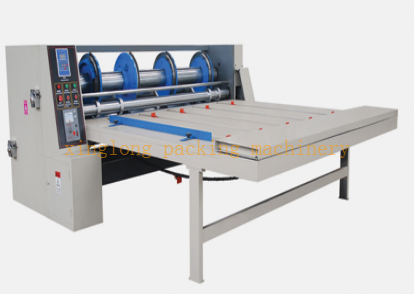

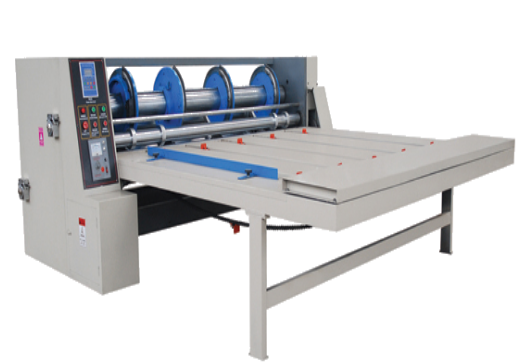

RS4-B-1626 Series Semi-auto Rotary slotting Machine

 Function and Uses:

The rotary slotting machine is a combination equipment, it can perform slotting,corner cutting， slitting, creasing one time, Its main characteristics of hand feeding single cardboard, all of corrugated cardboard is ok .

 Performance features:

1. Chain feeding, side gauge positioning to ensure paper feeding accuracy.

2. Planetary gear type 360-degree electric phase adjustment, fast and convenient

3. Adopt manual four-tool synchronous adjustment box height, convenient and quick (optional electric adjustment)

4. Automatic spray Lubrication Gear to prolong Gear Life

5. The grooved bottom shaft is designed with a cross slider eccentric sleeve, which can be adjusted according to the thickness of the cardboard and the pressure of the upper cutter shaft.

6. All shaft grinding, hard chrome plating

7. The slotting cutter adopts high quality 48CrMoand is quenched at high temperature.

8. The variable-frequency motor drive, the speed is adjustable, and the machine is running smoothly

9. Electronic counter, showing the quantity of production.

10. Slotted line pressing manual traverse (electric optional)

11. Optional: punch

 Technical Parameter
