High quality Printing slotting die cutting and folder gluer strapping machine groups

Availability:
Quantity:
  • LDX2200

  • xinglong

  • Corrugated carton production line

  • Electric

  • Ordinary Product

  • China,Hebei

  • Provided

  • Customized

  • Provided

  • 1 Year

  • Easy to Operate

  • Video Technical Support

封面(蓝)1

Corrugated carton production line

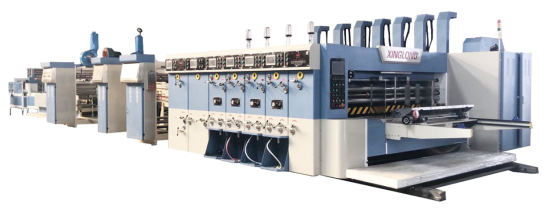

LDX Series Printing slotting die cutting folder gluer strapping in line

联动线

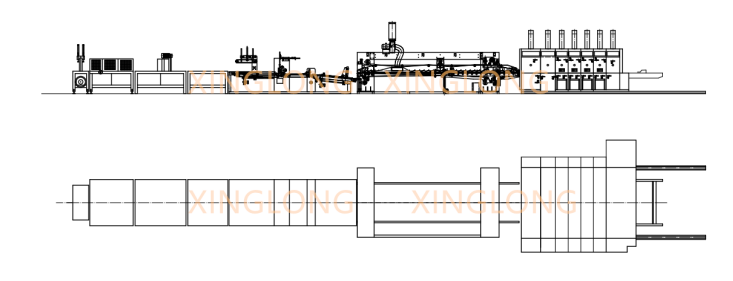

 MACHINEDRAWING

联动线

Performance and Characteristics:

  • The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, gluing and so on.

  • Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .

  • All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.

  • Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.

  • The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.

  • The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.

  • Motorized digital phase adjustment with “automatic zero return” and “memories” function ,PLC control with touch screen .

  • The machine adopts lead edge , low demand for the cardboard, fast.

  • Main motor is VFD, working stability, low power consumption.

 Main Technology Parameters

Model

LDX2200

Machine inside width (mm)

2200

Max feeding paper size(mm)

1200mm*2000mm

Max effective printing size(mm)

1200mm*1800mm

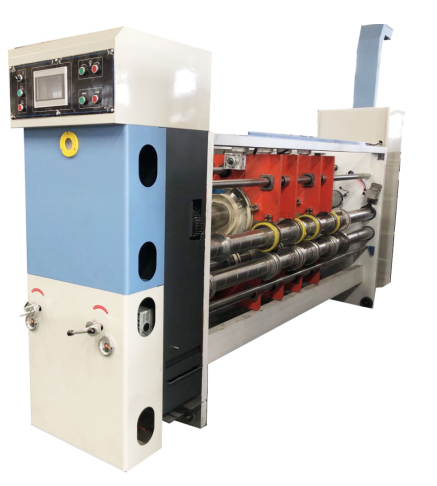

positive knife min slotting space (sloting unit independently)

150*150*150*150

negative knife min slotting space (sloting unit independently)

280*80*280*80

Max die cutting size(mm)

1200mm*1900mm

Min coverage size(mm)

350mm*700mm

Design speed (pcs/min)

130pcs/min

Working speed (pcs/min)

100-110pcs/min

Standard Thickness of printing plate

6mm

Printing precision

±0.5mm

Thickness of cardboard

2-9mm

Wall thickness

40mm

Main motor power

About :15kw

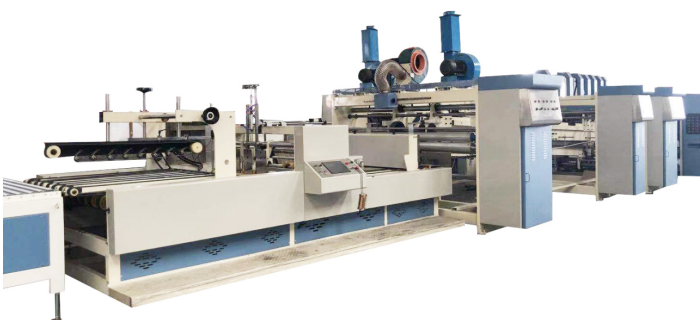

SYFC-1200 Inline automatic folder gluer

联动线1


   SYFC-1200 Folder gluer is designed and produced according with print, slot, fold, glue and stack.  PLC control, store and manager order by touch screen. High speed product, fast order change and good stability can meet more less delivery time request.


PP Strapping unit


联动线2


Machine Introduction

  • The strapping machine consists of three units. paper conveyer and steering unit,gather align unit and no-man power strapping unit.

  • This strapping assembly line is a fully automatic strapping assembly line with the integration of machinery, electricity and gas.

  • Fast packing speed: PLC control, stable performance, compact packing time, faster.

  • Operating capacity:9-18 pieces/ min;

  • Working environment: the relative humidity is less than or equal to 90%, the temperature is 0-40 degrees Celsius, and the noise is less than or equal to 75 dB (A);

  • The bandwidth is 5 mm(standard)  0r  9 mm (optionally); the tape reel specification: the inner diameter of the paper core with the ring is 200-210 mm, the outer diameter of the belt ring is 400-450 mm, and the band width is 175-190 mm;

  • Bonding method: hot fusion;

  • The bonding mode: the bottom is adhered, the bonding surface is more than or equal to 90 percent, the deviation of the bonding position is less than or equal to 2 millimeters, and the bundling tightness is 0-45Kg;

  • Air source pressure: 0.5-0.8MPa; roller material: stainless steel; roller diameter: 50mm, wall thickness: 1.2-1.5mm;

  • Transportation speed: 0 -50m / min;
