High quality Corrugated roll for making corrugated cardboard

Availability:
Quantity:
Inquire Add to Basket

  • xinglong

封面（蓝）

Corrugated roll

瓦楞辊

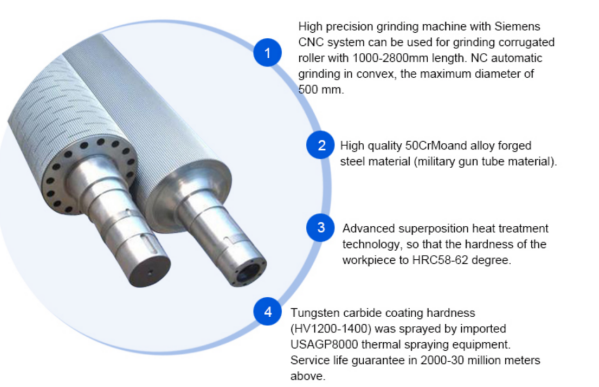

瓦楞辊1

1. The corrugated roll is made of high quality alloy steel. The technology comes from war industry.

2..Adopt high precision computer control professional grinding machine.

3.It is treated by special corrugated roll surface treated technology. The hardness is very high.

4. High-speed corrugated roll with big diameter. The maximum working speed is 300m/min.

5. Gear type: UV,V. Flute type: A, B, C, BC, D, E, F optional.

6. Fingerless suction and inner suction are optional.

7. We are engaging in design ,repair, manufacture all kinds of corrugating roll.

瓦楞辊2

瓦楞辊3

Corrugation parameters

Type of corrugafion

A

C

BC

BC2

B

D

DE

E

F

Shape of corrugafion

UV

UV

UV

UV

UV

UV

UV

UV

UV

Quantity of corrugafion

34±2

38±2

40±2

44±2

48±2

50±2

66±6

75±3

96±4

124±10

Hight of corrugafion

4.6-4.9

3.6-3.9

3.0-3.4

2.8-3.2

2.6-2.9

1.9-2.1

1.5-1.9

1.1-1.8

0.7-0.8

Rate of corrugafion

1.51-1.59

1.44-1.51

1.42-1.49

1.40-1.45

1.36-1.42

1.40-1.41

1.35-1.4

1.29-1.39

1.22-1.26

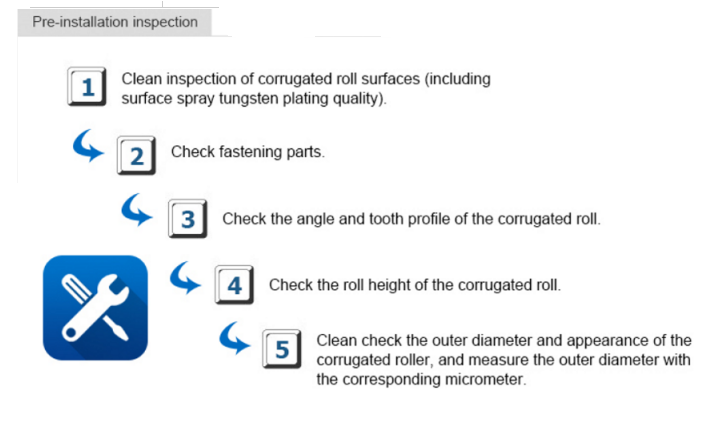

瓦楞辊4

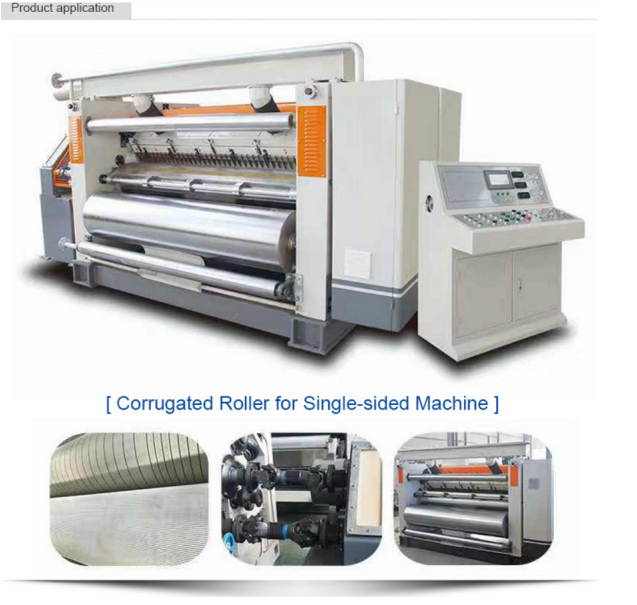

瓦楞辊5
