BFY2000
xinglong
New
Semi automatic
Manual feeding
Ordinary Product
Optional
Electric
1 Year
Video Technical Support
China,Hebei

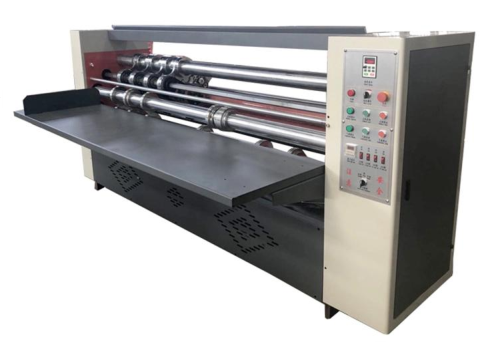

Thin blade slitter scorer machine
BFY-2000 Thin balde slitter scorer
Main Uses and Characteristics:
It adopts thin blade slit, and it is sharp after grind, slitting cardboard edge smooth.
First creasing, then slitting, and then pull paper
It adopts manual and automatic grind blade type, it can choose grind and stop grind time, keep blade is sharp and cardboard edge smooth.
Blade lifting mechanism, it can switch blade according to sli5tting number.
Manual regulate crease width
Option：Electric regulate the space of blades, pneumatic lock blade holder.
Main Technology Parameter:
| Model | BFY2000 |
| Max sheet width (mm) | 1800 |
| Max machine speed | 80m/min |
| Slitting knife number | 4pcs |
| Scorer number | 6pcs |
| Min slitting width | 130*130*260mm |
| Min scorer width | 45mm |
| Blade out diameter | 200mm |
| Blade thickness | 1.3mm (alloy steel) |
| Motor power | 4.0kw |
| Pressure | ＜0.6mpa |
| Machine dimension | 2600*730*1500 |
| Machine weight | About 1100kg |
