High quality Automatic PP strapping Machine

  • 1200

  • xinglong

  • New

  • Electric

  • Ordinary Product

  • 1 Year

  • Provided

  • Customized

  • Provided

  • Automatic

  • China,Hebei

  • Easy to Operate

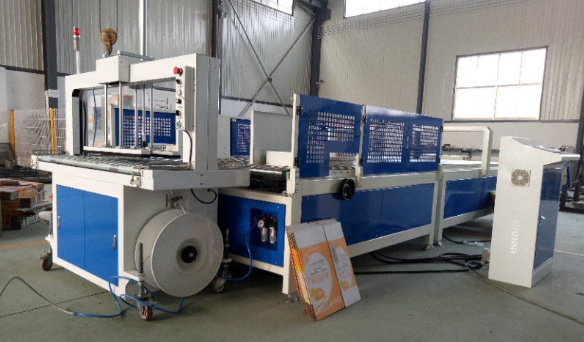

Automatic PP Strapping Machine


 Machine Introduction

※ The strapping machine consists of three units. paper conveyer and steering unit,gather align unit and no-man power strapping unit.

※ This strapping assembly line is a fully automatic strapping assembly line with the integration of machinery, electricity and gas.

※ Fast packing speed: PLC control, stable performance, compact packing time, faster.

※ Operating capacity:9-18 pieces/ min;

※Working environment: the relative humidity is less than or equal to 90%, the temperature is 0-40 degrees Celsius, and the noise is less than or equal to 75 dB (A);

※The bandwidth is 5 mm(standard)  0r  9 mm (optionally); the tape reel specification: the inner diameter of the paper core with the ring is 200-210 mm, the outer diameter of the belt ring is 400-450 mm, and the band width is 175-190 mm;

※Bonding method: hot fusion;

※The bonding mode: the bottom is adhered, the bonding surface is more than or equal to 90 percent, the deviation of the bonding position is less than or equal to 2 millimeters, and the bundling tightness is 0-45Kg;

※ Air source pressure: 0.5-0.8MPa; roller material: stainless steel; roller diameter: 50mm, wall thickness: 1.2-1.5mm;

※Transportation speed: 0 -50m / min;

Technical Parameter



Max package size

1200mmX1200mm*420mm (L * W * H)

Belt size

Width 5mm Thickness:0.5-0.55mm


9-18 units /min

Machine weight
