Flexographic Printer
New
cardboard
Hebei, China
XINGLONG
XL-die cutting and printing machine
Paper Printer, cardboard printer
Automatic
Multicolor
380V/50HZ
11W
Customized
3-10T
CE ISO9001

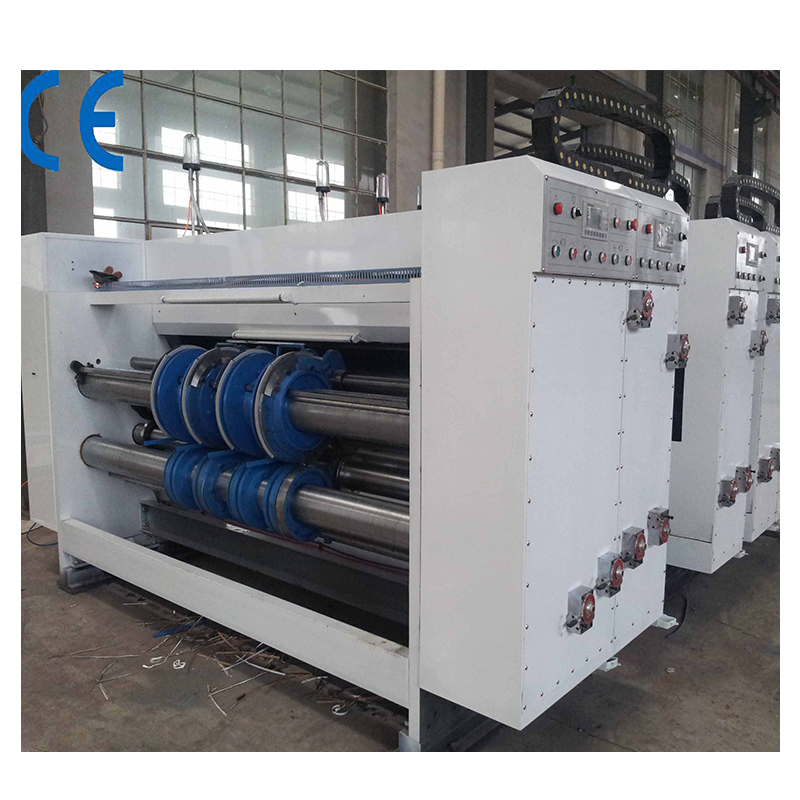

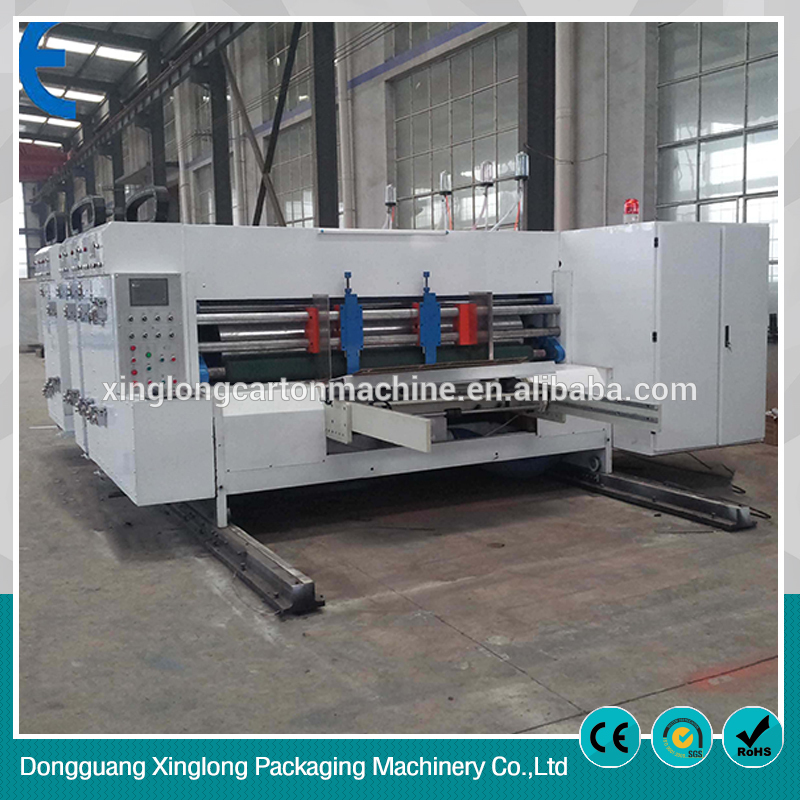

High productivity corrugated cardboard flex printing machine price
Optional
One Year
100 m/min
60-80pcs/min
2600mm
1200*2400mm
1200*2200mm
±0.75mm
1.2-9mm
Engineers available to service machinery overseas
High productivity corrugated cardboard flex printing machine price
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Motorized digital phase adjustment with “automatic zero return” and “memories” function ( options: PLC control with touch screen)
The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
Main motor is VFD, working stability, low power consumption.
Main Technology parameters:
Model | QYKMA405-2600 | QYKMA480-2600 |
Machine inside width (mm) | 2600 | 2600 |
Max feeding paper size(mm) | 1200*2400 | 1450*2400 |
Max effective printing size(mm) | 1200*2200 | 1450*2200 |
Min coverage size(mm) | 350*500mm | 350*500mm |
Min slotting space(mm) | 190*50*190*50 | 190*50*190*50 |
Design speed | 100pcs/min | 100pcs/min |
Working speed | 60-80pcs/min | 60-80pcs/min |
Standard Thickness of printing plate | 6mm | 6mm |
Printing precision | ±0.75mm | ±0.75mm |
Thickness of cardboard | 1.2-9mm | 1.2-9mm |
Wall thickness | 40mm | 40mm |
Main motor power | About 11kw | About 11kw |
If you are also interested in the following product, please click the link
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
If you meet any other questions, please feel free to contact us. click here
