High productivity 1.5mm thickness e flute corrugated cardboard machine

  • Packaging Line

  • Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop

  • Video technical support, Online support, Spare parts, Field maintenance and repair service

  • None

  • None

  • New

  • Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles

  • Cartons, Cans, Bottles, Barrel, Foil

  • Plastic, Paper, Wood

  • Automatic

  • Electric

  • 220V/380V

  • Hebei, China


  • Customized

  • about 100 tons

  • CE ISO

  • 1 YEAR, 12 months

  • Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas

  • Remote Control

  • Ordinary Product

  • Provided

  • Provided

  • 1 YEAR

  • Gear, Engine

  • High productivity 1.5mm thickness e flute corrugated cardboard machine

  • A,B,C,E,UV(Depends on the customer's requirement)

  • 1600-2200mm

  • 60-220m/min

  • Customized

  • 380V, 50Hz

  • 100KW

  • Customized

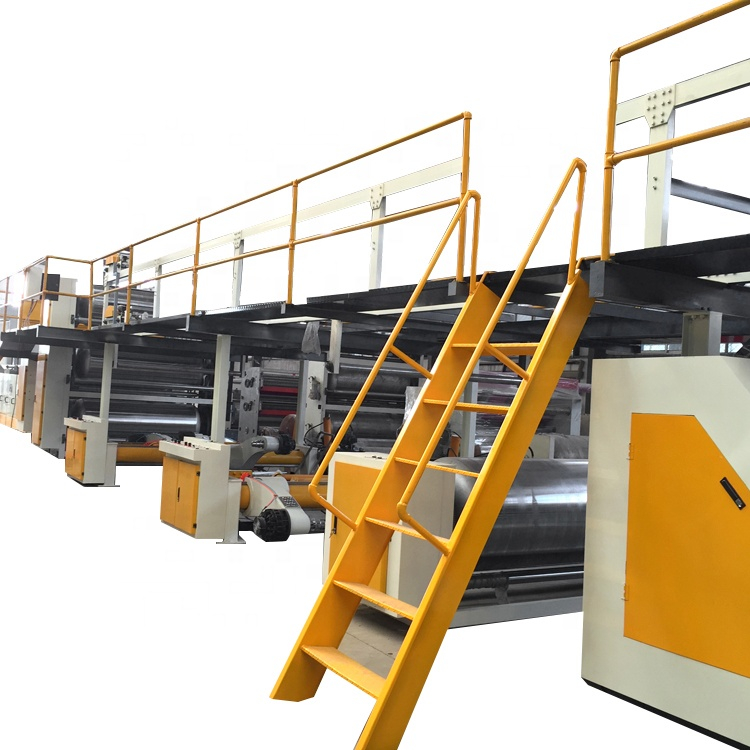

High productivity 1.5mm thickness e flute corrugated cardboard machine

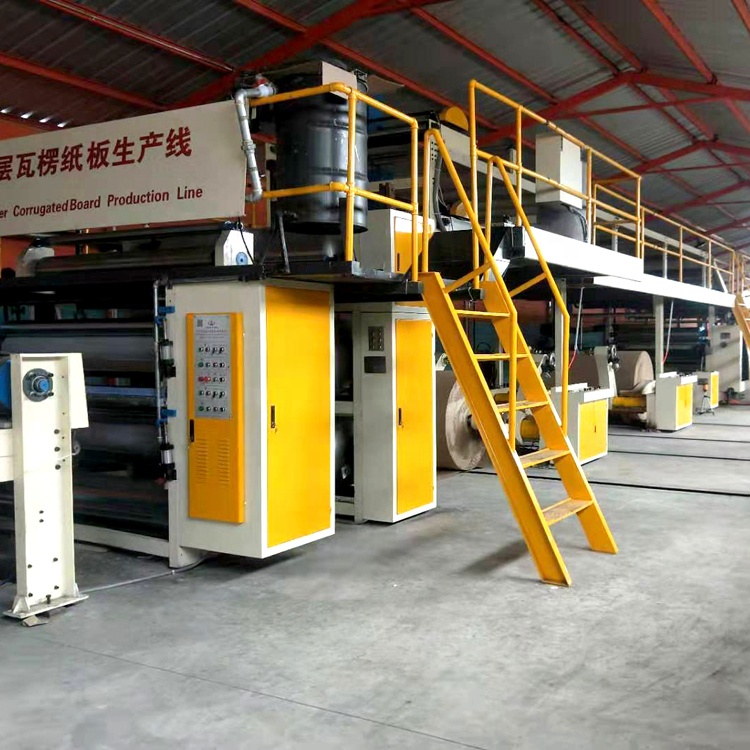

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard. The production line consists of the mill roll stand, liner preheater, single facer machine, conveyor bridge, gluing machine, double facer machine, slitter scorer, cut-off, conveyer and stacker, heating system, air cmpression system and gue making system and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad,our company has developed and designed these production lines with the speed 60-220m/min, the paper width 1600-2200mm and A,B,C,E,UV flute production line can satisfy different customrs.

Main units:






Mill roll stand

Electric mill roll stand , expansion dop top, pneumatioc brake


Single facer

vac-sorb,φ320 alloy roller ,cardan drive


Feeding paper bridge

Electric adjust deviation,adsorb tension


Second gluing machine

Conversion synchronous control


Triply pre-heater

φ 800,electric wrap angle(including qualification certificate )



φ 800,land type electric wrap angle(including qualification certificate )


Dry formed


520mm×18 pieces hot plate ,adopt Adopt up and down intensive roller(including qualification certificate )


Heat formed


Adopt up and down intensive roller ,length 8m


Feeding paper belt

High quality carton belt , electric promote


Thin blade slitter scorer mahcine

5 blade 8 line , electric Correct error , alloy blade


Corss cutter

Computer control cutting cardboard length 500-9999mm; cutting cardboard precision ±1mm


Main drive

Main power 25KW


Make paste system

Barrel type ,electic stir circulate glue design


Stand feeding paper car

Include slipping way



Electric aeration


Electric system

One Operate cabinet ,one sinlge facer 1 main drive


Steam system

Not including heat source and pipe


Gantry stacker

Belt drive type

1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.

2. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

3. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

2) Skillful workers care every details in handling the producing and packing process

3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

2) To solve the problems with videos/pictures.

3) One year warranty for spare parts change.

If you meet any other questions or need more updated information, please feel free to contact us. click here
