High performance 2 ply corrugated board sheet cutter

Quantity:
  • Packaging Line
  • New
  • Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
  • Cartons
  • Paper
  • Automatic
  • Electric
  • 380v/410v/440v 50Hz
  • 3.0 kw
  • Hebei, China
  • XINGLONG
  • XL-sheet cutter
  • 1.5*0.8*1 m
  • 1.5-2.2T, About 1.5T
  • CE
  • High performance 2 ply corrugated board sheet cutter
  • Optional
  • 1200mm
  • 400-2400mm
  • 0-70min
  • P2
  • 2.2KW
  • 0-70m/min
  • 12 Months
  • Engineers available to service machinery overseas

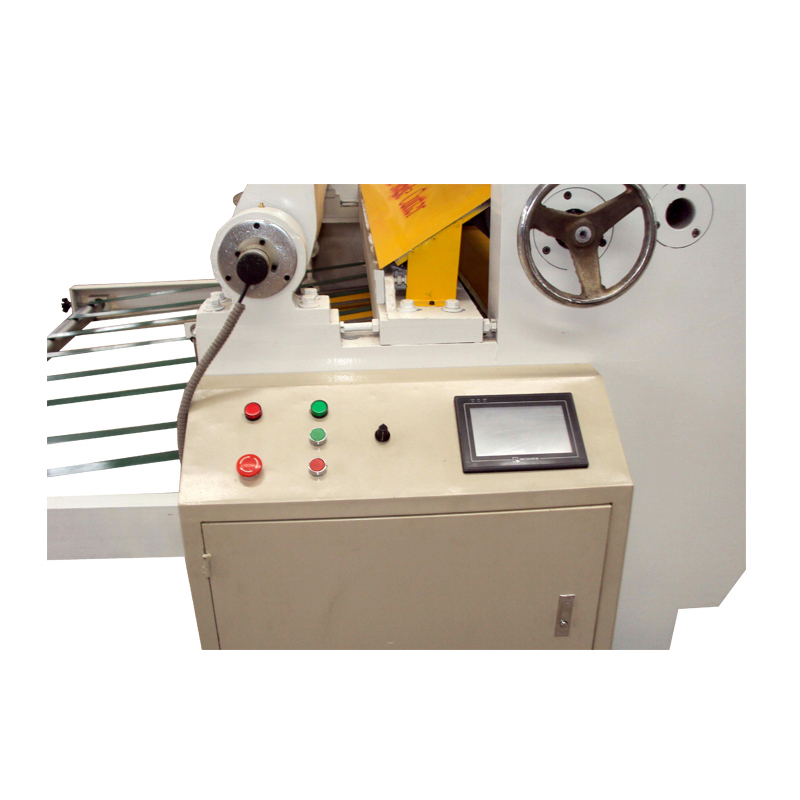

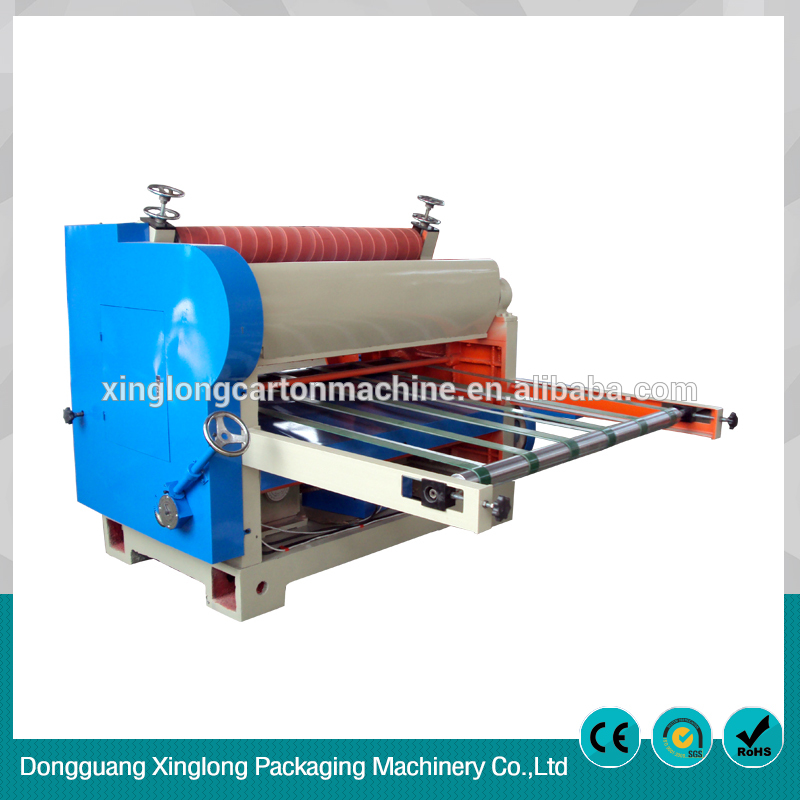

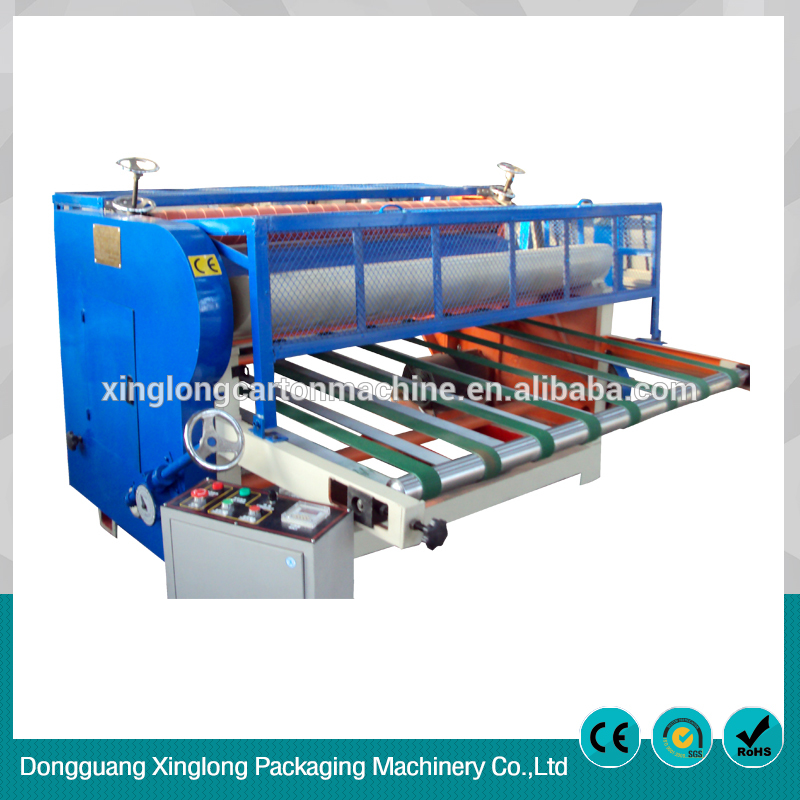

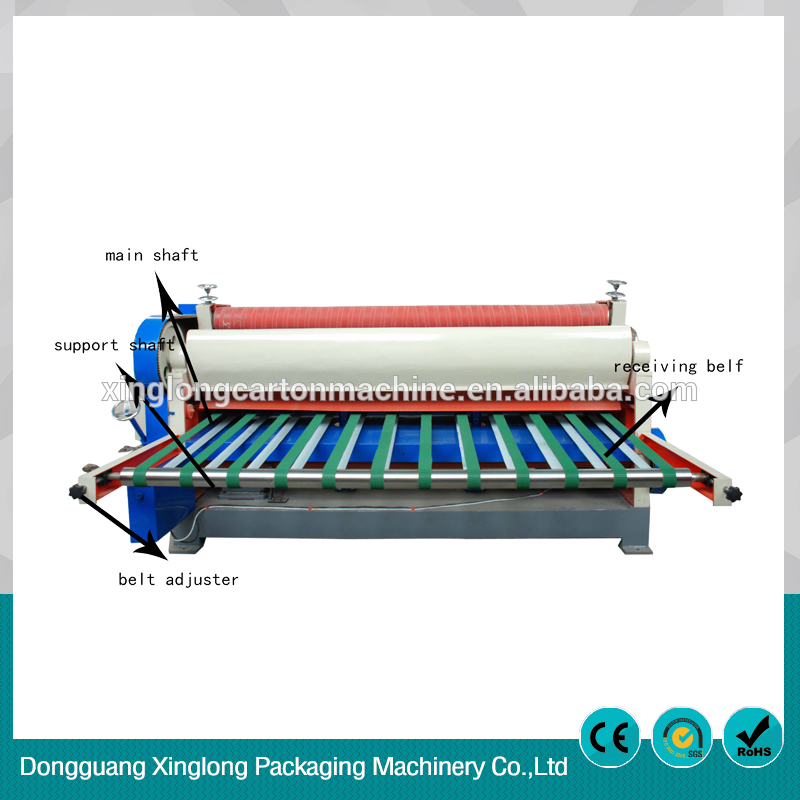

High performance 2 ply corrugated board sheet cutter



Paper sheet cutter mainly used for cutting reel paper or single wall paperboard to required size vertical and horizontal. It has characteristics of easy structure, convenience adjustment, long service life.


Technology Parameter:

Parameter Specification

1300model

1700model

2000model

Max cutting width(mm)

 1200

  1600

  1900

Cutting length range(mm)

400-2400

400-2400

400-2400

Cutting times(min)

  0-70

  0-70

  0-70

Stepless convertor

  P2

  P2

  P2

Motor(kw)

  2.2

   2.2

  3.0

Working speed(m/min)

              0-70

Weight (approx)T

             1.5-2.2
