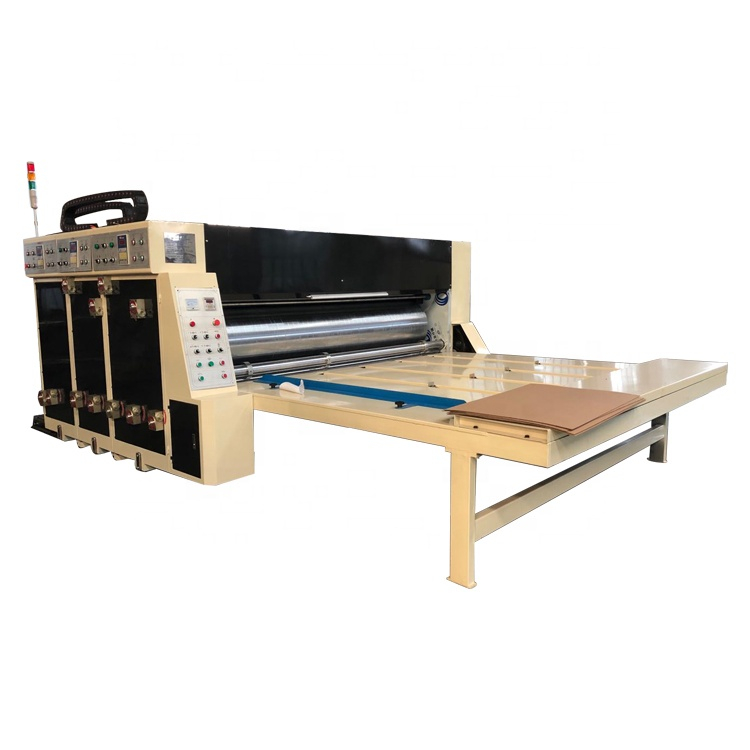

High efficient semi automatic carton printer machine corrugated box making machine

Quantity:
  • xinglong
  • New
  • 1 YEAR
  • Manufacturing Plant
  • Video technical support, Online support, Spare parts, Field maintenance and repair service
  • None
  • None
  • Free spare parts, Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support, Engineers available to service machinery overseas
  • Easy to Operate
  • High efficient semi automatic carton printer machine corrugated
  • 1400*2200mm
  • 1400*2000mm
  • 350*500mm
  • 6mm
  • 80pcs/min
  • 40-60pcs/min
  • +/-0.5mm
  • carton printer machine corrugated

High efficient semi automatic carton printer machine corrugated



Description:

1. Chain type hand move feeding cardboard
2. Adopt 360 degree electric ensure and adjust position ,while working or stop can be adjust quickly and accurately
3. When machine stopped working ink roller can automatic separate with printing roller facer in order to protect it ,
4. Ink roller have the separately turn device to prevent ink dried when machine stopped working
5. Adopt pneumatic locking ,electric separation
6. Ink supply by pneumatic diaphragm pump
7. Main transmission gear made by 45 steel after high frequency quench
8. Transmission part adopt sprinkle lubricating system ,ensure the machine precise and long use time .

Technological parameter:

Model

BYKM 480-2300

BYKM 480-2600

BYKM 480-3000

Max.feed sheet size

1400*2200mm

1400*2500mm

1400*2900mm

Effective printing area

1400*2000mm

1400*2300mm

1400*2700mm

Min.feed sheet size

350*500mm

Standard thickness of printing plate

6mm

Design speed

60 pcs/min

Working speed

30-50 pcs/min

Printing precision

+/-0.5mm

Thickness of cardboard

1.2-9mm




1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.


2. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

   2) Skillful workers care every details in handling the producing and packing process

   3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.


3. Q: What is the payment terms?

A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.


4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

   2) To solve the problems with videos/pictures.

   3) One year warranty for spare parts change.
