High effective carton box cardboard cutting slitting crease machine

Availability:
Quantity:
  • Other

  • Manufacturing Plant

  • New

  • Food, Beverage, Commodity

  • Cartons

  • Paper

  • Semi-Automatic

  • Electric

  • 3ph 380v 50hz

  • 4kw

  • Hebei, China

  • XINGLONG

  • 1500KG

  • 2500*800*1600MM

  • CE

  • low price

  • High effective carton box cardboard cutting slitting crease machine

  • 2000mm

  • 1800mm

  • 3ply-5ply corrugated cardboard

  • 0-100m/min

  • blue, white, grey

  • 5 blades 8 creaser

  • high speed steel

  • slitting and crease for corrugated cardboard

  • thin blade knife, cutting no trim

  • Engineers available to service machinery overseas

Product Description

Function and characteristics

  • 1. The machine adopts thin blade knife, board, flute not collapse, not flatten, edge is straight, tidy and clean, improve quality of board.

  • 2. First scorer, then slitting and final delivery out to machine.

  • 3. Sharpening knife controlled by automatic or manual type, and it can set sharpen time and stop time, keep knife sharpen, cut board tidily.

  • 4. Each knife can be lifted separately, choose knife work according to cut quantity.

  • 5. Crease wheel width adjusted by manual.


Direction for us
This slitting crease machine can work offline. it used to cut 3layer, 5 layer corrugated cardboard and do crease.

Size Information
Model
BFY-SDP-2000
knife and scorer
5knife 8scorer(or depend on clients)
Min slitting width(mm)
125

Min scorer width(mm)
50
out diameter of blade(mm)
200
Thickness of blade(mm)
1
Motor power(KW)
4
Max speed
100pcs/min
Air pressure
<0.4mpa
Dimension(mm)L×W×H
2800×850×1500
Related Products
After Sales Service
1. 24 hour online service
2. by phone service
3. engineer avaliabe send to users factory
4. send parts free
Company Introduction

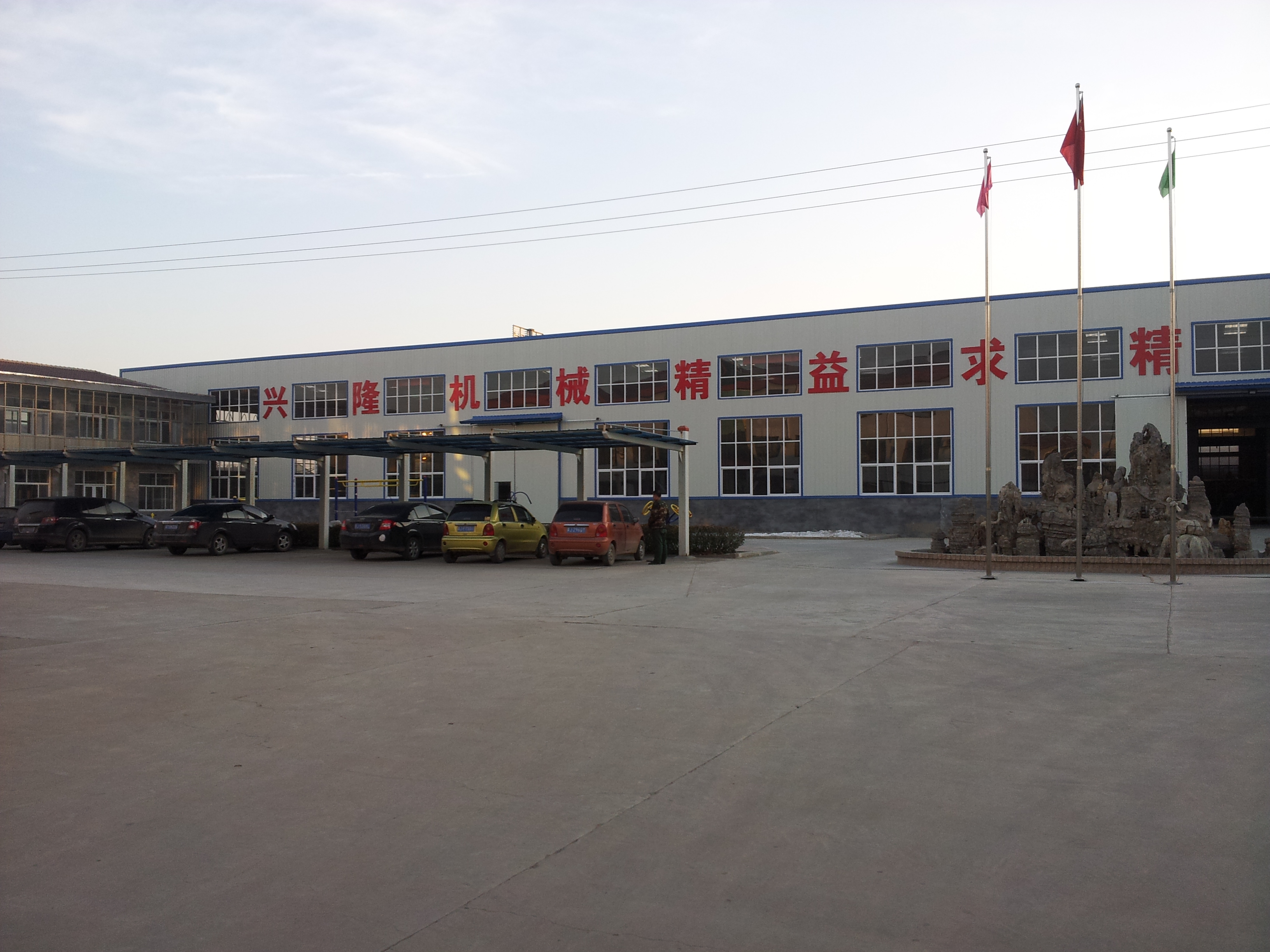

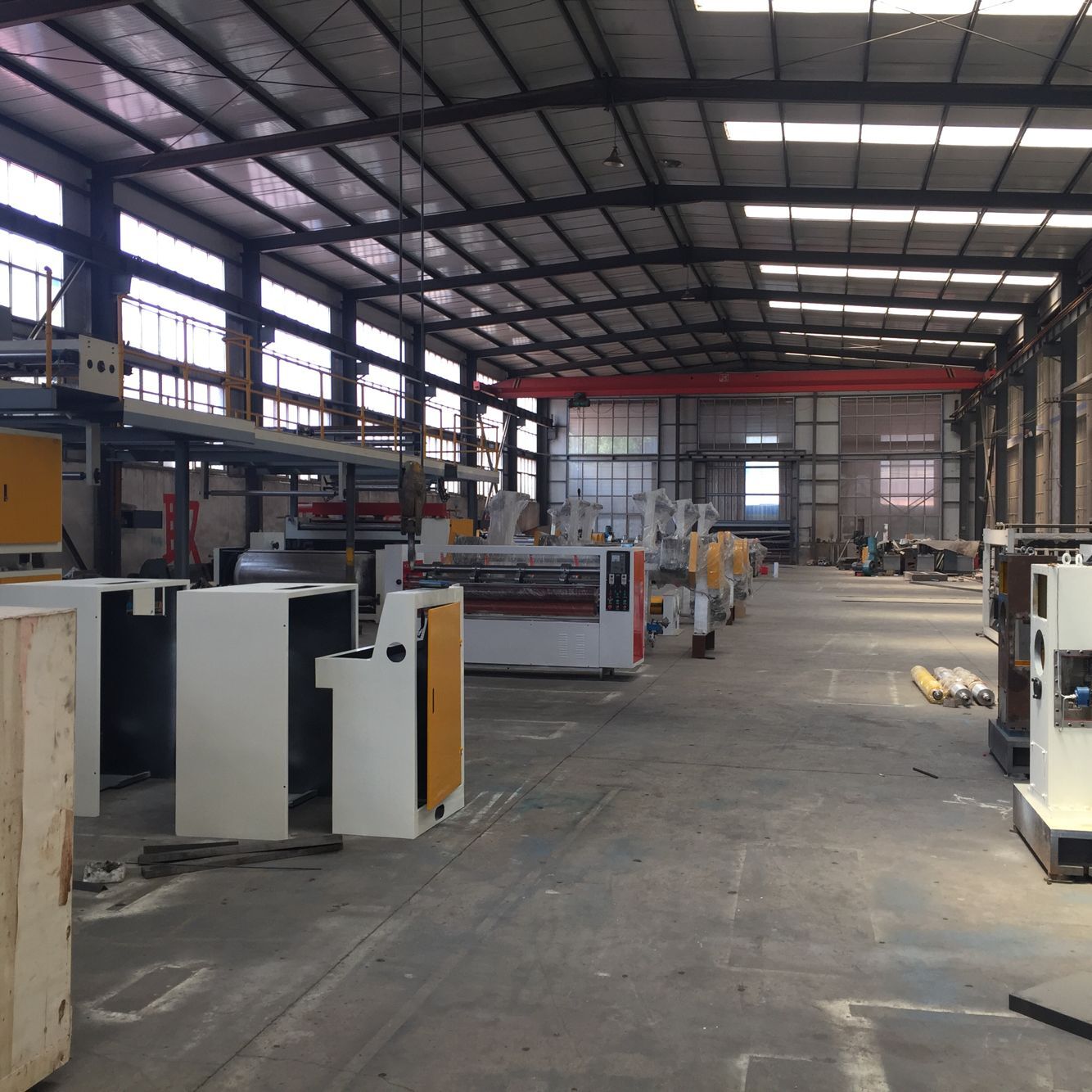

Dongguang Xinglong Packaging Machinery Co .,Ltd is specialized in the production of various kinds of carton equipments of the well-know enterprise.Factory of over twenty years, we introduced advanced technology at home and abroad, developing and manufacturing products, has been well received by customers. We are specialized in producing 3ply, 5ply, 7ply corrugated production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipments. Products are exported to Russia, the Middle East, Africa, Southeast Asia, EU and other countries and through out the country. Product quality and enterprise reputation get the high praise at home and abroad. Over the years the company take “the quality first” “integrity-based” corpose always meet users’ requirements as our sole purpose, providing the products with excellent quality, professional technology. Our company is willing to cooperate with domestic and foreign insight, strive for innovation, coexit win-win, hand in hand altogether will create package future.


FAQ
  1. Q: Are you a manufacturer, trading company or third party?

A: We are a manufacturer, located in Dongguang county, Hebei province, China.

Warmly welcome to visit our company

  1. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

  1. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

2) Skillful workers care every details in handling the producing and packing process

3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the middle east, Africa, Southeast Asia, EU, etc. Which earned us a high reputation among the customers.

  1. Q: How about the after-sale service?

A: 1) TM online 24 hours, also contact by email, skype, wechat, whatsapp, etc.

 2) To solve the problems with videos/pictures

 3) One year warranty for spare parts change.
