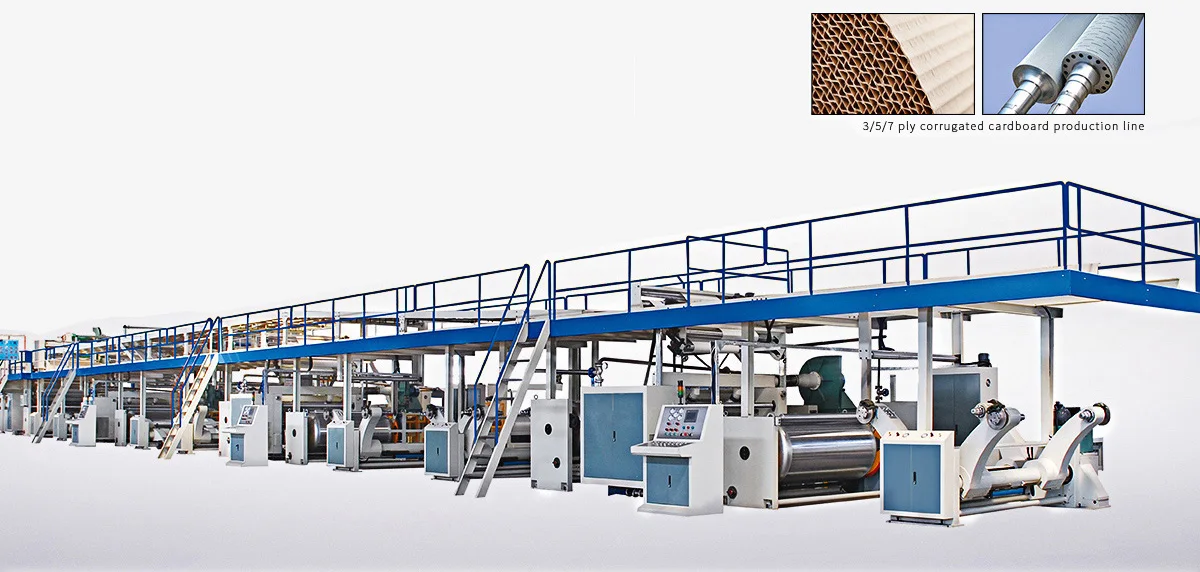

High Speed 5ply Packaging Corrugated cardboard production line for carton box making machine price

  • Packaging Line

  • Manufacturing Plant, Printing Shops, Food & Beverage Shops, packaging

  • New

  • Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, packaging

  • Cartons, Bags, Film, Case

  • Paper

  • Automatic

  • Electric

  • 380V


  • about70m*5m*4.5 m(L*W*H)

  • 80-100 Ton

  • CE,ISO9001

  • 1 YEAR

  • Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service

  • High Productivity

  • WJ120-1800

  • About 70meters

  • 120 meters/min

  • 100m/min

  • 1800mm

  • Pressure 1.0-1.2MP Consumption about2800-3500kg/h

  • Pressure0.8-1.0MP Consumption about: 1.5m3/min

  • +-1mm(manual)

  • 500*9999mm +-1mm

  • about130KW(380V 50HZ)

Product Description
Total length
Design speed
Working speed
Effective width
Steam pressure and consumption
Pressure: 1-1.2Mpa Consumption about2800-3500kg/h
Air pressure and consumptio
Pressure: 0.8-1.0Mpa consumption: 1.5m³/min
Slitting precision
Cutting length and precision
500-9999mm ±1mm
Total power
About130KW(380V 50HZ)
About70m×5m× 4.5 m (L×W×H)

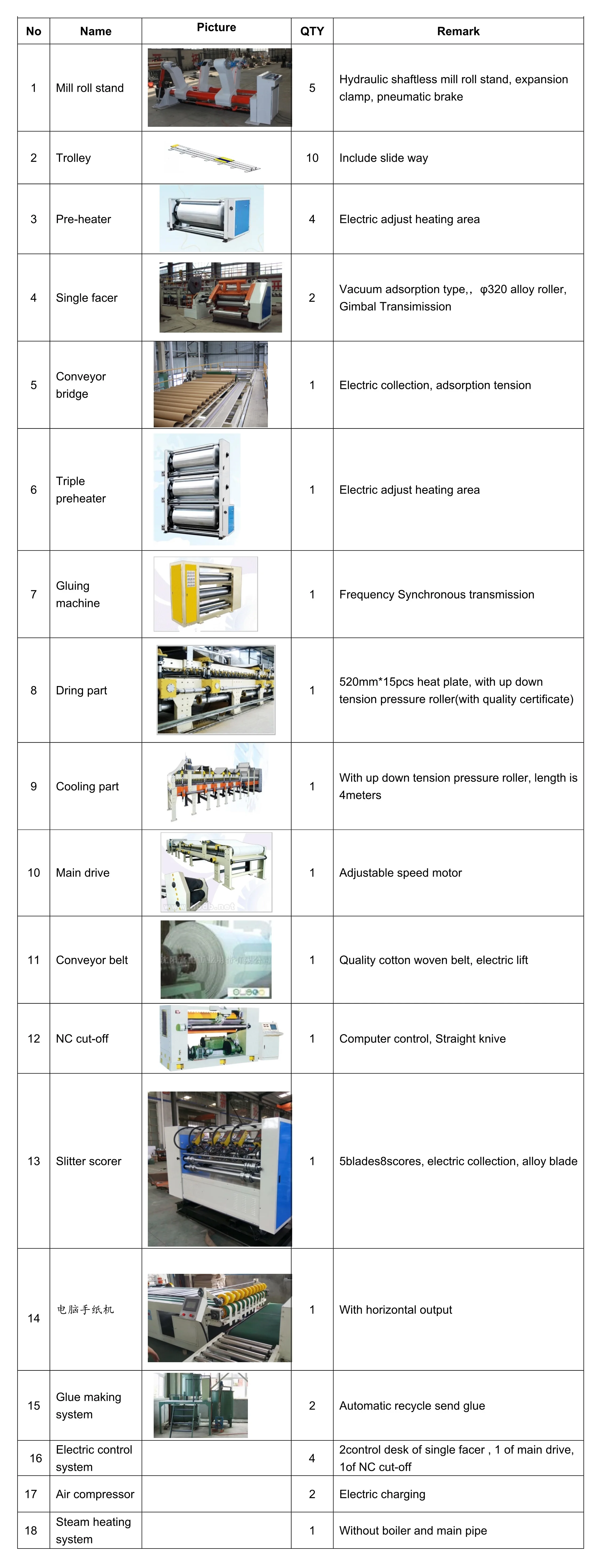

Equipment flow: according the customers' workshop to installation the machine
Note: Test basis paper for production line should meet follow requirements;
1. Basis paper scale ≥B
2. Basis paper moisture: 11%±1%
3. Liner 150-200g/m2
4. Medium paper 150---200g/m2
5. Corrugated paper 105-180g/m2

Note: some parts equipped by consumers
1. Heating system: one set steam boiler that rate capacity is 4000kg/h, rate pressure 1.6Mpa
2. Steam pipe and air return-air drainage duct.
3. Compressored air tupe, glue pipe, steam pipe and air return pipe
4. Water, electricity, gas installation ground work.
5. Equipment machine grease, lubrication oil, engine oil.
6. Test basis paper, corn(potatoes)starch, caustic soda for industrial use, Borax and other material

Related Products
1. Q: What is your delivery term? A: FOB,CIF,CFR usually. 2.Q: What is your payment? A: T/T.30% deposit, 70% balance before delivery. L/C. 100% at sight. T/T and L/C, 30% TT deposit, 70% L/C.3.Q: What is your delivery time? A: Die cutting machine, 30-40 days usually. If urgent, 15 days only. Paper cutting machine, 20-30 days usually. If urgent, 15 days only. 4.Q: What is your warranty and other terms? A: One year warranty. Spare parts are free for customer in 1 year, but customer have to pay delivery. We can send our engineer to customer factory for 7 days free installing and trainning, customer have to pay tickets, visa, meals and hotel. If need more training, $100.00 per day to our engineer.
