YJE1222
xinglong
New
Electric
1 Year
Provided
Ordinary Product
xinglong
Hebei,China
Video technical support
15kw
Provided

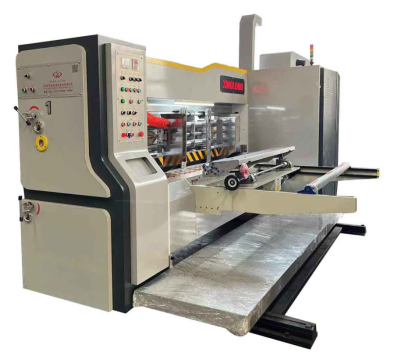

Economic Automatic Printing die cutting machine
Performance and Characteristics
1.The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
2.All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
3.Main drive gears adopt high quality steel with heat treatment with clean teeth treatment, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
4.The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
5.The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
6.The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
7.Main motor is VFD, working stability, low power consumption.
Main Technology parameters
Model | YJE920 | YJE1222 | YJE1424 |
Machine inside width (mm) | 2200 | 2400 | 2600 |
Max feeding paper siz(mm) | 900mm*2000mm | 1200mm*2200mm | 1400mm*2400mm |
Max effective printing size(mm) | 900mm*1800mm | 1200mm*2000mm | 1400mm*2200mm |
Min coverage size(mm) | 350mm*720mm | 350mm*720mm | 350mm*720mm |
Max effective die cutting size(mm) | 900*1900mm | 1200*2100mm | 1400*2300mm |
Design speed (pcs/min) | 150pcs/min | 140pcs/min | 120pcs/min |
Working speed (pcs/min) | 130 pcs/min | 120 pcs/min | 100 pcs/min |
Standard Thickness of printing plate | 4-6mm | 4-6mm | 4-6mm |
Printing precision | ±0.5mm | ±0.5mm | ±0.5mm |
Thickness of cardboard | 2-9mm | 2-9mm | 2-9mm |
Wall thickness | 40mm | 40mm | 40mm |
Main motor power | 15kw | 15kw | 15kw |
Lpi of anilox roller | 200/220/250 | 200/220/250 | 200/220/250 |
Machine Details
1.Feeding unit

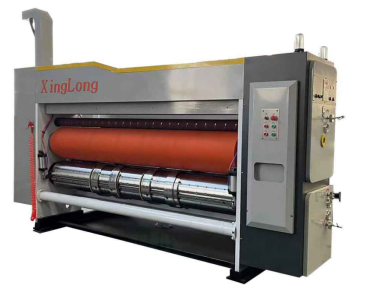

2.Printing unit
3.Die cutting unit+slotting knife

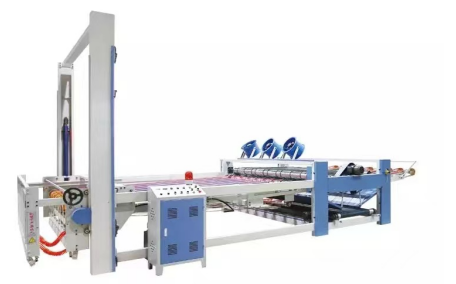

4.Vibrator and stacker unit (option)
