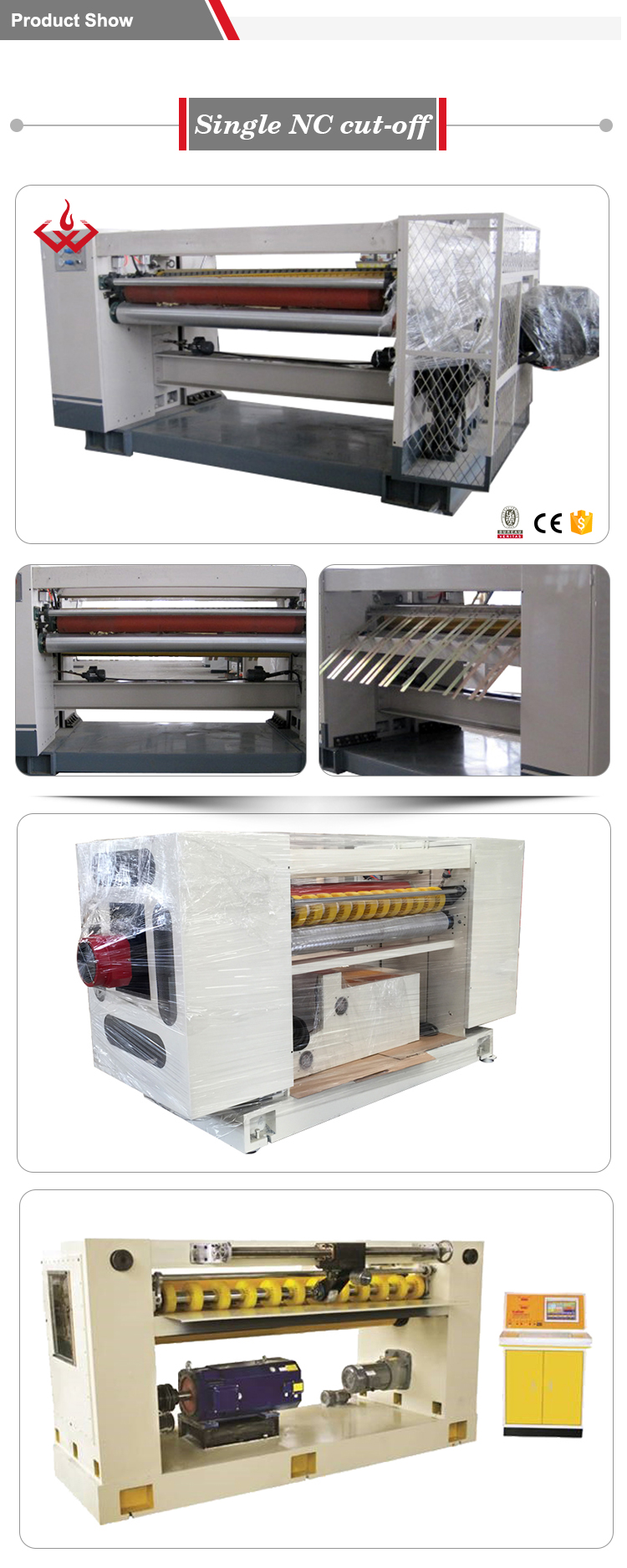

Helix Knife Crosscut Machine Single Nc Cut-off

Corrugated cardboard production line , NC cutt-off
Machine width:
Design speed:
Economy speed:
Cutting length:
Cutting precision:
Quantity:
  • NC Cutt-off
  • XINGLONG
  • NC Cutt-off

photobank (10)

photobank (1)

Function and features:

1. It adopts high quality AC servo motor, "KEB" servo driver from Germany, colorful touch screen.

2. PLC reserve groups of orders, HMI with 10 inch colorful screen displays production status; it can see, modify, add and cancel orders any time.

3. Main motor is out of machine, it adopts diaphragm coupling to connect main motor and main drive gear shaft.

4. The drive gear is made of 40Gr steel be quenched and tempered, surface be grined, gapless structure, spray lubrication.

5. The precise adjsutable gapless gear ensures accurate mesh, running balance.

6. The machine adopts helix serrated knife, reduce the resistance during cutting, low noise.

7. It adopts high speed steel plate blade with high hardness abd long using life.

8. Cutter shaft: high quality carbon steel roller be quenched and tempered, do dynamic balance with good stability.

9. Before and after feeding paper adopt frequency converter driven synchronous belt transmission adopts sun feeder press the paper, smooth delivery, uniform pressure, prevent destroy the cardboard or not smooth for delivery.

10. It adotps independent oil pump spread over supply oil, lubrication every gear.

11. Double gear superposition type backlash eliminator

12. Keyless locking device(power-lock) is adopted for Gear of knife and shaft connection, hard stable.


Main technology parameters:

Machine width

1600mm

Design speed

120m/min

Economy speed

100-130m/min

Cutting length

500-9999mm

Cutting   precision

±1mm(even speed)

Total power

 13.2 kw

Main material list:

NO.

Name

Material   specification brand

Original

Machinery

1

Wallboard

HT200 cast iron

Hebei,China

2

Base seat

HT200 cast iron

Hebei,China

3

Knife

W18Cr4V

Nanjing,China

4

Bearing

HRB or Chinese   famous brand

China

Electric motor

5

Touch screen

MCGS

Beijing,China

6

Servo driver

KEB

Power :

Germany

7

Main drive motor

AC Servo moto

Power:11kw

Futian,Shanghai

8

Output motor

Power

Hebei,China

9

Low-voltage   electric parts

"Chint" or   other famous brand

China



photobank

photobank (18)

photobank (15)

photobank (16)

photobank (14)

photobank (17)

FAQ:

Q:1.Are you a manufacturer, trading company or a third party?

A:We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.


Q:2. What is your minimum order quantity, can you send me samples?

A:Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.


Q:3. How does your factory do regarding quality controlling?

A:(1) All raw material we used are environmental-friendly.

    (2) Skillful workers care every details in handling the producing and packing process.

    (3) Quality control department are specially responsible for quality in each process.

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.


Q:4.What is the delivery time of your machine?

A:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.


Q:5.How about the after-sale service?

A:(1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

    (2) To solve the problems with videos/pictures.

    (3) One year warranty for spare parts change.


If you meet any other questions, please feel free to contact us.
