HRBTMJ-1300H Vacuum Sucking Semi-automatic Flute Laminator

  • Other

  • Manufacturing Plant, Food & Beverage Factory, Farms, Advertising Company

  • New

  • Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware

  • Cartons

  • Plastic, Wood

  • Semi-Automatic

  • Electric

  • 6kw

  • 380v 50hz

  • Hebei, China


  • about 3T

  • 8.8* 1.95* 1.5m

  • CE

  • Easy to Operate

  • Engineers available to service machinery overseas, Engineers available to service machinery overseas

  • HRBTMJ-1300H vacuum sucking semi-automatic flute laminator

  • 1300mm*1100mm

  • 360mm*360mm

  • 0-80 piece/min

  • ±1

  • 1 Year

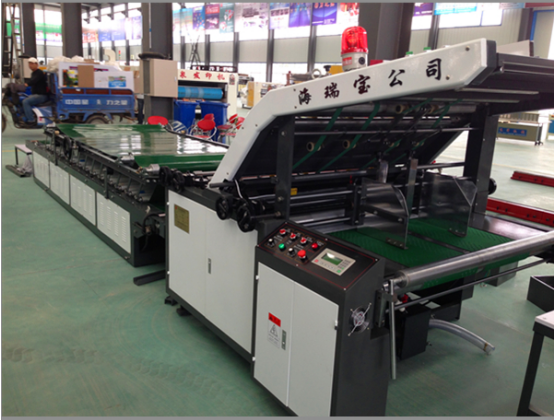

HRBTMJ-1300H Vacuum Sucking Semi-automatic Flute Laminator


Product Description

Major feature:The high speed, high accurate flute laminate which developed by our Company is the most advanced in our country.

This machine operation is stable, joint accurate, easy operation, need not skilled


This machine is used for making Print paper and bottom paper(card paper, corrugated paper)  match together accurately, then the paper level off, and high precision.

1. Feeding of high table, automatic feeding for bottom sheet, elastic front register, simple operation.

2. just need one person to feed the paper. It has low request to paper, suitable for laminating paperboard to bottom paperboard, ABCDE Flute corrugated cardboard. Even filmed paper can be laminated.

3. Top sheet forwarded by manual on high table and the sheet can be piled up to 1.8m.

4. Bottom sheet is automatically fed; the two sheets are piled freely; High efficiency
5. Advanced elastic front register is used for location, high register precision, bottom paper will never exceed. When laminating, it is very easy to make top paper and bottom paper alignment, or top sheet exceeded.
6. Fully automatic glue supply system: glue will be automatically supplied during lamination, and recovered, avoiding glue wasted.
7. Scientific design for linear speed of metering roller, avoiding glue thrown when high-speed running.
7. The whole machine adopts PLC control system, compared with other time-delay device or middle relay control, the bottom paper is transferred more precise and stable, furthermore, speed is greatly increased, and circiut breakdown can automatically display and alarm.
8. Clean the lower roller in gluing section by blade with circulated water, complete cleaning, convenient to replace the blade
9. Floating movable pressing section is adopted to make the laminated paperboard smooth. This section can be moved front and back to take in paper conveniently.

10.. Gear rach is used to control the lift of water tray, which is easily taken out for cleaning.

Technological parameter:





Max size of cover face




Min size of cover face




Economic speed

0-80 piece/min

0-80 piece/min

0-80 piece/min










8.8m x 1.95m x 1.5m

8.8m x 2.15m x 1.5m

8.8m x 2.25m x 1.5m


About 3T

About 3T

About 3T

Packaging & Shipping


Our Services

Company Information





1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.

2. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

   2) Skillful workers care every details in handling the producing and packing process

   3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

3. Q: What is the payment terms?

A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.

4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

   2) To solve the problems with videos/pictures.

   3) One year warranty for spare parts change.
