Good quality high efficiency 3 and 5 layer corrugated cardboard line

  • Packaging Line

  • Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop

  • Video technical support, Online support, Spare parts, Field maintenance and repair service

  • None

  • None

  • New

  • Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles

  • Cartons, Cans, Bottles, Barrel, Film, Foil, Belt

  • Plastic, Wood

  • Automatic

  • Electric

  • AC380V 50Hz 3PH

  • Hebei, China

  • Xinglong

  • Customized

  • About 130T

  • ISO9001

  • 1 YEAR

  • Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service

  • High Productivity

  • Ordinary Product

  • Provided

  • Provided

  • 1 YEAR

  • Gear, Engine

  • Good quality high efficiency 3 and 5 layer corrugated cardboard line

  • 150m/min

  • 100-120m/min

  • 1600-2200mm or customized

  • Customized

  • 3 and 5 layer

  • ±1mm

  • A, C, B, E(Depends on the customer's requirement)

  • steam

  • 90*10*5m

Product Description

1. Corrugated cardboard production line is the professional equipment for produce 3, 5, 7 layer cardboard.
2. This line mainly consists of Reel stand, single facer, pre-heater, conveyor bridge, gluing machine, double facer, thin blade slitter scorer, NC cut-off, stacker, glue kitchen, product manager system(options)
3. Automatic production line with high efficiency, good product advantage.
4. It is suit for large and middle carton manufacturing plant
Product Paramenters
1400, 1600, 1800, 2000, 2200, 2500mm
Design speed
working speed
heating type
Steam pressure and consumption
Pressure: 1-1.3Mpa
consumption: 2500-3200kg/h
Air pressure and consumption
Pressure: 0.8-1.0Mpa
consumption: 1.3m³/min
Total power
Installation power 300kw,
work power 200kw
About 85m×4.3m× 4.8 m (L×W×H)

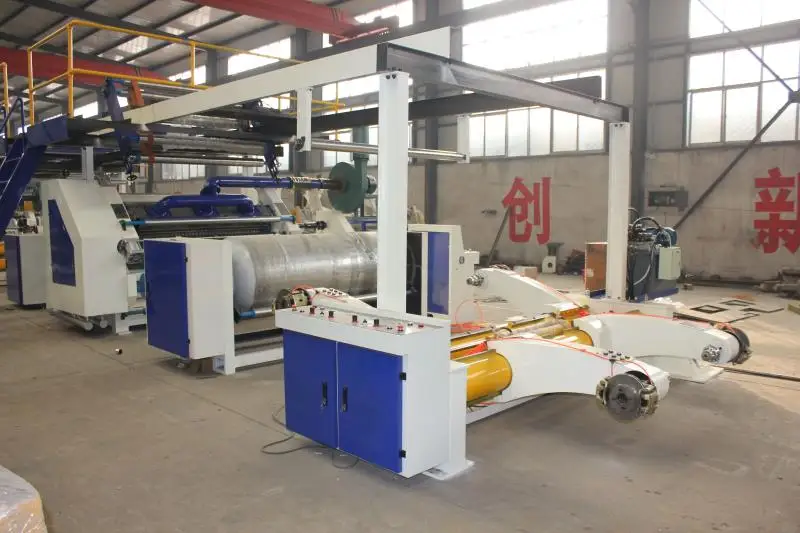

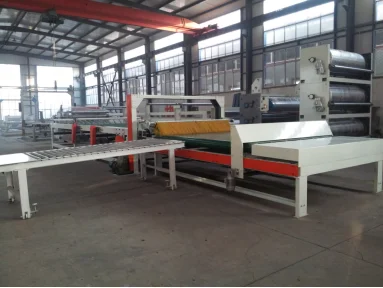

Detailed Images

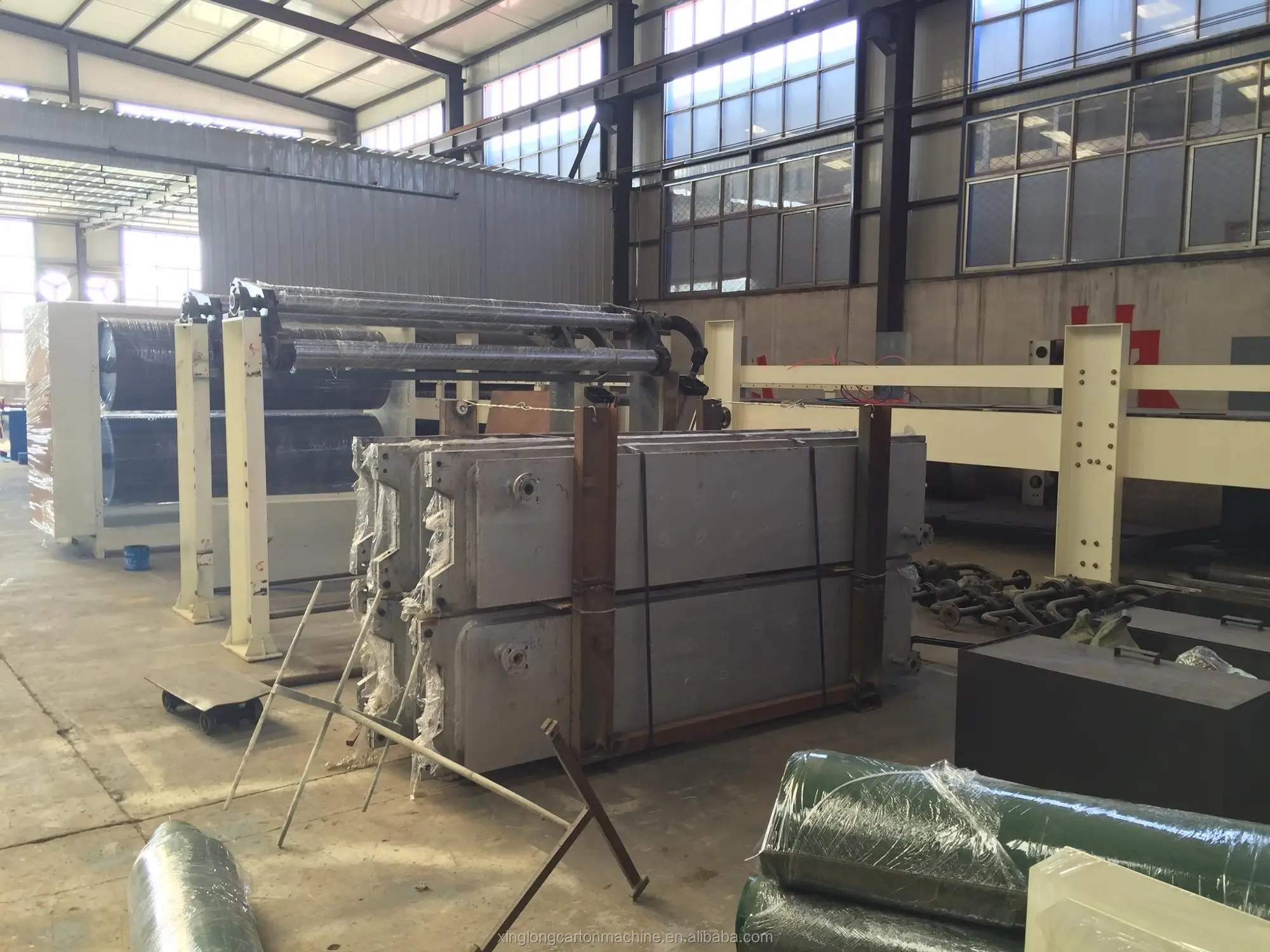

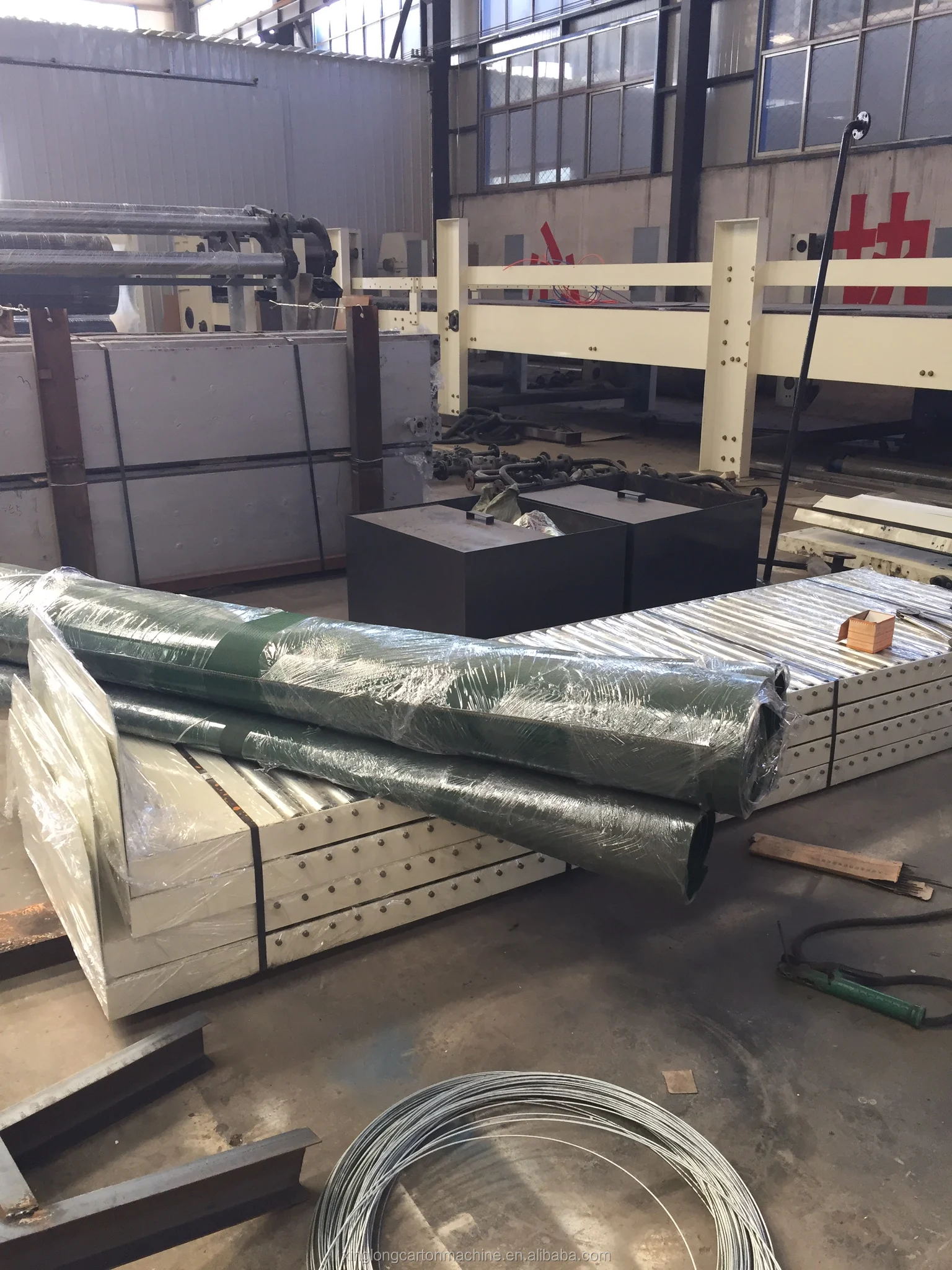

Packing & Delivery
Company Profile
Customer Photos
    1. Q: Are you a manufacturer, trading company or third party?

    A: We are a manufacturer, located in Dongguang county, Hebei province, China.

    Warmly welcome to visit our company

    1. Q: What is your minimum order quantity, can you send me samples?

    A: Our minimum quantity is 1 set, as our product is machinery equipment, it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

    1. Q: How does your factory do regarding quality controlling?

    A: 1) All raw material we used are environmental-friendly

    2) Skillful workers care every details in handling the producing and packing process

    3) Quality control department are specially responsible for quality in each process

    We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the middle east, Africa, Southeast Asia, EU, etc. Which earned us a high reputation among the customers.

    1. Q: How about the after-sale service?

    A: 1) TM online 24 hours, also contact by email, skype, wechat, whatsapp, etc.

    2) To solve the problems with videos/pictures

    3) One year warranty for spare parts change.
