GM-25
xinglong
Corrugated cardboard production line
Electric
China,Hebei
New
Optional
1 Year
Provided
GM-25 Gluer Machine
1. Machine Function:
After the glue roller surface quenched,tempered,ground and engraved pit,then doing balancing,making coating evenly, consume less glue
Glue roller controlled by frequency motor , the inverter control ensures glue line speed is synchronous with double facer, and can also operate independently
Plc control the glue amount,automatically adjusted according to the production speed Automatic circulation for glue, avoiding glue precipitation
Pneumatic presses paper structure, adjust the gap by the electric
Measure the speed signal of the double facer to achieve synchronous operation
Man-machine interface display, easy to operation

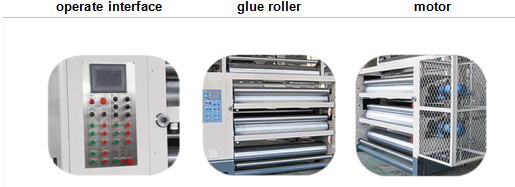

2. Main Components:
3. Machine Technical Parameter:
Working Width | 1800-2500mm |
Speed | 80m-200m/min |
Steam Pressure | 0.8-1.3Mpa |
Glue roller | Φ318mm |
Doctor Roller | Φ153mm |
Paper roller | Φ86m |
Glue rollers frequency motor | 5KW |
Glue quantity adjustment motor | 250W |
Motor for adjusting the Gap | 250W |
Glue pump motor | 2.2KW |
GM-25 Gluer Machine
1. Machine Function:
After the glue roller surface quenched,tempered,ground and engraved pit,then doing balancing,making coating evenly, consume less glue
Glue roller controlled by frequency motor , the inverter control ensures glue line speed is synchronous with double facer, and can also operate independently
Plc control the glue amount,automatically adjusted according to the production speed Automatic circulation for glue, avoiding glue precipitation
Pneumatic presses paper structure, adjust the gap by the electric
Measure the speed signal of the double facer to achieve synchronous operation
Man-machine interface display, easy to operation
2. Main Components:
3. Machine Technical Parameter:
Working Width | 1800-2500mm |
Speed | 80m-200m/min |
Steam Pressure | 0.8-1.3Mpa |
Glue roller | Φ318mm |
Doctor Roller | Φ153mm |
Paper roller | Φ86m |
Glue rollers frequency motor | 5KW |
Glue quantity adjustment motor | 250W |
Motor for adjusting the Gap | 250W |
Glue pump motor | 2.2KW |
