Globally served 5 ply machine for making box cardboard

Quantity:
  • Packaging Line, machine for making box cardboard

  • Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail

  • Video technical support, Online support, Spare parts, Field maintenance and repair service

  • None

  • None

  • New

  • Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles

  • Cartons, Cans, Bottles, Barrel, Film

  • Plastic, Wood

  • Automatic

  • Electric

  • AC380V 50Hz 3PH

  • Hebei, China

  • Xinglong

  • Customized

  • About 130T

  • ISO9001

  • 1 YEAR, One year

  • Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas

  • Remote Control

  • Ordinary Product

  • Provided

  • Provided

  • 1 YEAR

  • Gear, Engine

  • High performance 5 layer fruit carton box making machine

  • 150m/min

  • 100-120m/min

  • 1600-2200mm or customized

  • Customized

  • 5 layer

Globally served 5 ply machine for making box cardboard
Product description

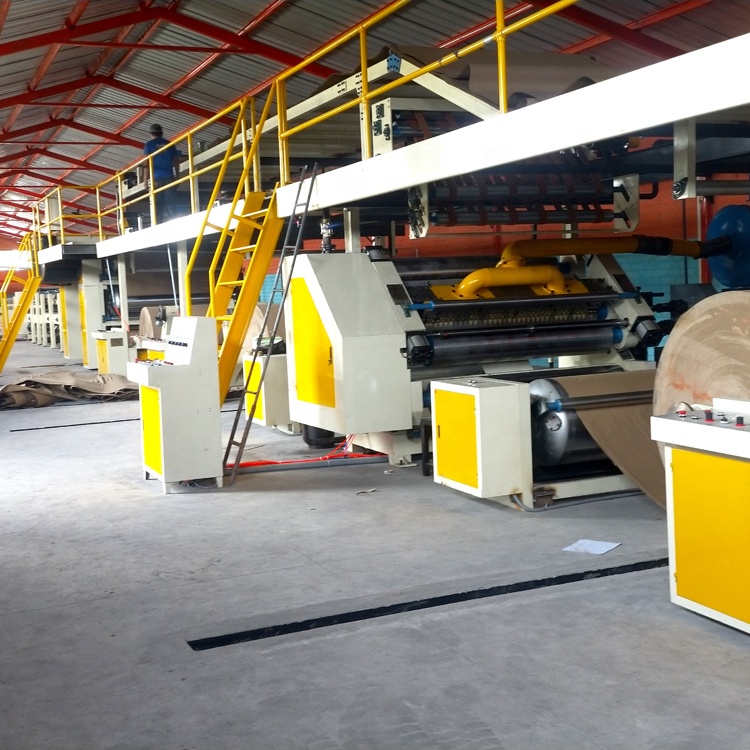

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .The production line consists of the Mill Roll Stand, liner(medium paper ) Pre-heater, Single facer machine ,Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker, Heating System ,Air compression system and Glue Making System and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.
Main equippment list
No. Machine name Remarks
1 Mill roll stand Full hydraulic control, pneumatic control brake, inner expansion chuck, hydraulic station adopt Taiwan product, multiple point tension control.
2 Railing and track Include railing and track.
3 Pre-heater Diameter 1000mm, electric adjust wrapping angle
4 Single facer Corrugating roll diameter 360mm, adopt 48CrMo alloy steel, main bearing adopt Japan NSK brand,gluing part could level move out from machine,gluing holder adopt stainless steel,according to the speed PLC automatic adjust the glue thickness.
5 Pre-conditioner Diameter 1000mm, electric adjust wrapping angle
6 Single layer bridge conveyer Frequency adjust wind adsorption, electric correct error device.
7 Pre-heater Diameter 1000mm, electric adjust wrapping angle
8 Gluing machine Gluing roll diameter 318mm,main beating adopt Japan NSK brand,stainless steel glue plate, according to the speed PLC automatic adjust the glue thickness.
9 Double facer Heating plants 600mm×20sets,surface do treated and chromed, pneumatic tension, hydraulic lift-down, include cotton belt
10 Main drive Independent reducer box, gimbal driving.
11 NC slitter scorer Changing order time 8-10 seconds,computer type, 6 blade 10 scorer.
12 NC cutoff adopt Germany servo driver
13 Gantry Stacker Belt level output,transmit two parts.
14 Glue making system Include main pot 1 set, carrier pot 1 set, and storage pot 2set, include glue station pump, single facer glue pump and gluing machine glue pump. Circle supply glue, pipeline provided by customer
15 Pneumatic system Include steam-water separator and gas storage pot, pipeline and air-compressor supply by customer.
16 Electric system Whole line main motor frequency adjust speed, electric part adopt ABB or Schneider product, Motor and reducer adopts Taiwan Teco product, imported transducer.
17 Steam system Adopt imported brand valve and drain valve, pipeline provided by customer

1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.

2. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

3. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

2) Skillful workers care every details in handling the producing and packing process

3) Quality control department are specially responsible for quality in each process

We have more than 20 years manufacturing experience of different kinds of box making machines in China. We strictly manufacture and manage according to ISO9001:2000 System and match all the CE standard or stricter standard. Our machine is running well in more than 20 countries. If there have any quality problems, We will help you at any time.

4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

2) To solve the problems with videos/pictures.

3) One year warranty for spare parts change.

If you meet any other questions, please feel free to contact us. click here
