Fully automatic three in one 3 5 ply flute laminator machine

The fully automatic multi layer flute laminator is consists of automatic face paper lifting section,face paper conveying section,double bottom paper synchronized or asynchronized conveying section,double bottom paper positioning section,cyclic gluing section,pressing section,delivering section and automatic collecting section.It suits to laminate the printed paper to the corrugted board or cardboard which is thicker than 350gsm,with features of high precision and high speed.It is the ideal laminating machine for all kinds of packaging company domestic and overseas.

Availability:

Quantity:



Inquire Add to Basket

Model:
1450F
Brand:
xinglong
Type:
Full auto three in one 3 5 ply laminator
Automatic Type:
Automatic
Brand name:
Xinglong
Key Selling Points:
Easy to Operate
Video outgoing-inspec:
Provided
Marketing Type:
Ordinary Product
Condition:
New
Driven Type:
Ordinary Product
Place of Origin:
Hebei,China
Machinery Test Report:
Provided

Product Description

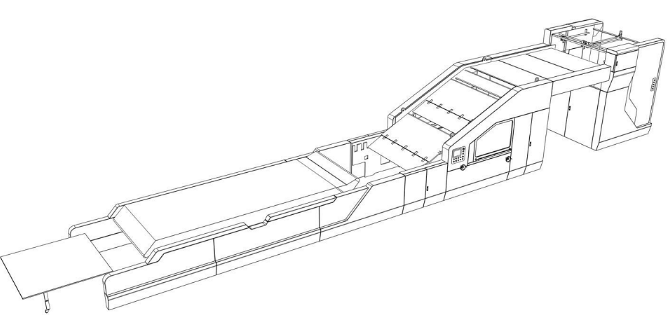

AUTOMATIC 5PLY FLUTE LAMINATOR MACHINE

全自动多功能贴面机

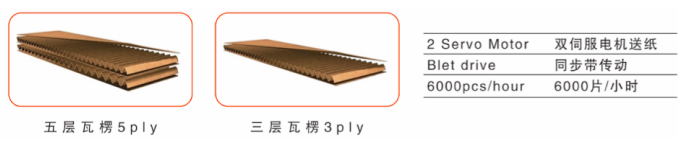

1 MACHINE CAN DO

3PLY/4PLY/5PLY

3 lN 1

Specification

Model	1300F	1450F	1600F
Max paper size	1280×1100mm	1430×1100mm	1580×1100mm
Min paper size	500×500mm
Face paper thickness	150-600gsm
Bottom paper	A/B/C/E/F/G 2ply flute
Precision	1.5mm
Max Speed	6000pcs/h
Height of face paper pile	1600mm
Face paper table capacity	1500kg
Height of bottom 2ply pile	400mm
Total power	20kw
Dimension	15×2.2×2.6m	15×2.4×2.6m	15×2.5×2.6m
Machine weight	5000kg	5500kg	6000kg
