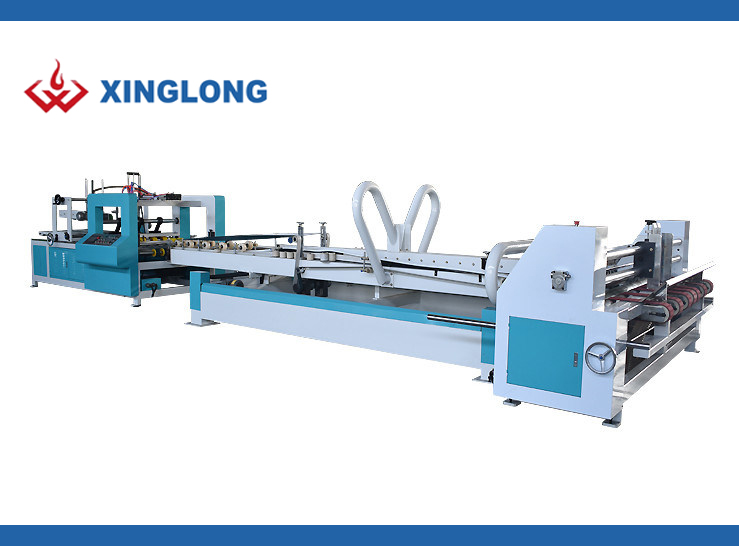

Full automatic folder gluer machine for corrugated carton box making machine press pasting box machine

Share to:

Full automatic folder gluer machine for corrugated carton box making machine press pasting box machine

Availability:

Quantity:


Inquire Add to Basket

Type: Gluing Machine
Applicable Industries: Manufacturing Plant, packaging
Condition: New
Application: Machinery & Hardware, packaging
Packaging Type: Cartons
Packaging Material: Paper
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380v
Place of Origin: China,HeBei
Brand Name: XINGLONG
Dimension(L*W*H): L12500*W3000*H1600
Weight: 1T
Certification: CE,ISO9001:2008
Warranty: 1 YEAR
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points: Long Service Life
Model: ZXJ-Q-2600
Max cardboard size: 1200*2400
Min cardboard size: 170*450
Dimension: L12500*W3000*H1600
Motor power: 10kw
Machine weight: 5500kg
Application board thickness: 3layer or 5layer

Product Description

Product Description

Machine instruction:

The machine includes feeding part, gluing and folding part, counting and stacking part. Digital control, PLC adjust width（optional，Conventional models without）, double frequency motor working synchronous, control easy, fast, accurately. Feed, glue folder, count and stack automatically, high speed, save labor cost.

PARAMETER
Model	ZXJ-QⅠ2600	ZXJ-QⅠ2800	ZXJ-QⅠ3000
Max cardboard size	1200×2400	1200×2600	1200×2800
Min cardboard size	170*450	170*450	170*450
Dimension	L12500×W3000×H1600	L12500W3200H1600	L12500W3400H1600
Motor power	10kw	12kw	12kw
Machine weight	5500kg	6500kg	7500kg
Application board thickness	3layer or 5layer

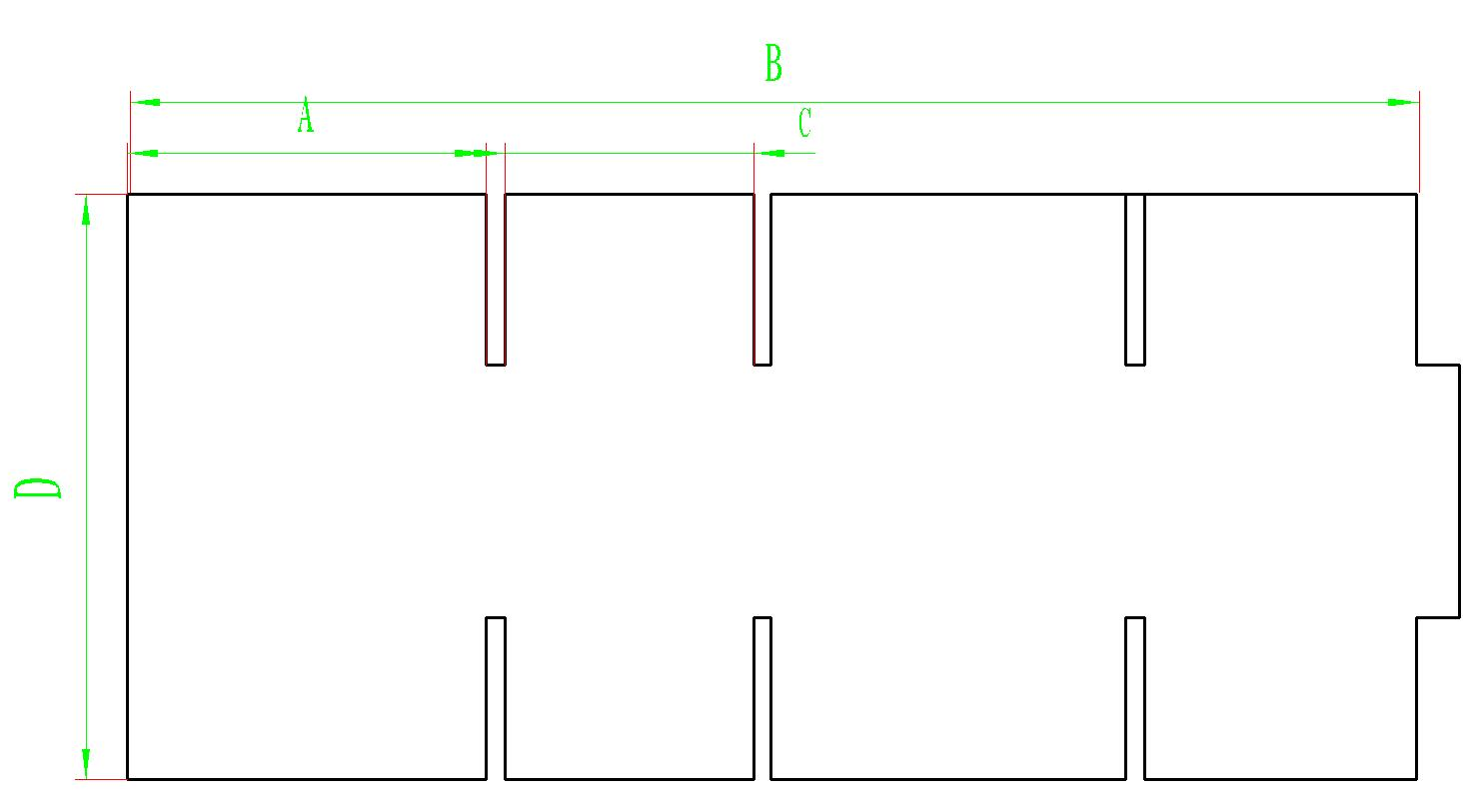

The Carton Size of the machine can process

Carton Size
Model		ZXJ-QⅠ2600	ZXJ-QⅠ2800	ZXJ-QⅠ3000
A	Max	880mm	880mm	880mm
A		Min	80mm	80mm	80mm
B	Max	2400mm	2600mm	2800mm
B		Min	700mm	700mm	700mm
C	Max	840mm	840mm	840mm
C		Min	160mm	160mm	160mm
D	Max	1200mm	1200mm	1200mm
D		Min	300mm	300mm	300mm

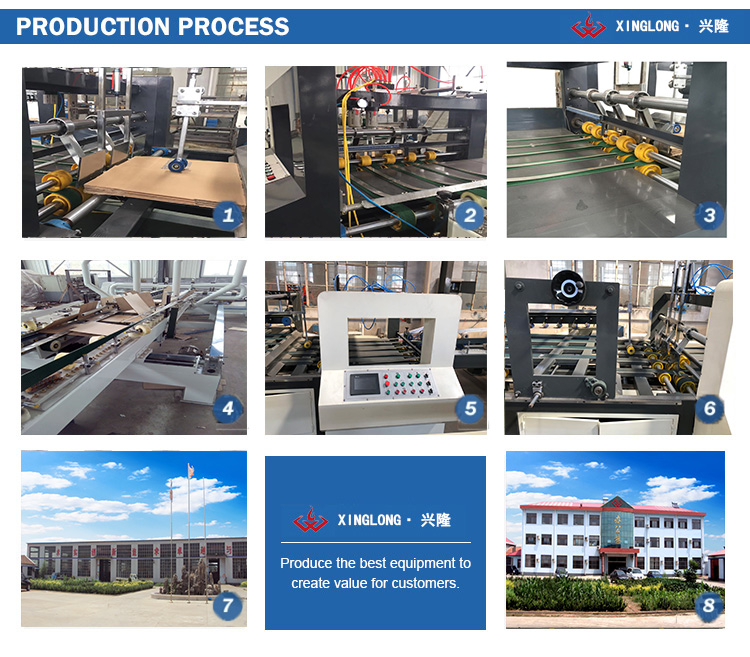

Function and Trait

Feeding part Adopt belt lead edge feeder with suction, working accurately.  Adopt high grade electromagnetic clutch and brake system, feeding part can be controlled separately, easy operation  Height of press wheel is be adjusted , suitable sheet thickness 2-8mm Use frequency motor working with folding part together, feeding speed 0-150m/min Front baffle and belt is be moved

Glue and fold part Frequency motor, no noise, speed adjustable fast and stable Use import high friction belt feed sheet, stack automatically.  Use stainless steel wheel gluing, glue amount average, no fault and save glue Fold part equipped with correction and crease device Fold part equipped with two row adjustable guide wheel, high precision Fold speed 0-150m/mi

Count and stack part Automatic stacking, output tidiness counting part with frequency motor, speed adjustable, working stable Belt feed out carton, stack tidiness, speed 0-130m/min Lapping plate beat carton, correction, small error.  Count and feed out by pneumatic work, PLC control, fast and accurately Use PLC and touch screen, easy work, it can input data non stop machine, count automatically. Feed out part equipped with bottom out belt and upon press belt, press synchronously, carton glue firmly, tidiness no mismatch.

Related Products

After Sales Service

●We can send engineers to users factory install machine and traininng.

● we will provide layout, elecric drawing and related documents

● warranty: 1year

FAQ

1. Q: What is your delivery term? A: FOB,CIF,CFR usually. 2.Q: What is your payment? A: T/T.30% deposit, 70% balance before delivery. L/C. 100% at sight. T/T and L/C, 30% TT deposit, 70% L/C.3.Q: What is your delivery time? A: Die cutting machine, 30-40 days usually. If urgent, 15 days only. Paper cutting machine, 20-30 days usually. If urgent, 15 days only. 4.Q: What is your warranty and other terms? A: One year warranty. Spare parts are free for customer in 1 year, but customer have to pay delivery. We can send our engineer to customer factory for 7 days free installing and trainning, customer have to pay tickets, visa, meals and hotel. If need more training, $100.00 per day to our engineer.
