Folder gluer machine/corrugated carton semi-auto gluing machine

Quantity:
  • Other, Folder gluer machine/corrugated carton semi-auto gluing machine

  • New

  • Apparel, Beverage, Chemical, Machinery & Hardware, Medical, Food, Commodity, Textiles

  • Film, Case

  • Plastic, Wood

  • Semi-Automatic

  • Electric

  • 380v50hz customized

  • about 8kw

  • Hebei, China

  • Xinglong

  • about 2T

  • customized

  • CE certification

  • optional

  • 60pcs/min

  • container

  • one year

  • Engineers available to service machinery overseas

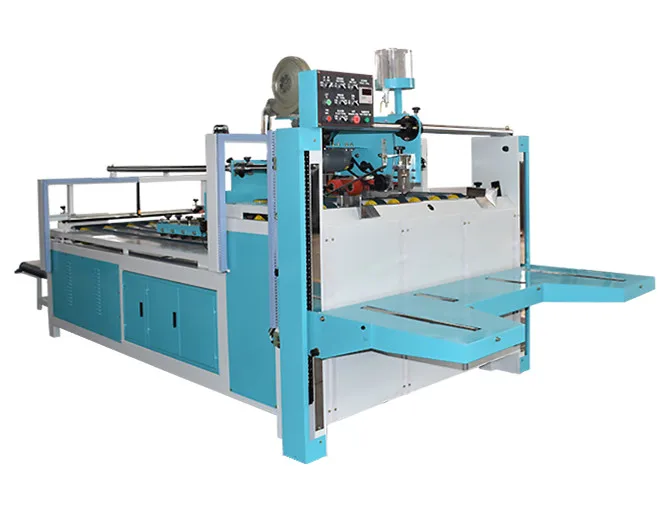

Folder gluer machine/corrugated carton semi-auto gluing machine

Function and Characteristics:

This machine is the last process equipment of the carton folding, it is used to combination of 3 and 5 layer corrugated cardboard production line( if need to glue 7 layer cardboard, we also can produce according customers’ appointed). Efficiency and production is attractive. The prominent advantage is low cost , strong adhesion, simple operating, saving labor and electric, runs smoothly, it is idea equipment for exporting advanced carton..

1. Working table

Photoelectric control the feeding, reduce labor and improve work efficiency.

2. Press correction

After gluing and the second pressing to the bonder is smooth and firm.

Equipped automatic correction device to make the carton size is correctly, and effectively avoid knife and fork phenomenon

Fan airing function

Counting output devices and with the photoelectric correlated mechanism, When reaching to the const carton, it outputs automatically.

3. Horizontal Output

Press counting output signal, then work automatically, stacking and strapping conviently.

4.Main spare parts

Gear reducer is known brand from China

Electricity components from “Chint”

Conveyor belt is made in XINBEX

PLC from Delta.

The whold gluing head usd of imported material with finish process, wear-resisting, correction resisting, easy to clean.

Technology Parameter

Max size( length+ width)

2460

Min size( length+ width)

340

Max size(width+ height)

1515

Min size( width+ height)

240

Height of feeding paper

900

Motor power

4

The length of Machine

4500

The Width of Machine

2100

The weight of Machine

2000

Machine speed

40

Dimension(mm) length×width×height

4000×2000×1900
