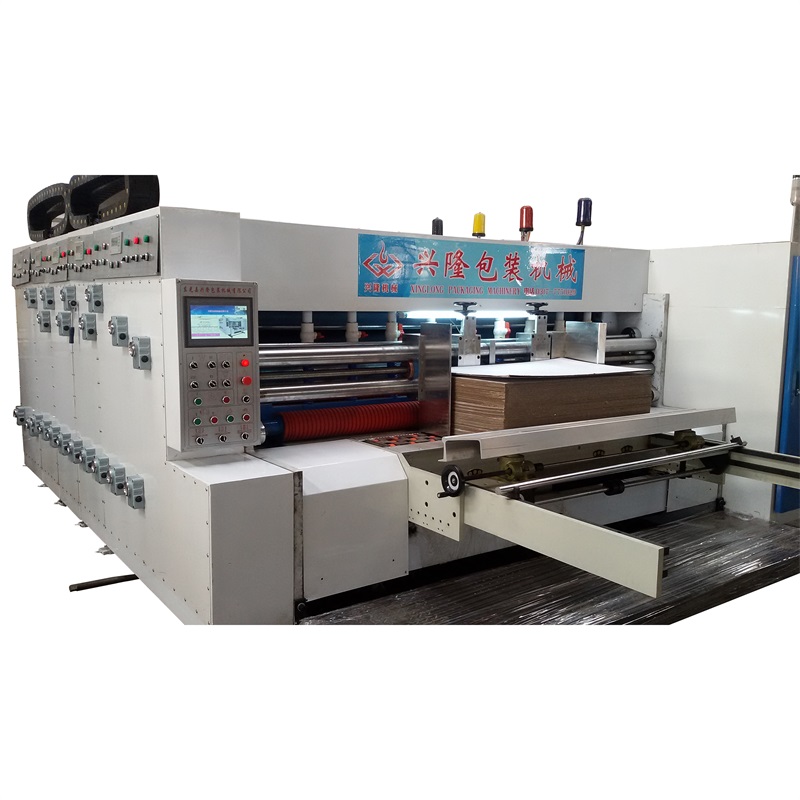

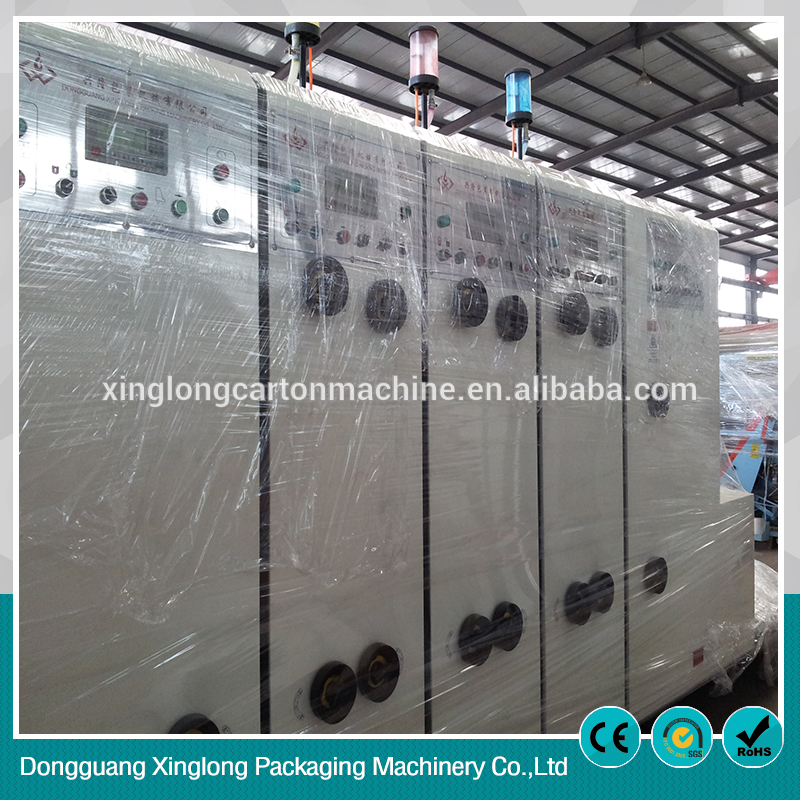

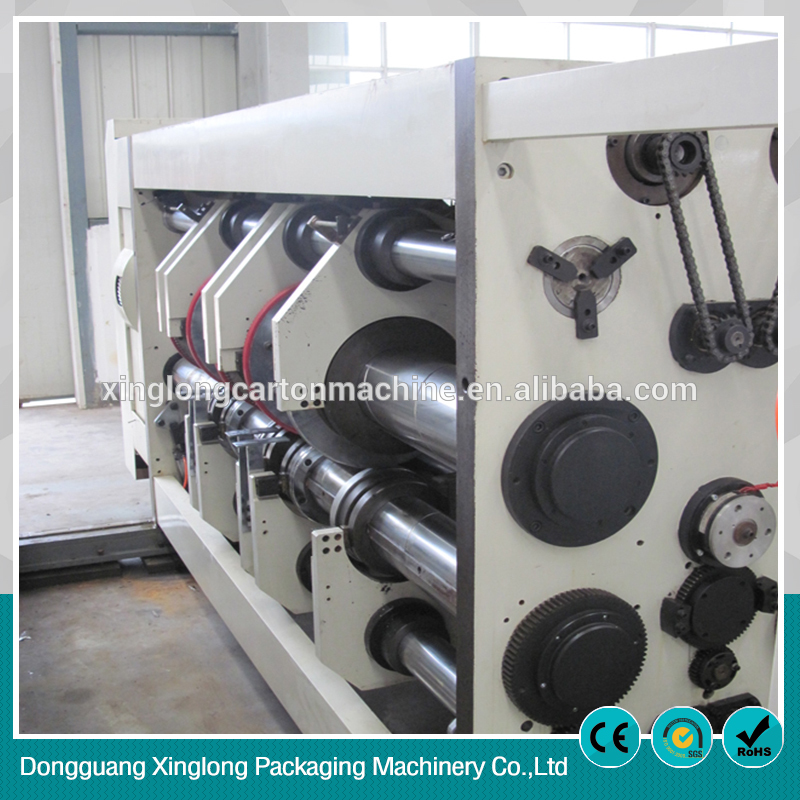

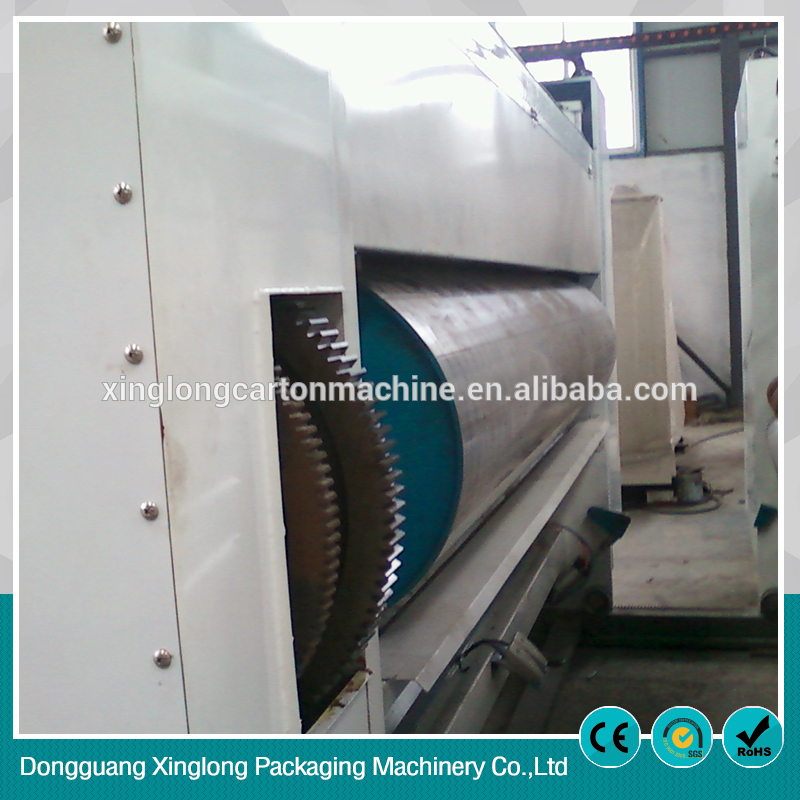

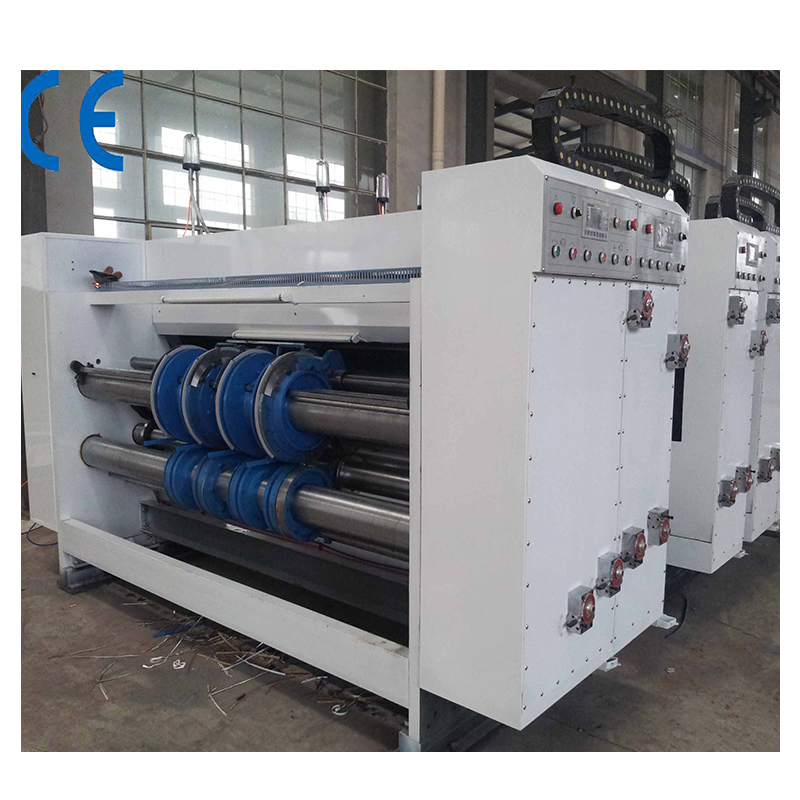

Five color automatic printing slotting machine
Function and characteristics:
1. The electric appliance of a whole machine adopt the product of SCHNEIDER made
in FRANCE.
2. Adopting helical gear driving, the gears are made from high frequency quenching
and polishing-gear.
3. All the axles of roller must be chrome-plating in order to increase the hardness.
4. The gears adopt shower type circular lubricating.
5. This machine adopts PLC touching screen control, adopts frequency Converter,
rightly and truly.
6. Automatically changes return zero and correct the plate position.
7. Adopting the mould unit designing, the multi-color printing unit can be combined
and linked in any way.
8. The side baffle plate of the feeding department and the grooving department are
adjust by electrically
9. Delivers the paper way to be possible to choose the predestined affinity to deliver
the paper system.
Main technology parameter:
Parameter | Model | ||
1300*2000 | 1300*2200 | 1300*2400 | |
Max.machinery speed (pcs/min) | 120 | ||
Economic printing speed (pcs/min) | 100 | ||
Max. sheet size (mm) | 1300*2200 | 1300*2400 | 1300*2600 |
Min. slotting space (mm) | 160*160*160*160 (Obverse knife) 280*80*280*80 (Reverse knife) | ||
Max. slotting depth (mm) | 320 | ||
Max. sheet thickness (mm) | 12 | ||
Max. printing area (mm²) | 1300*2000 | 1300*2200 | 1300*2400 |
thickness of standard printing plate (mm) | 6 | ||
3ply/5ply/7ply corrugated production line Customized speed single facer High speed automatic printer slotter
Shaftless mill roll stand Semi automatic gluer Semi automatic stitching machine
Multi color semi auto printer slotter Automatic rotary die cutting machine Rotary slotter grooving machine
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
3. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
