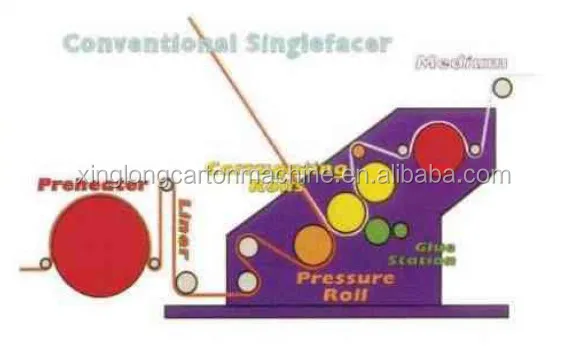

fingerless type single facer corrugated cardboard machine:
Technological Parameter:
* Effective working width: 1400mm to 2500mm
* Max machine speed: 60-180m/min
* Working pressure: 0.6-0.9Mpa Steam pressure: 0.9-1.3Mpa
* Steam consumption: 0.5-0.8t/h
* Working power: 380v 50Hz
* Dimension: 3600mm×2100mm×2100mm(length×width×height)
Equipment Characteristics:

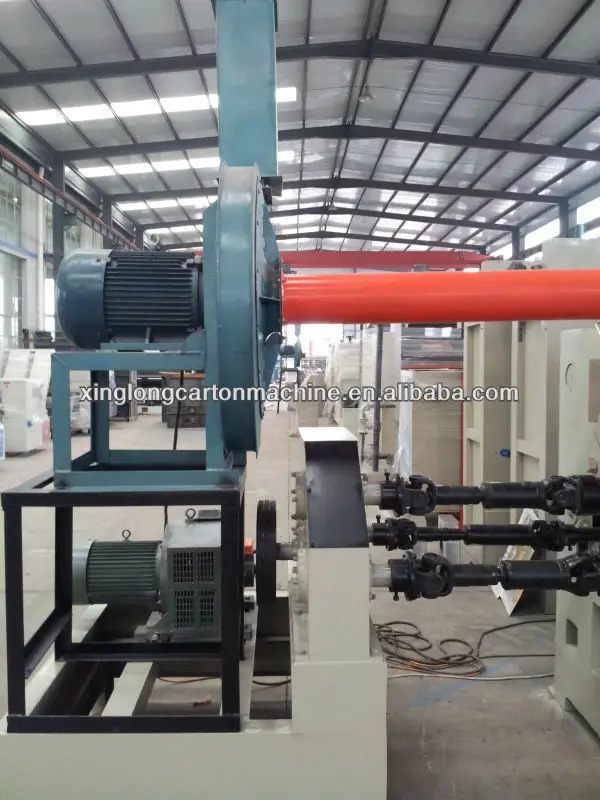

1. Adopt adsorption in order to transmit cardboard and keep corrugated stably.
Corrugated paper are adsorbed into corrugated roller through vacuum box by fans
and come into negative pressure zone to finish corrugated.
2. The width of low corrugated roller suction groove no more than 2mm, can reduce
corrugated cardboard stripe marks of single facer.
3. Cardan transmission, separating with vibration source, drive more stably, running reliable,
simple maintenance.
4. Reduction box adopts oil lubrication, close style gear transmission, reduce the machine vibration.
5. Adopt auto-cycle supplying glue, pneumatic gluing and resetting with buffered effect.
6. Glue roller surface be special anilox engraved and chrome plating.
7. Upper and lower corrugated roller are made of 48CrMo high quality alloy steel, after heat-
treatment. The rigidity is HRC56-60°,the surface are whetted and chrome plating.
8 Flute type: A flute height is4.7mm B flute height is2.75mm C flute height is3.75mm E flute height is1.8mm(or customers appointed)
Main Components Parameter:
1. Upper and lower corrugated roller are made of 48CrMo high quality alloy steel, after
heat- treatment. The rigidity is HRC56-60°,the surface are whetted and planting chorme.
2. Diameter of upper corrugated roller:φ318mm
Diameter of low corrugated roller:φ320mm Origin: HEBEI
3. Diameter of pressure roller:φ 340mm
Pressure roller are made of No.45 seamless steel pipe that are treated by quenching.
4.Diameter of gluing roller:φ 240mm
Surface are treated with special anilox embossing and chrome plated.
5. No.45 Seamless steel pipe made in CHENGDU
6. Diameter of picking glue roller:φ 120mm
No.20 seamless steel pipe made in CHENGDU
7. Diameter of preheating roller:φ400mm 20g steel made in JINAN Iron and steel company wall thickness: 20mm

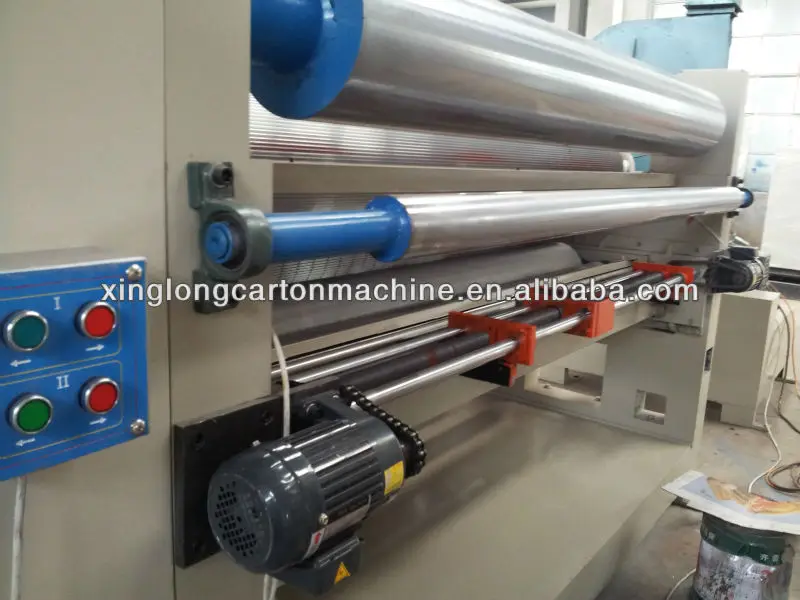

fingerless type single facer corrugated cardboard machine:
Technological Parameter:
* Effective working width: 1400mm to 2500mm
* Max machine speed: 60-180m/min
* Working pressure: 0.6-0.9Mpa Steam pressure: 0.9-1.3Mpa
* Steam consumption: 0.5-0.8t/h
* Working power: 380v 50Hz
* Dimension: 3600mm×2100mm×2100mm(length×width×height)
Equipment Characteristics:
1. Adopt adsorption in order to transmit cardboard and keep corrugated stably.
Corrugated paper are adsorbed into corrugated roller through vacuum box by fans
and come into negative pressure zone to finish corrugated.
2. The width of low corrugated roller suction groove no more than 2mm, can reduce
corrugated cardboard stripe marks of single facer.
3. Cardan transmission, separating with vibration source, drive more stably, running reliable,
simple maintenance.
4. Reduction box adopts oil lubrication, close style gear transmission, reduce the machine vibration.
5. Adopt auto-cycle supplying glue, pneumatic gluing and resetting with buffered effect.
6. Glue roller surface be special anilox engraved and chrome plating.
7. Upper and lower corrugated roller are made of 48CrMo high quality alloy steel, after heat-
treatment. The rigidity is HRC56-60°,the surface are whetted and chrome plating.
8 Flute type: A flute height is4.7mm B flute height is2.75mm C flute height is3.75mm E flute height is1.8mm(or customers appointed)
Main Components Parameter:
1. Upper and lower corrugated roller are made of 48CrMo high quality alloy steel, after
heat- treatment. The rigidity is HRC56-60°,the surface are whetted and planting chorme.
2. Diameter of upper corrugated roller:φ318mm
Diameter of low corrugated roller:φ320mm Origin: HEBEI
3. Diameter of pressure roller:φ 340mm
Pressure roller are made of No.45 seamless steel pipe that are treated by quenching.
4.Diameter of gluing roller:φ 240mm
Surface are treated with special anilox embossing and chrome plated.
5. No.45 Seamless steel pipe made in CHENGDU
6. Diameter of picking glue roller:φ 120mm
No.20 seamless steel pipe made in CHENGDU
7. Diameter of preheating roller:φ400mm 20g steel made in JINAN Iron and steel company wall thickness: 20mm
