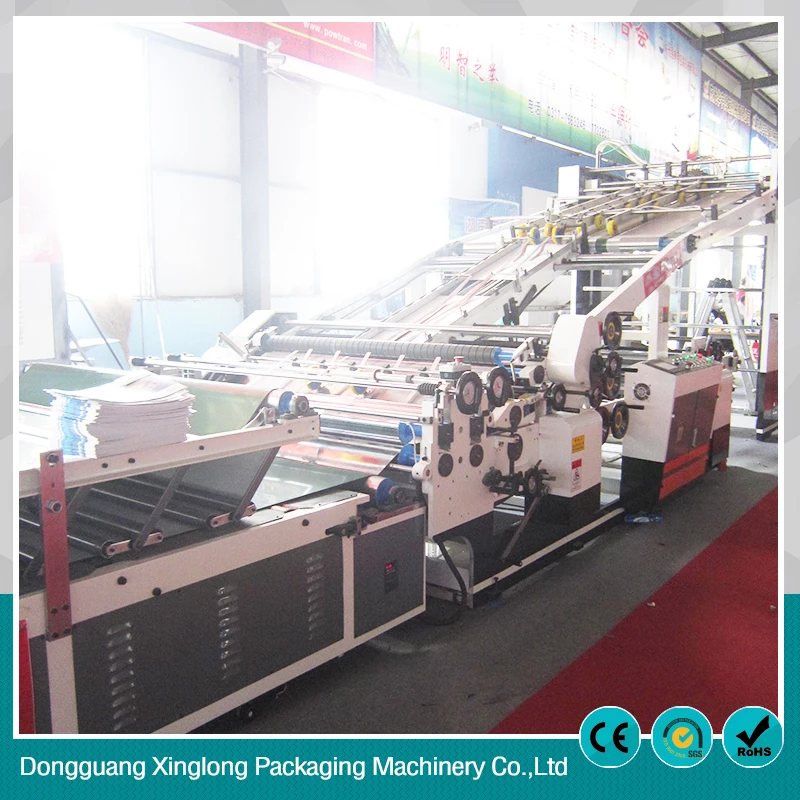

Fast speed easy operation flute laminator

  • Laminating Machine, flute laminator

  • New

  • Beverage, Commodity, Food, Medical

  • Cartons, cardboard

  • Plastic

  • Automatic

  • Electric

  • 380V/50HZ

  • 7KW

  • Hebei, China


  • XL-automatic laminating machine

  • 8m*2.15m

  • 4.8 Tons

  • CE Certification

  • Fast speed easy operation flute laminator

  • grey or customized

  • Famous brand

  • 1400*1100mm

  • 350*350mm

  • 0-90m/min

  • 8*2.15m

  • One year

  • For cutting cardboard

  • Engineers available to service machinery overseas

Fast speed easy operation flute laminator


  • Automatically send the end of the paper, the front push the paper , with easy and quick delivery , reduce labor intensity.
  • Pre-set the end of the paper never ahead , suitable for cardboard and cardboard paste , cardboard and A, B, C, D, E-type corrugated board fit.
  • At the end of paper, face paper before and after the fit, easy to paste.
  • For the glue system by the liquid level relay automatic control, adhesive layer thickness adjustable plastic uniform, saving glue dosage
  • Motor with stepless speed regulation, electromagnetic clutch with non-contact relay, trip position using photoelectric switch detection, electronic automatic counting and photoelectric automatic control.
  • High precision, paste the finish product with paper formation, neat edges, high strength, good rigidity and so on.
  • Electric car with high technical content, with automatic counting function.
  • The overall strucure is compact, beatiful appearance, high efficiency.


Max covering size 1400*1100mm
Min covering size 350*350mm
Speed 0-90m/min
Power 7kw
Size 8*2.15m
