Fast speed 1200mm E flute corrugated cardboard manufacturing line

Availability:
Quantity:
  • New

  • corrugated cardboard

  • Corrugated cardboard production

  • Hebei, China

  • XINGLONG

  • XL-3/5 ply carton machine

  • 220V/380V

  • 90-130kw

  • carton machine size customized

  • about 120Tons

  • CE

  • Fast speed 1200mm E flute corrugated cardboard manufacturing line

  • Optional

  • Corrugated cardboard production line/paper carton making machine

  • Container

  • 60-220m/min

  • 1200-2200mm

  • Steam, electric, thermal oil

  • A,B,C,E UV flute

  • 90-130kw

  • One year, 1 Year

  • Engineers available to service machinery overseas

Fast speed 1200mm E flute corrugated cardboard manufacturing line

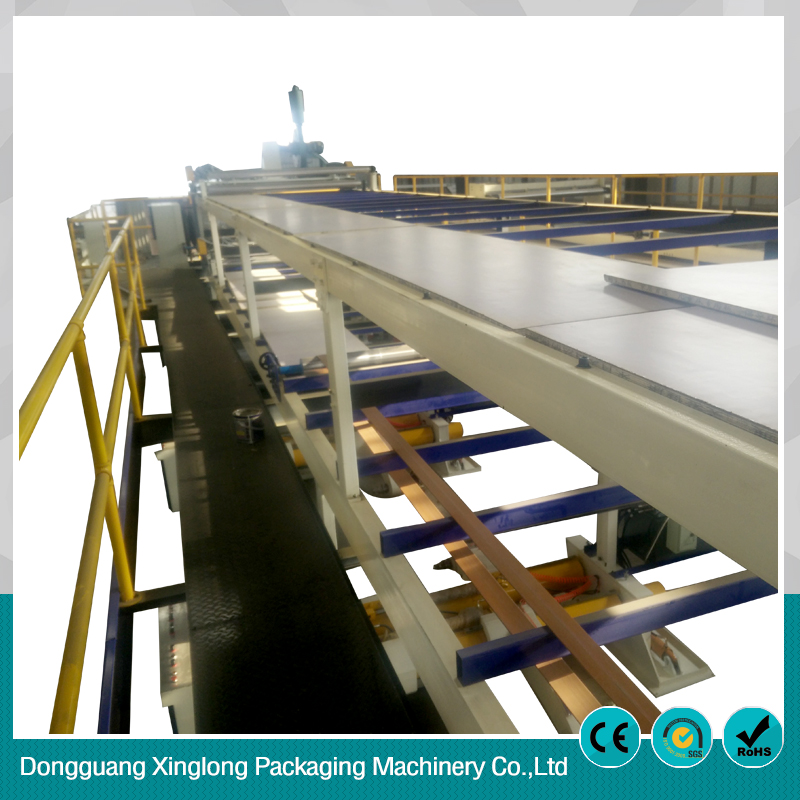

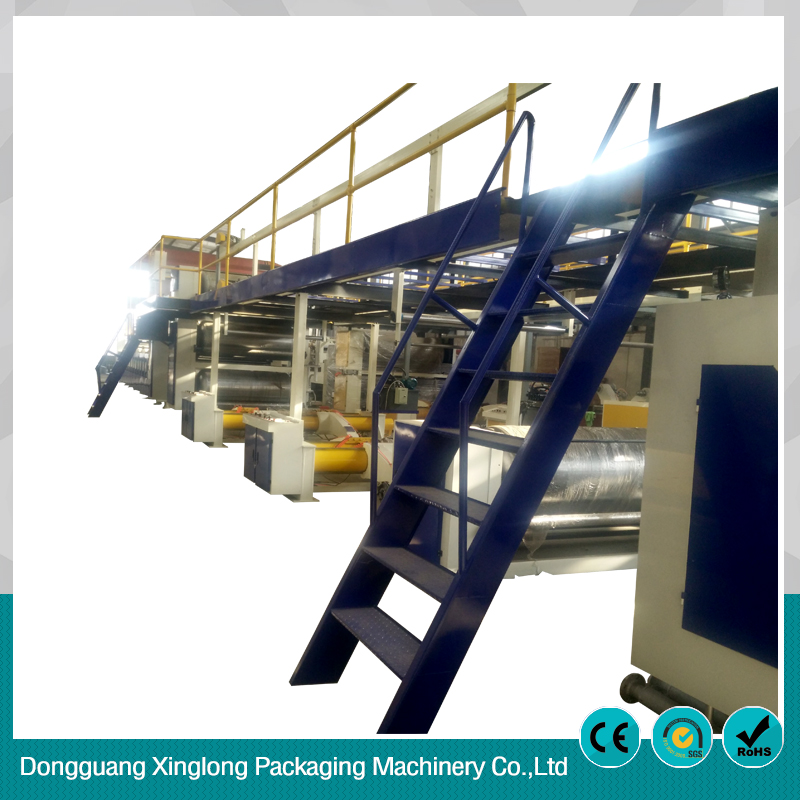

  Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .The production line consists of the Mill Roll Stand, liner(medium paper ) Pre-heater, Single facer machine ,Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker, Heating System ,Air compression system and Glue Making System and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.
Please contact us for the full version of video.

Main units:

No.

Name

Sets

Comment

1

Mill roll stand

Electric mill roll stand , expansion dop top, pneumatioc  brake

2

Single facer

vac-sorb,φ320  alloy roller  ,cardan drive

3

Feeding paper bridge

Electric adjust deviation,adsorb tension

4

Second gluing machine

Conversion synchronous control

5

Triply pre-heater

φ 800,electric wrap angle

(including qualification certificate )

6

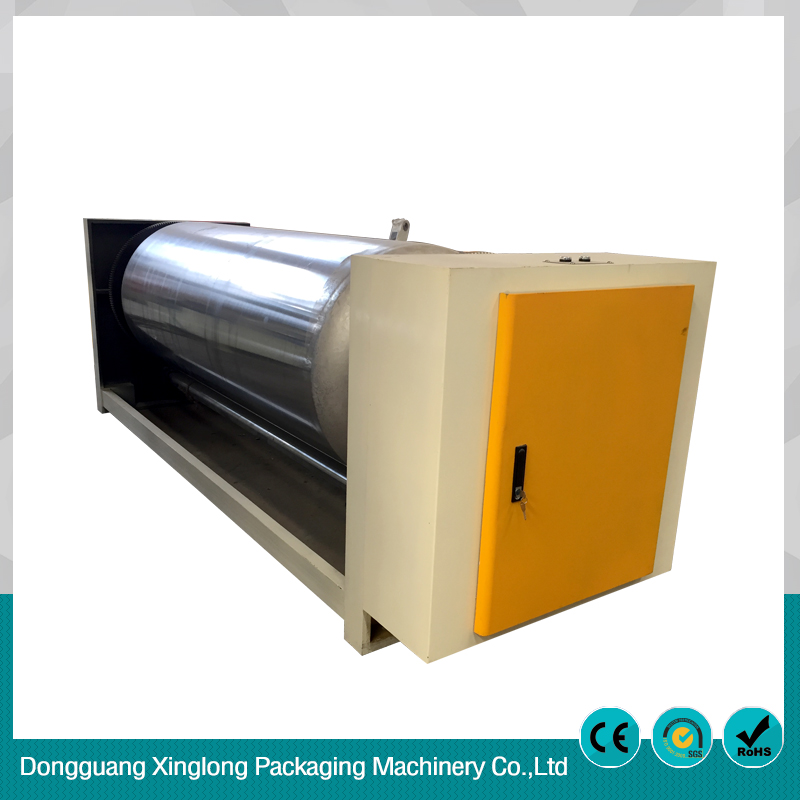

pre-heater

φ 800,land type electric wrap angle

(including qualification certificate )

7

Dry formed

part

520mm×18 pieces hot plate ,adopt Adopt up and down intensive roller(including qualification certificate )

8

Heat formed

part

Adopt up and down intensive roller ,length  8m

9

Feeding paper belt

High quality carton belt , electric promote

10

Thin blade slitter scorer machine

5 blade 8 line , electric Correct error , alloy blade

11

Corss cutter

Computer control cutting cardboard  length 500-9999mm;

cutting cardboard  precision ±1mm

12

Main drive

Main power 25KW

13

Make paste system

Barrel type ,electric stir circulate glue design

14

Stand feeding paper car

Include slipping  way

15

Pump

Electric  aeration

16

Electric system

One Operate cabinet ,one sinlge facer  1 main drive

17

Steam system

Not including heat source and pipe

18

Gantry stacker

Belt drive type

Please contact us for the full version of video.



   If you are also interested in the following product, please click the link for video.



3/5ply cardboard production line              Customized speed single facer                High speed automatic printer slotter



Multi color semi auto printer slotter                  Rotary die cutting machine                       Rotary slotter grooving machine



1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.


2. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.


3. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

   2) Skillful workers care every details in handling the producing and packing process

   3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.


4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

   2) To solve the problems with videos/pictures.

   3) One year warranty for spare parts change.
