Factory selling semi automatic rotary printing machine

Availability:
Quantity:
  • Inkjet Printer, rotary printing

  • New

  • Cardboard printer

  • Hebei, China

  • XINGLONG

  • XL-semi auto ink printing machine

  • Paper Printer, Cardboard printer

  • Semi-Automatic

  • Multicolor

  • 380V 50HZ

  • 7KW

  • 3000*800*1800mm

  • About 3000kgs

  • ISO9001

  • Factory selling semi automatic rotary printing machine

  • 1400*2200mm

  • 1400*2000mm

  • 350*500mm

  • 6mm

  • 80pcs/min

  • 40-60pcs/min

  • +/-0.5mm

  • 12 Months

  • Engineers available to service machinery overseas

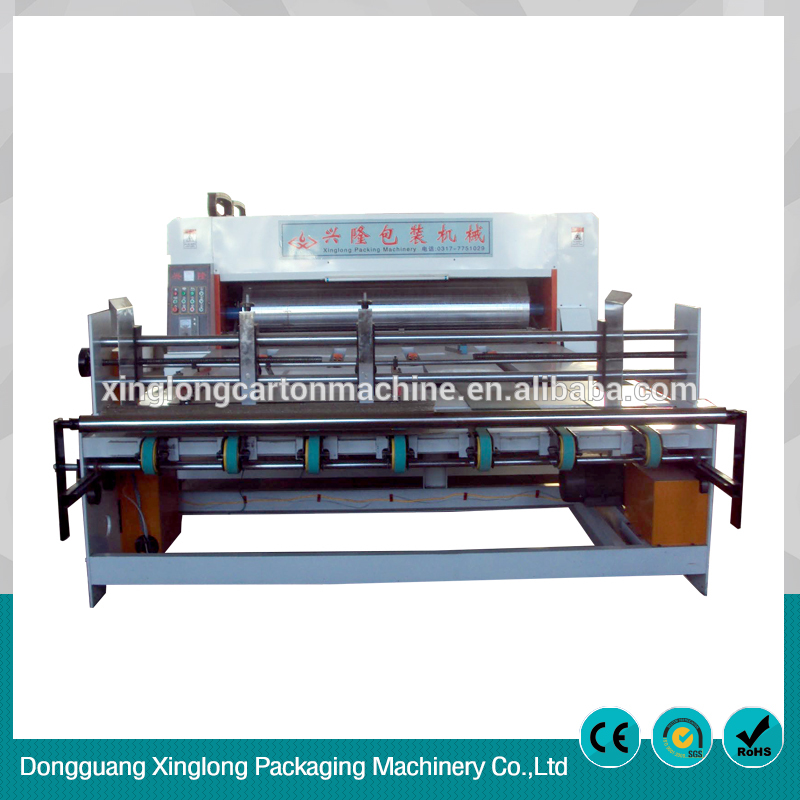

Factory selling semi automatic rotary printing machine

Description:

1. Chain type hand move feeding cardboard
2. Adopt 360 degree electric ensure and adjust position ,while working or stop can be adjust quickly and accurately
3. When machine stopped working ink roller can automatic separate with printing roller facer in order to protect it ,
4. Ink roller have the separately turn device to prevent ink dried when machine stopped working
5. Adopt pneumatic locking ,electric separation
6. Ink supply by pneumatic diaphragm pump

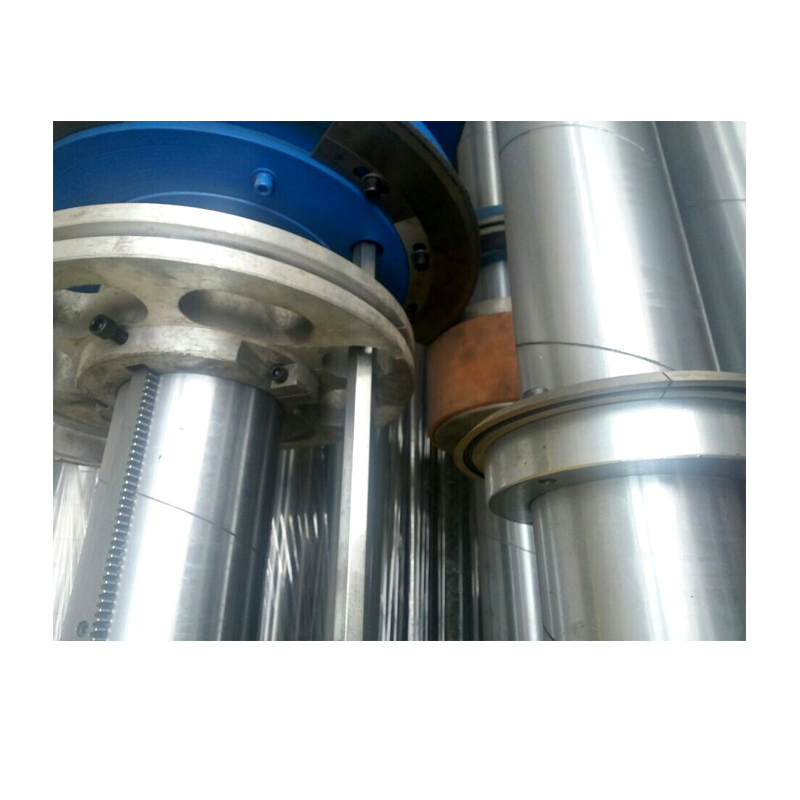

7. Main transmission gear made by 45 steel after high frequency quench
8. Transmission part adopt sprinkle lubricating system ,ensure the machine precise and long use time .

Technological parameter:

Model 2000

ModelRoller diameter(mm)

φ468

Max sheet size(mm)

1301800

Max printing size(mm)

1301600

Min sheet size(mm)

350×500

Min slot space(mm)

190×50×190×50
Working speed(pcs/min) 0-60
Printing precision(mm) ±0.5

Standard plate thickness(mm)

6
Sheet thickness(mm) 1.2-9




If you are also interested in the following product, please click the link

Single facer corrugated box machine Roll paper laminating machine
Full automatic flex printing machine Thin blade slitter scorer cutting machine
Semi-automatic flex printing machine Folder gluer machine
Automatic rotary die cutting machine Box stitching machine
Rotary slotter grooving machine NC cut off machine





1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.


2. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

   2) Skillful workers care every details in handling the producing and packing process

   3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.


3. Q: What is the payment terms?

A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.


4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

   2) To solve the problems with videos/pictures.

   3) One year warranty for spare parts change.

If you meet any other questions, please feel free to contact us. click here
