Manufacturing Plant, Food & Beverage Factory
Video technical support, Online support, Spare parts
None
None
New
Die-cutting Machine, automatic die cutting machine/carton machine die cutter
No
Hebei, China
Xinglong
380V 50Hz customized
Customized
About 4 tons
CE/ISO9001
1 YEAR, 1 year
Video technical support, Online support
Long Service Life
Factory selling paper box making machine automatic die cutter carton
Customized
120pcs/min
6mm
Lead edge
12mm
320mm
For cutting cardboard
Function and uses:

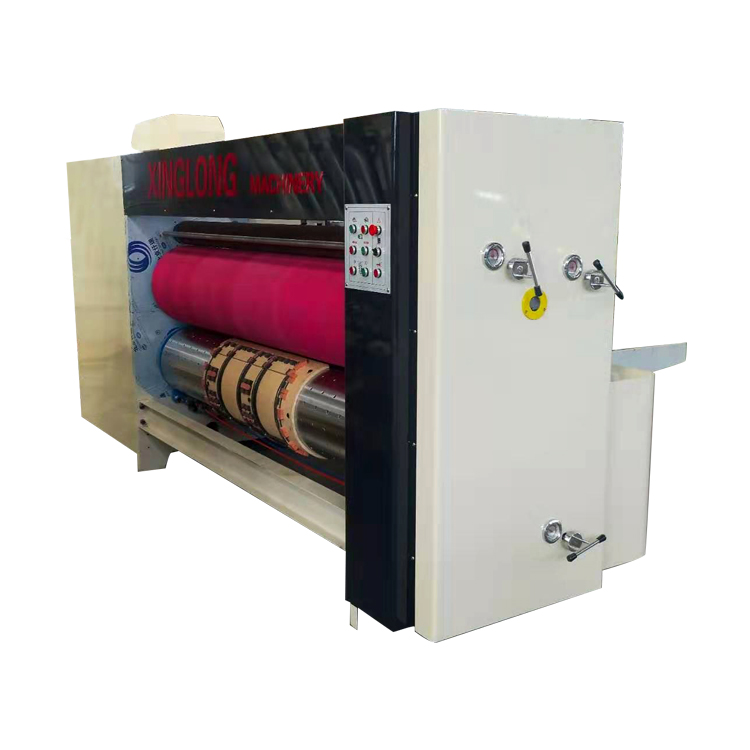

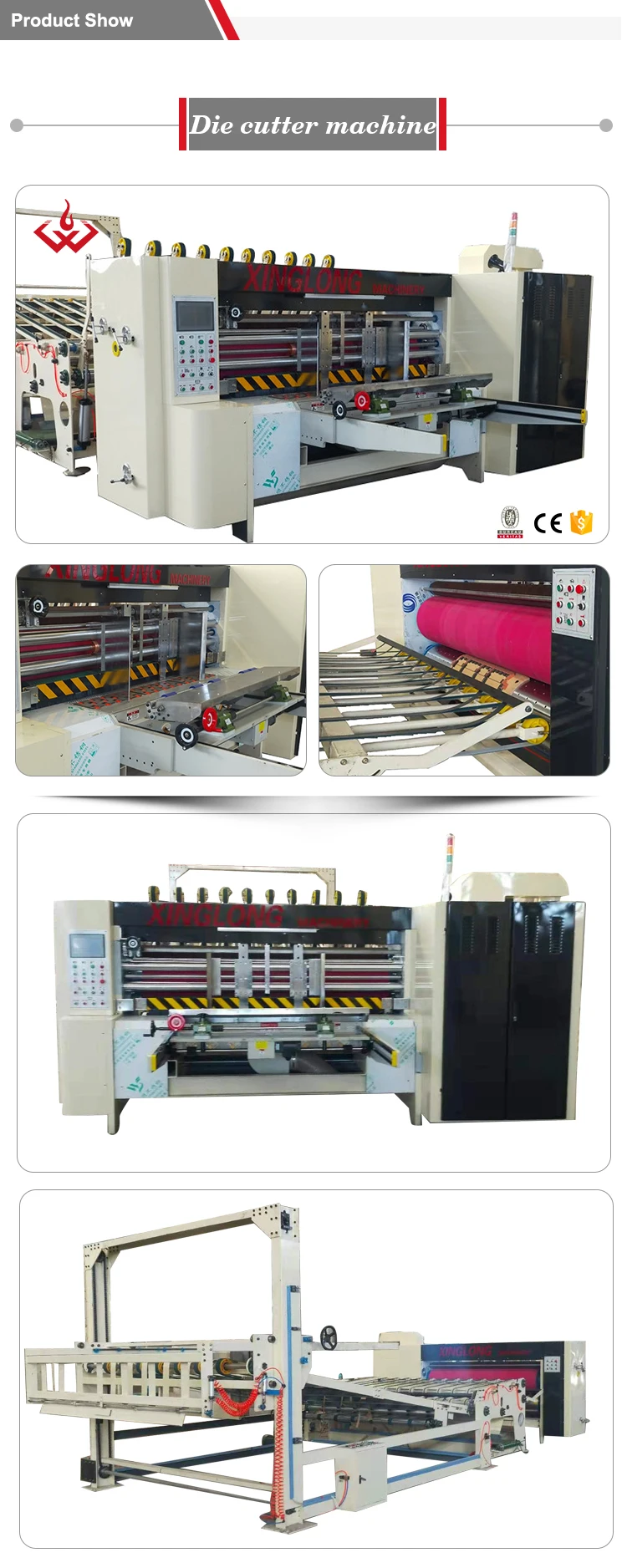

The machine adopts automatic lead edge feeding system and double roller rotary type. It can perform all process of slitting, creasing, corner cutting and hit special hole at one time. It has advantage of high precision, easy to operate, high speed ,long service life and low cost.
Main characteristics:
l Automatic compensation device for linear speed of rubber cushion roller to prolong the service life of superior adhesive.
l The lead edge feeding has the advantages of good stability, fast working speed, low failure rate and high efficiency.
l The rubber feeding roller with resorte device, feeding accurately, stably, not destroy paperboard strength if the feeding space is very small.
l The left and right side baffles adopt electric control , the back baffles adopt electric adjustment, the front baffle space manual sync adjustment.
l Equipped with colors touch screen take 360 degree set to die roller, display product speed and set production quantity.
l Automatic lateral movement of cushion roller 40 mm from left to right, prolonging the service life of superior rubber
l When the rubber pad is used unevenness, can open the function of the rubber roller, prolong the service life of the rubber pad.
l Adopt high-quality Germany Depair rubber pad.
l The roller is made of cast steel, with a wall thickness of 45mm,
l Pneumatic manual or automatic control of die cutting roll, die cutting roll to lift cutting paper, stop the paper feed to fall to avoid damage to the rubber pad.
l Electrically adjusted phase die-cutting position
l The transmission gear is automatically sprayed and lubricated, and the service life of the gear is prolonged.
Technical parameter
Model | AM-918 | AM-1020 | AM-1222 | AM-1424 |
Max. Cardboard size | 1800×900mm | 2000*1000mm | 2200*1200mm | 2400*1400mm |
Min. Cardboard size | 350×630mm | 350*630 | 350*630 | 350*700mm |
Total power | 5.5kw | 5.5kw | 7.5kw | 7.5kw |
Max. speed | 140pcs/min | 130pcs/min | 120pcs/min | 100pcs/min |
Adoptable thickness of paperboard | 2-10mm | 2-10mm | 2-10mm | 2-10mm |
Q:1.Are you a manufacturer, trading company or a third party?
A:We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
Q:2. What is your minimum order quantity, can you send me samples?
A:Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
Q:3. How does your factory do regarding quality controlling?
A:(1) All raw material we used are environmental-friendly.
(2) Skillful workers care every details in handling the producing and packing process.
(3) Quality control department are specially responsible for quality in each process.
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
Q:4.What is the delivery time of your machine?
A:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.
Q:5.How about the after-sale service?
A:(1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
(2) To solve the problems with videos/pictures.
(3) One year warranty for spare parts change.
If you meet any other questions, please feel free to contact us.
