Flexographic Printer
New
cardboard printer
Hebei, China
XINGLONG
XL-printing machine
Card Printer, Paper Printer
Automatic
Multicolor
380V/50HZ
11w
customized
3-10T
CE Certification

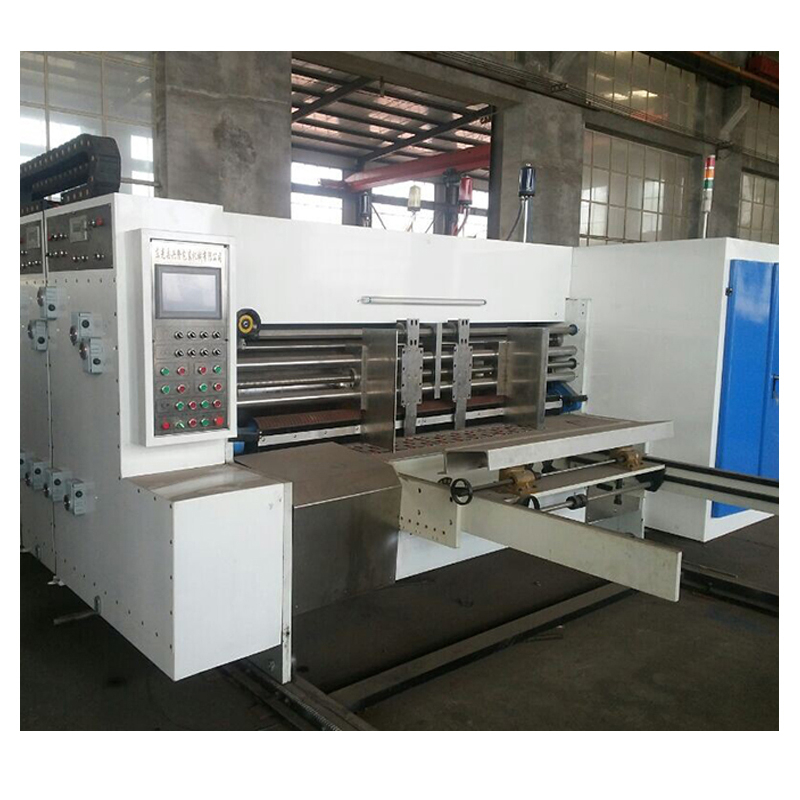

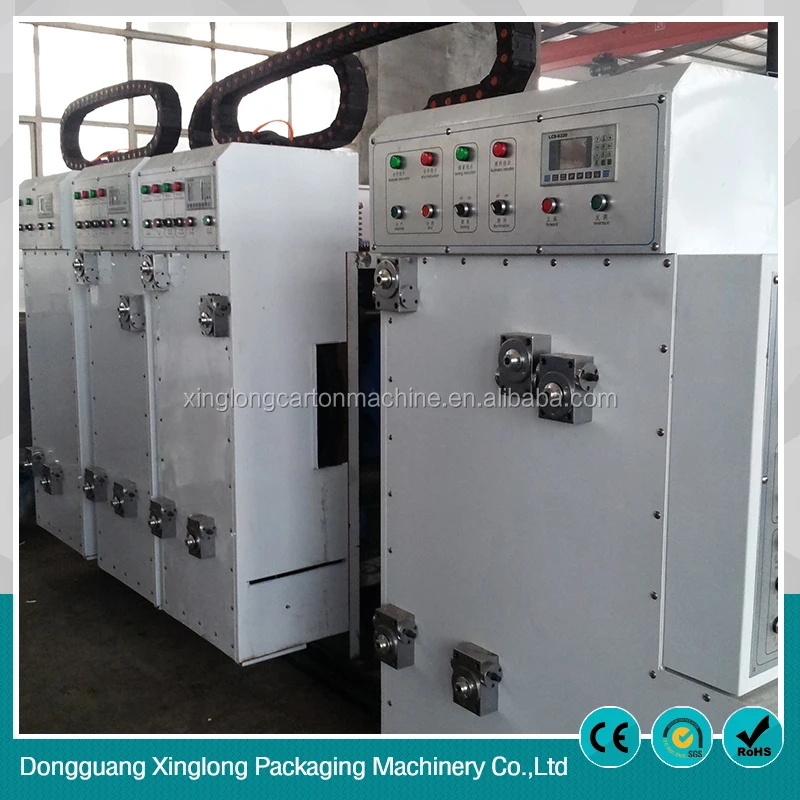

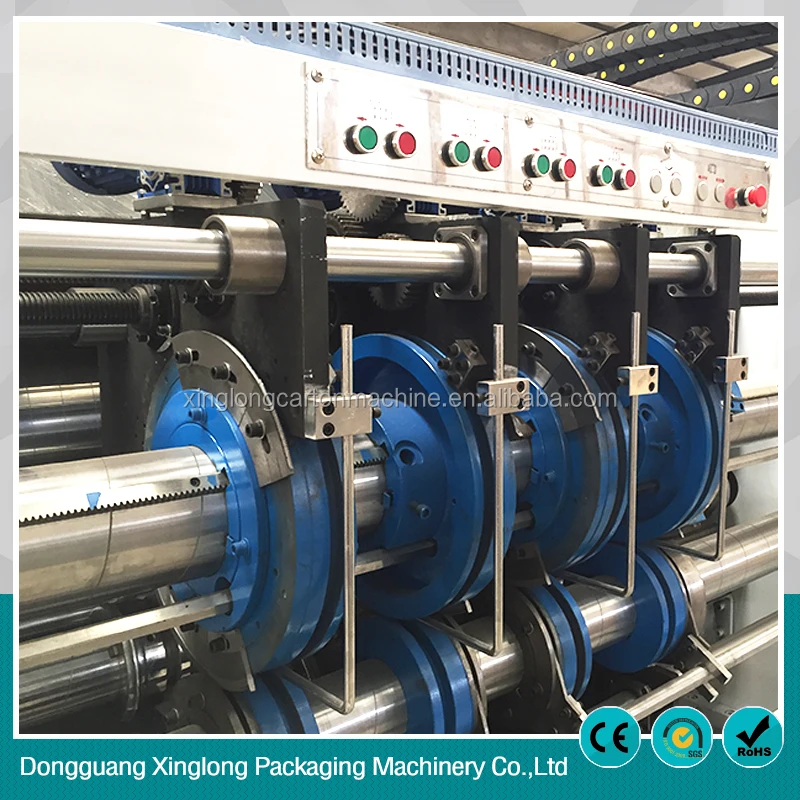

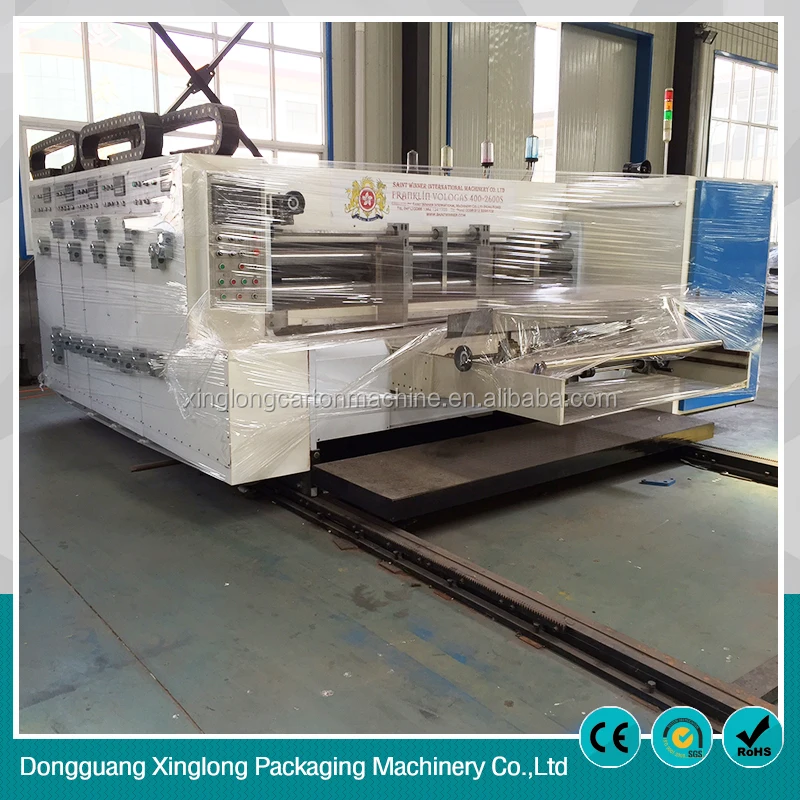

Factory customized corrugated carton printing die cut machine
Optional
100 pcs/min
60-120pcs/min
6mm
±0.75mm
1.2-9mm
40mm
About 11kw
One Year
Engineers available to service machinery overseas
Factory customized corrugated carton printing die cut machine
Performance and Characteristics
Specification:
Model | QYKMA405-2600 | QYKMA480-2600 |
Machine inside width (mm) | 2600 | 2600 |
Max feeding paper size(mm) | 1200*2400 | 1450*2400 |
Max effective printing size(mm) | 1200*2200 | 1450*2200 |
Min coverage size(mm) | 350*500mm | 350*500mm |
Min slotting space(mm) | 190*50*190*50 | 190*50*190*50 |
Design speed | 100pcs/min | 100pcs/min |
Working speed | 60-80pcs/min | 60-80pcs/min |
Standard Thickness of printing plate | 6mm | 6mm |
Printing precision | ±0.75mm | ±0.75mm |
Thickness of cardboard | 1.2-9mm | 1.2-9mm |
Wall thickness | 40mm | 40mm |
Main motor power | About 11kw | About 11kw |
If you are also interested in the following product, please click the link for video.
3/5ply cardboard production line Customized speed single facer High speed automatic printer slotter
Multi color semi auto printer slotter Rotary die cutting machine Rotary slotter grooving machine
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Need help? Please contact us. click here
