LDX2600
xinglong
8441309000
full auto
corrugated carton factory
Video technical support, Online support
LDX2600
1200*2400mm
1200*2200mm
200 pcs /min
120-180pcs/min
Electric
China,Hebei

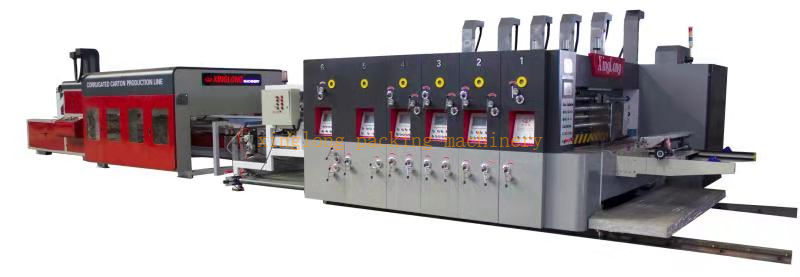

Corrugated carton producton line LDX- 4 Colors Printing slotting die cutting folder gluer in line
Corrugated carton producton line ,LDX- 4 Colors Printing slotting die cutting folder gluer in line machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, gluing and so on. high speed ,full automatic. special for regular cartons.
Technological parameter:
Model | QYKMA922 | QYKMA1224 |
Machine inside width (mm) | 2400 | 2600 |
Max feeding paper siz(mm) | 900*2200 | 1200*2400 |
Max effective printing size(mm) | 900*2000 | 1200*2200 |
Min coverage size(mm) | 350*700mm(full plate printing) | 350*700mm(full plate printing) |
Max die cutting space(mm) | 900*2150 | 1200*2350 |
Design speed | 250pcs/min | 200pcs/min |
Working speed | 200pcs/min | 180pcs/min |
Standard Thickness of printing plate | 6mm | 6mm |
Printing precision | ±0.5mm | ±0.5mm |
Thickness of cardboard | 1.2-9mm | 1.2-9mm |
Wall thickness | 50mm | 50mm |
Main motor power | About 30kw | About 30kw |
Corrugated carton producton line LDX- 4 Colors Printing slotting die cutting folder gluer in line
Corrugated carton producton line ,LDX- 4 Colors Printing slotting die cutting folder gluer in line machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, gluing and so on. high speed ,full automatic. special for regular cartons.
Technological parameter:
Model | QYKMA922 | QYKMA1224 |
Machine inside width (mm) | 2400 | 2600 |
Max feeding paper siz(mm) | 900*2200 | 1200*2400 |
Max effective printing size(mm) | 900*2000 | 1200*2200 |
Min coverage size(mm) | 350*700mm(full plate printing) | 350*700mm(full plate printing) |
Max die cutting space(mm) | 900*2150 | 1200*2350 |
Design speed | 250pcs/min | 200pcs/min |
Working speed | 200pcs/min | 180pcs/min |
Standard Thickness of printing plate | 6mm | 6mm |
Printing precision | ±0.5mm | ±0.5mm |
Thickness of cardboard | 1.2-9mm | 1.2-9mm |
Wall thickness | 50mm | 50mm |
Main motor power | About 30kw | About 30kw |
