Other
New
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Cartons
Paper
Semi-Automatic
Electric
380v/410v/440v 50Hz
6HP
Hebei, China
XINGLONG
XL-stitching machine
2000KG
2800*2600mm
CE
Easy operation semi-automatic staples packing machine
2460mm
606mm
1515mm
300mm
900mm
2800mm
450 stitches/min
30-100mm
1-99 stitches
Engineers available to service machinery overseas
Easy operation semi-automatic staples packing machineler machine

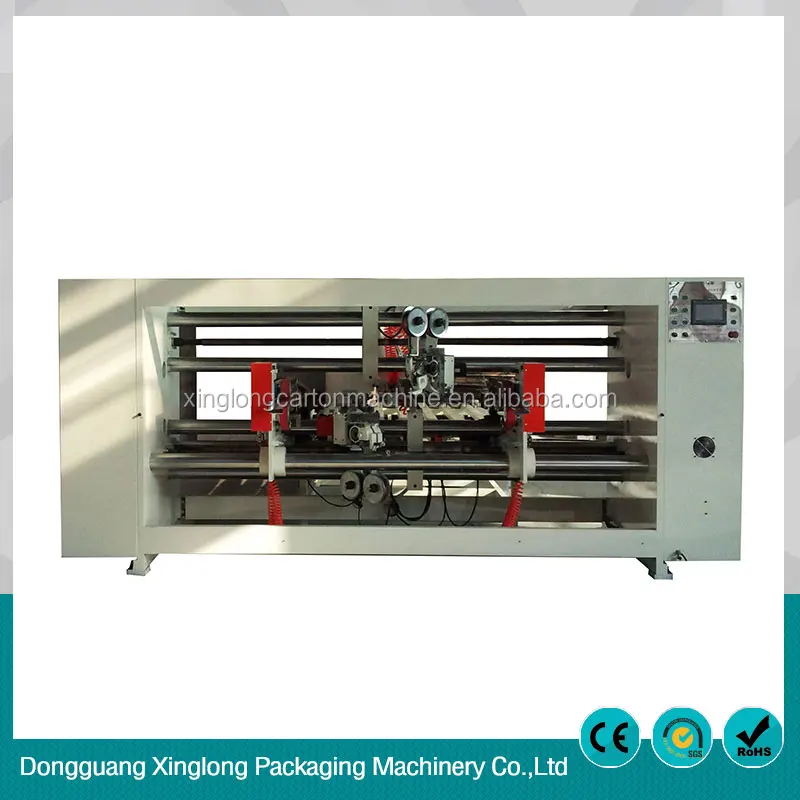

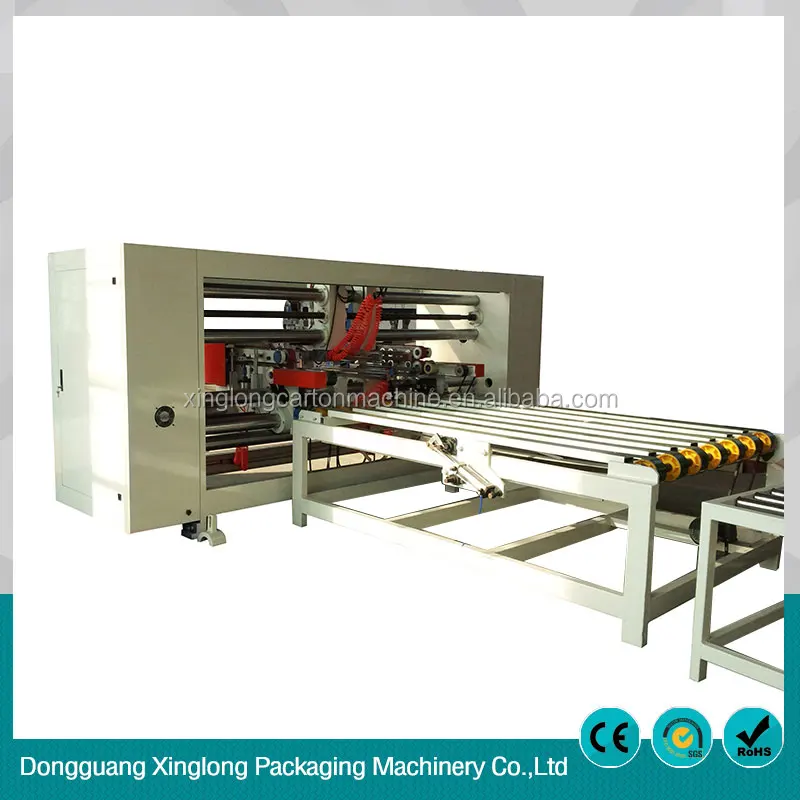

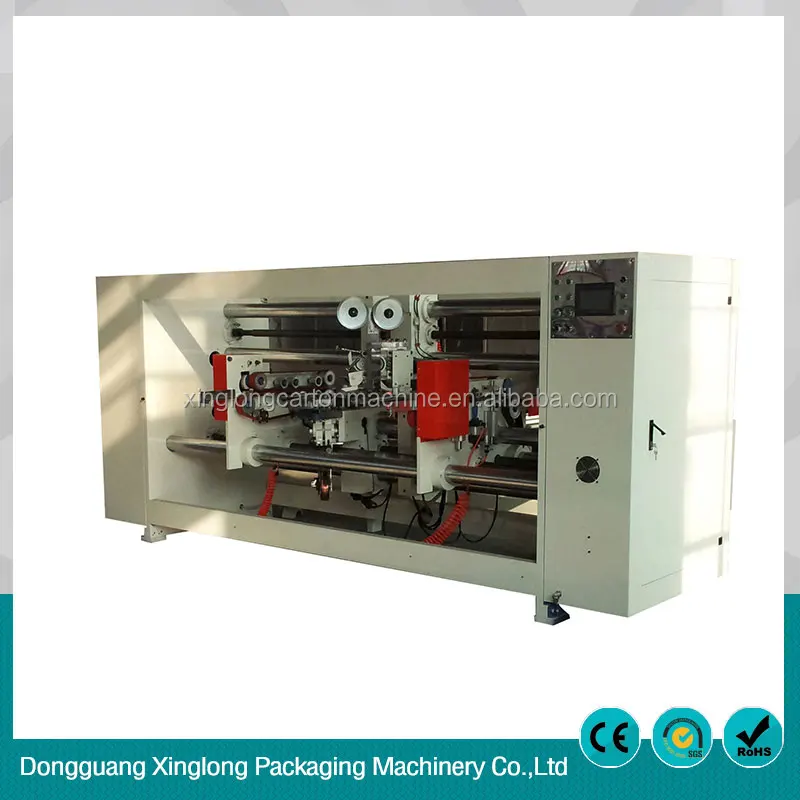

Double servo semi-auto stitching machine is latest improved product base on normal semi-auto stitching machine. The whole drive and running part adopt two pieces servo motor to drive machine running. The feeding part, stitching head and back baffle also adopt servo motor. When adjust back baffle through touch screen to operate, accurate, fast and convenient, needn’t worker take rule to adjusting. Improve the disadvantage of normal stitching machine used gear and bear to drive machine running, reduce the machine failure, prolong the machine use life. The stitching machine is the idea equipment in carton factory.
Specifications
Max(L+W)*2 | 2460mm |
Min(L+W)*2 | 606mm |
Max(W+H)*2 | 1515mm |
Min(W+H)*2 | 300mm |
Height of feeder | 900mm |
Power | 6HP |
Size | 2800*2600mm |
Speed | 450 stitches/min |
Stitching pitch | 30-100mm |
Number of stitching | 1-99 stitches |
1. It can nail single nail, double nail, strengthen nail completed in one-time, can be suitable for different kinds of customer requirements of nails.
2. It can be changed size quickly in one minute, can be operated easily and not had to experience.
3. Paper feeding section can automatic count, send after the bundle into the bundle.
4. It is man-machine interface control for convenient operation.
5. Back-automatic counting.The finished products done can be sent to the end of conveyor by setting the number.
6. Semi-finished products nailing to the finished products display only need two operators. This can operate simply and reduce wages.
If you are also interested in the following product, please click the link
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang country, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
If you meet any other questions, please feel free to contact us. click here
