Laminating Machine
New
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Cartons, cardboard
Plastic
Semi-Automatic
Electric
380V/50HZ
7KW
Hebei, China
XINGLONG
XL-laminating machine
8m*2.15m
4.8 Tons
CE Certification
Easy operation industrial roll paper laminating machine
grey
colorful box
Famous brand
1400*1100mm
350*350mm
0-90m/min
8*2.15m
One year
For cutting cardboard
Engineers available to service machinery overseas

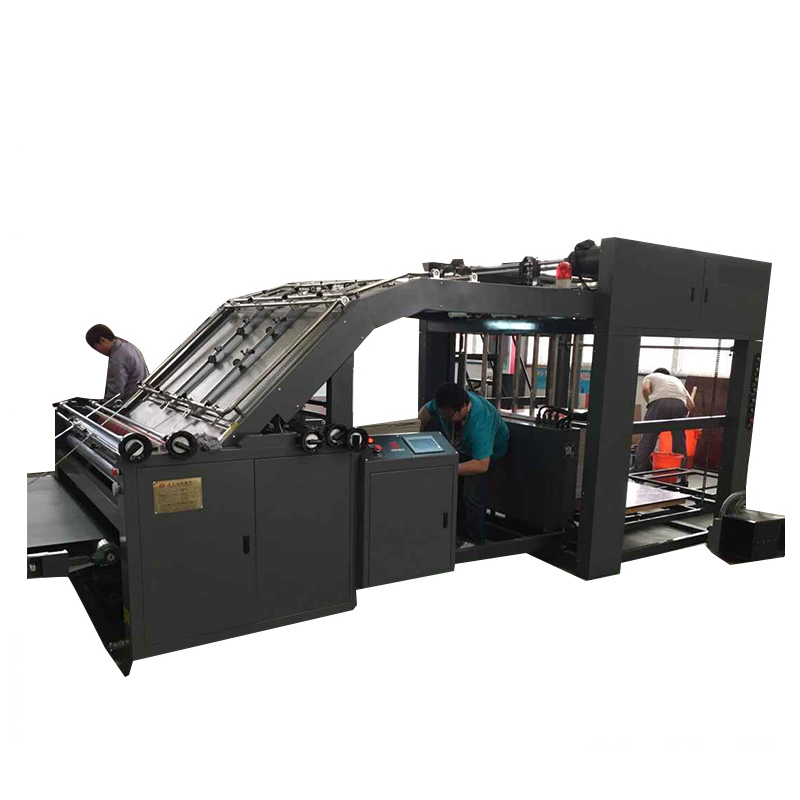

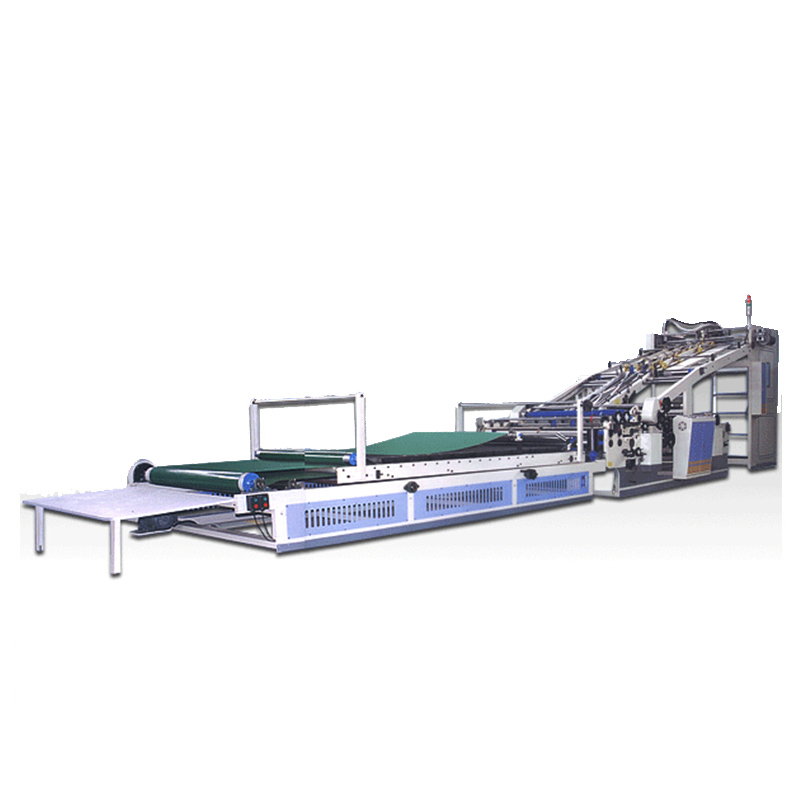

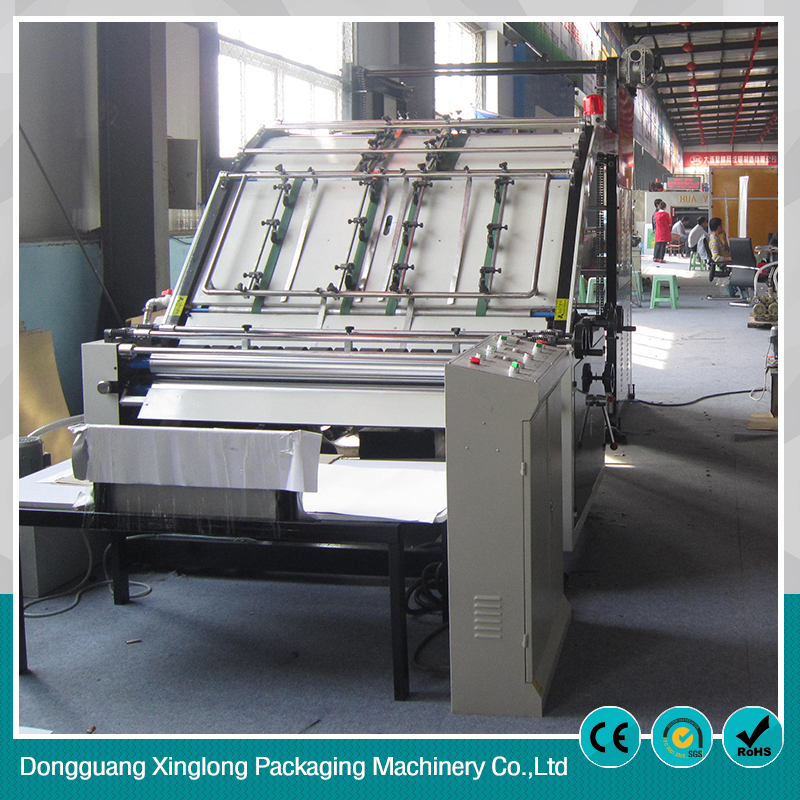

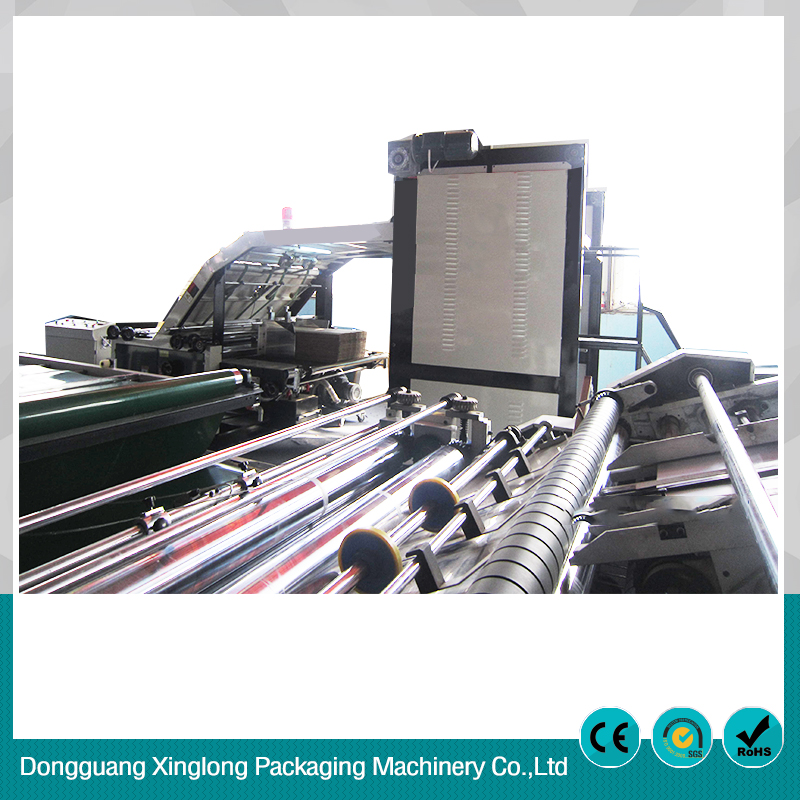

Easy operation industrial roll paper laminating machine
Automatic flute laminating machine is used for paper pasting between paperboard and paperboard, paperboard and corrugated paperboard. A,B,C,E,E,F flute options. 3layer, 5layer and 7layer corrugated paperboard are also ok.It features in high precision, flat and smooth.
The main parts adopt products from domestic famous manufactures, its advantages of long lifetime, stability. Electric parts adopt international famous products can ensure it stability.
Description:
Automatically send the end of the paper, the front push the paper , with easy and quick delivery , reduce labor intensity.
Pre-set the end of the paper never ahead , suitable for cardboard and cardboard paste , cardboard and A, B, C, D, E-type corrugated board fit.
At the end of paper, face paper before and after the fit, easy to paste.
For the glue system by the liquid level relay automatic control, adhesive layer thickness adjustable plastic uniform, saving glue dosage
Motor with stepless speed regulation, electromagnetic clutch with non-contact relay, trip position using photoelectric switch detection, electronic automatic counting and photoelectric automatic control.
High precision, paste the finish product with paper formation, neat edges, high strength, good rigidity and so on.
Electric car with high technical content, with automatic counting function.
The overall strucure is compact, beautiful appearance, high efficiency.
Specification:
| Model | BZJ-1100S | BZJ-1300S | BZJ-1300L | BZJ-1450S | BZJ-1450L | BZJ-1600L | |
| Max sheet sizeW×L(mm) | 1100×1100 | 1300×1100 | 1300×1300 | 1450×1100 | 1450×1300 | 1600×1450 | |
| Min sheet sizeW×L(mm) | 350×350 | 350×350 | 350×350 | 350×350 | 350×350 | 350×350 | |
| Base paper | Min weight(g/m2) | 300 | 300 | 300 | 300 | 300 | 300 |
| Max weight(g/m2) | 800 | 800 | 800 | 800 | 800 | 800 | |
| Max thickness(mm) | 10 | 10 | 10 | 10 | 10 | 10 | |
| Surface paper | Min weight(g/m2) | 180 | 180 | 180 | 180 | 180 | 180 |
| Max weight(g/m2) | 800 | 800 | 800 | 800 | 800 | 800 | |
The errors of paper pasting between paperboard and paperboard | ±1mm | ±1mm | ±1mm | ±1mm | ±1mm | ±1mm | |
The errors of paper pasting between paperboard and corrugated paperboard | ±1.5mm | ±1.5mm | ±1.5mm | ±1.5mm | ±1.5mm | ±1.5mm | |
| Total power(kw) | 12 | 12 | 12 | 12 | 12 | 12 | |
| Working speed(pcs/min) | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 | |
| Machine length(m) | 12.5 | 12.5 | 14.8 | 14.8 | 14.8 | 15.1 | |
| Weight(kg) | 5300 | 5600 | 5900 | 5900 | 6200 | 6500 | |
If you are also interested in the following product, please click the link for video.
3/5ply cardboard production line Customized speed single facer High speed automatic printer slotter
Multi color semi auto printer slotter Rotary die cutting machine Rotary slotter grooving machine
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Need more details, please contact us. click here
