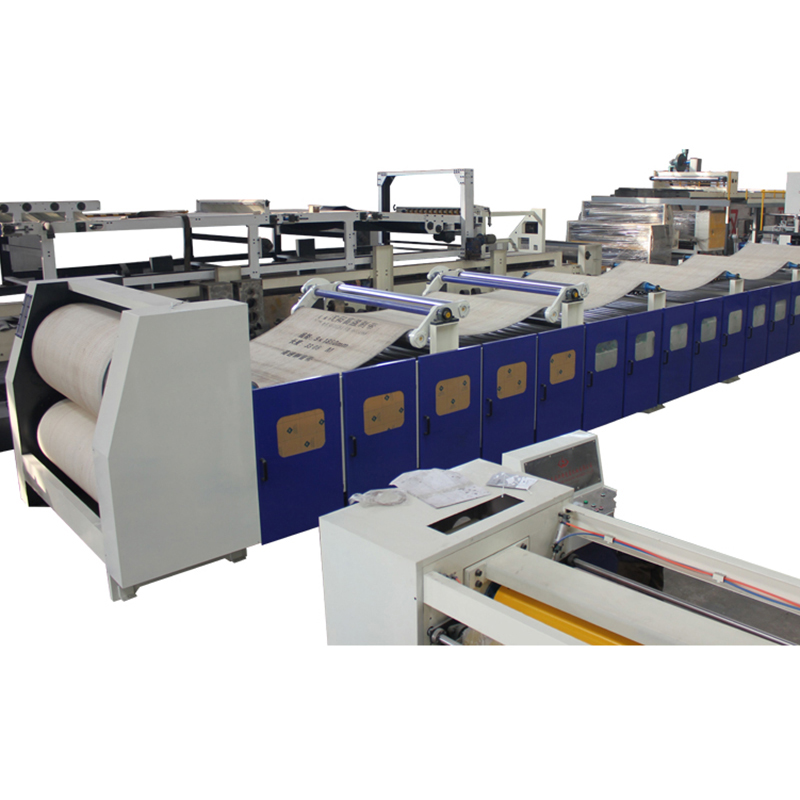

Double facer machine/corrugated carton machine manufacturer

Quantity:
  • Packaging Line, Double facer machine/corrugated carton manufacturer
  • Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Energy & Mining, Food & Beverage Shops
  • New
  • Apparel, Beverage, Chemical, Food, Medical, Commodity, Machinery & Hardware, Textiles
  • Film
  • Paper, Plastic, Wood
  • Automatic
  • Electric
  • 380v50hz customized
  • Hebei, China
  • Xinglong
  • customized
  • about 2T
  • CE, BV
  • 1 YEAR, one year
  • Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
  • Long Service Life
  • customized
  • optional
  • wooden cases, container
  • Making Corrugated Cardboard
  • Serve Overseas
  • Simple Operation
  • 100min/min

Double facer machine/corrugated carton machine manufacturer




Product Description


Function and characteristics:

Design speed:150m/min
Effective width: 1400-2500mm
Heat-plate surface be grinded.
Dense pressure roller, whole up and down by motorized or hydraulic.
Subsection or whole pressing according to number of piles, benefit to glue paperboard.
Upper cotton belt with automatic or manual correction, pneumatic tension, lower cotton belt with tension correction device.
Cooling and molding part used dense suspend pressure roller. Transmission gear adopts oil-immersed seal or half seal driving.
Drive roller are wrapped resistant rubber, prolong the use life of cotton belt.
Company Information

    DongguangXinglong Carton Machinery Co., Ltd is specialized in the production of various kinds of carton equipments of the well-know enterprise.
    Factory for over twenty years, we introduced advanced technology at home and abroad, developing and manufacturing products, has been well received by customer.
  We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment .products are distributed Russia ,the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and abroad.
  Over the years the company take “the quality first” “integrity-based” corporate purpose always meet
user’re-equipments as our sole purpose, providing the products with excellent quality, professional technology. Our company is willing to cooperate with domestic and foreign insight, strive for innovation, coexist win-win, hand in hand altogether will create packaging future.
Production line Description
  Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .The production line consists of the Mill Roll Stand, liner(medium paper ) Pre-heater, Single facer machine ,Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker, Heating System ,Air compression system and Glue Making System and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.
Technology parameter


WJ100-1800-i type three layer corrugated paperboard production line
Effective width
1800mm
Design produce speed
100m/min
Three layer work speed
80-100m/min
Five layer work speed
-----------------
Seven layer work speed
-------------------
The highest change single speed
100m/min
Longitudinal separation accuracy
±1mm
Cross-cutting precision
±1mm
Steam requirement
The maximum pressure 1.2Mpa
Common pressure 0.8-1.1Mpa
use2500kg-3000kg/Hr
Electricity demand
AC380V 50Hz 3PH
Total power≈120KW
Running Power≈60KW
Compressed air
The maximum pressure 9kg/cm2
Common pressure4-8kg/cm2
use1m³/min
Note
Speed the above targets required to achieve:effective width1800mm,Comply with the following standards and ensure the paper's equipment condition 175 ℃ heating surface temperature.


Space
≈Lmin46m*Wmin10m*Hmin5m(The actual drawing to provider to provide audited prevail)
