Corrugated cardboard production line
Customized
1 Year
Video Technical Support
Double Facer Machine

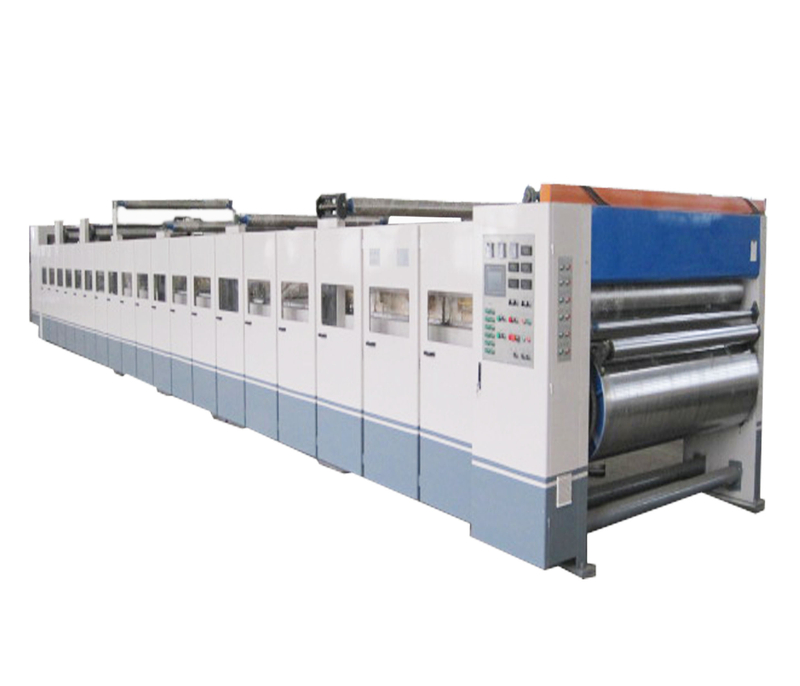

WJ150- DOUBLE FACER FOR 5 PLY CORRUGATED LINE
CONFIGURATION LIST
No. | Name | Qty | Feature |
1 | Hot plate
| 1 | --Main frame is 300 mm GB channel steel --Hot plate 600 mm 14 pcs |
2 | Cooling part | 1 | --5M cooling section --The upper and lower belt correct automatically --Temperature display |
3 | Mian drive | 1 | --Main drive frequency motor drive |
4 | high speed belt | 1 | --Good quality high speed cotton woven belt |
1.Machine Description:
*Corrugated paper enter into the double facer hot parts with heating and molding after pasted glue, and become board after cooling
2.Machine Function:
*Hot Plates width 520mm and 10 pics,cooling parts 4m
*Heat conductive pipe of hot plates control the temperature segmented,with the temperature display
*The inside of the hot plate is partition isolation structure,making the steam flow in S-shaped direction, and the separation function of steam and water is obvious,then improves the steam usage efficiency
*Up belt adopt double cylinder S type tension device,down belt manual tension device（small amount adjust）
*Drive rollers’ surface is wrapped by rubber with middle height,to make sure the board output smoothly
*Main drive motor: Variable frequency motor, high force when low speed start, high speed adjusting range, steady to use,easy to mend
*The electrical components adopt international famous brands, working stably and reliable
3.Machine Technical Parameter:
Working Width | 1600mm-2200mm |
Steam Pressure | 0.8-1.3Mpa |
Air Pressure | 0.6—0.9Mpa |
Up Drive Roller | Φ525mm |
Down Drive Roller | Φ525mm |
Front Driven Belt Roller | Φ320mm |
Back Shaping Driven Belt Roller （Down Belt Tension ） | Φ215mm |
Shaping Holder Roller | Φ86mm |
Note: All the surfaces of the rollers are ground and then chromed plated | |
