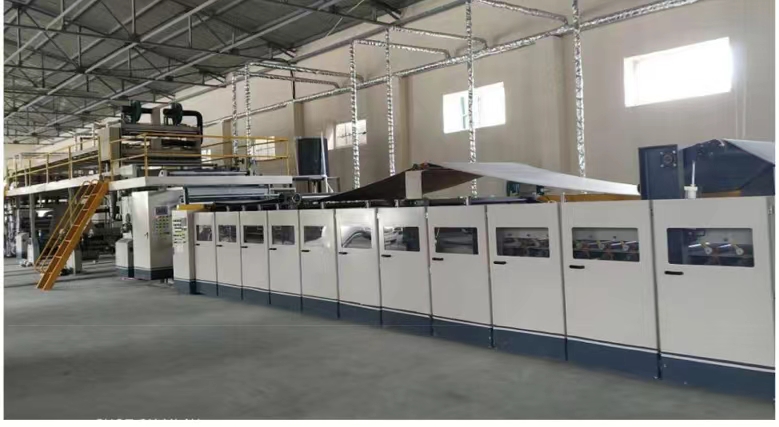

WJ150-Double Facer Machine for 5ply corrugated cardboard production line
CONFIGURATION LIST
| No. | Name | Qty | Feature |
| 1 | Hot plate | 1 | --Main frame is 300 mm GB channel steel --Hot plate 600 mm 14 pcs |
| 2 | Cooling part | 1 | --5M cooling section --The upper and lower belt correct automatically --Temperature displa |
| 3 | Main drive | 1 | --Main drive Frequency motor drive |
| 4 | High speed belt | 1 | --Good quality high speed cotton woven belt |
1.Machine Description:
Corrugated paper enter into the double facer hot parts with heating and molding after pasted glue, and become board after cooling
2.Machine Function:
Hot Plates width 520mm and 10 pics,cooling parts 4m
Heat conductive pipe of hot plates control the temperature segmented,with the temperature display
The inside of the hot plate is partition isolation structure,making the steam flow in S-shaped direction, and the separation function of steam and water is obvious,then improves the steam usage efficiency
Up belt adopt double cylinder S type tension device,down belt manual tension device（small amount adjust）
Drive rollers’ surface is wrapped by rubber with middle height,to make sure the board output smoothly
Main drive motor: Variable frequency motor, high force when low speed start, high speed adjusting range, steady to use,easy to mend
The electrical components adopt international famous brands, working stably and reliable
3.Machine Technical Parameter:
Working Width | 1600mm-2200mm |
Steam Pressure | 0.8-1.3Mpa |
Air Pressure | 0.6—0.9Mpa |
Up Drive Roller | Φ525mm |
Down Drive Roller | Φ525mm |
Front Driven Belt Roller | Φ320mm |
Back Shaping Driven Belt Roller （Down Belt Tension ） | Φ215mm |
Shaping Holder Roller | Φ86mm |
Note: All the surfaces of the rollers are ground and then chromed plated. | |
