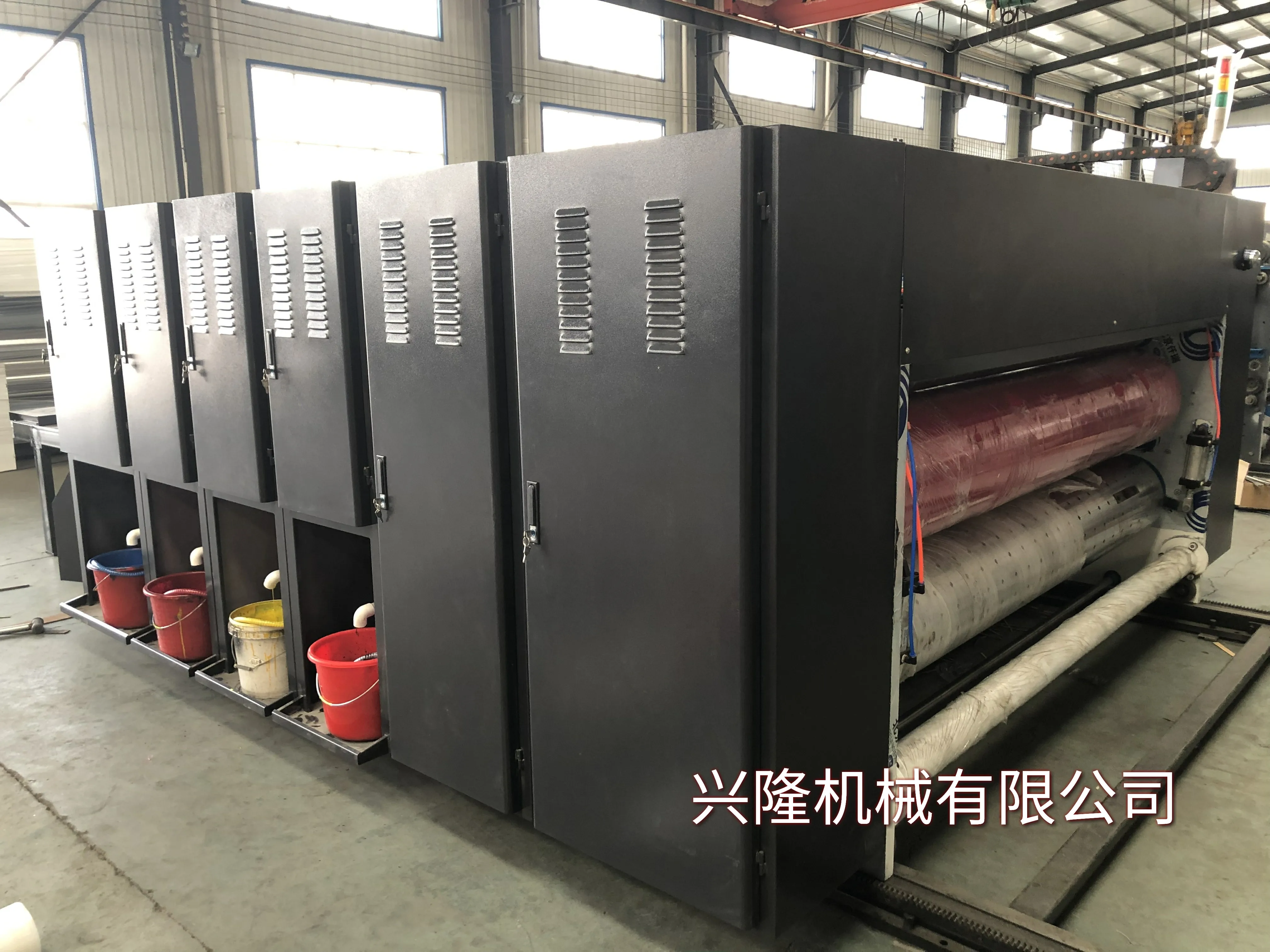

DongGuang semi automatic printing creasing corner-cutting rotary slotter die cutter machine

Quantity:
  • Other
  • 1.5 years
  • Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company
  • New
  • Apparel, Beverage, Commodity, Food, Machinery & Hardware, Medical, Chemical, Textiles
  • Cartons, Film, Case
  • Plastic
  • Semi-Automatic
  • Electric
  • 380v/410v/440v 50hz
  • 25 kw
  • Hebei, China
  • XINGLONG
  • 3500KG
  • Machine Model
  • CE SGS BV
  • Easy to Operate
  • feeding semi automatic slitting creasing corner-cutting slotter
  • chain
  • 2mm
  • according to your demand
  • 1400*2200, 1400*2500, 1400*2900
  • container
  • slotter
  • red
  • 340mm
  • one year
  • Engineers available to service machinery overseas

DongGuang semi automatic printing creasing corner-cutting slotter machine

Product Description

1 ink printing
2 equip slotter

3 chain feeding

4 color:2 3 4 5

Model BYKM 480-2300 BYKM 480-2600 BYKM 480-3000
Max.feed sheet size(mm) 1400*2200 1400*2500 1400*2900
Effective printing area(mm) 1400*2000 1400*2300 1400*2700
Min.feed sheet size(mm) 350*500

Standard thickness of

printing plate(mm)

6
Design speed(pics/min) 80
Working speed(pics/min) 40-60
Printing precision(mm) +/-0.5
Thickness of cardboard(mm) 1.2-9

Function features:

1. Use the combination chain style on feeding table.

2. Adopt planet style digital electrical adjustment of 360 degrees whatever operating and accurately.

3. Ink roller can be detached automatic from printing plate to avoid damage the printing plate.

4. Inker roller equipped the separately turn device to prevent ink dried when machine stop.

5. Pneumatic lock, electrical divides.

6. With Pneumatic diaphragm pump to supply ink.

7. Main transmission gears are made by 45#steel after high frequency quenching.

8. Drive part adopts sprinkle lubricating system, improve the precision and serve life of machine.

If you are also interested in the following product, please click the link for video.

3/5ply cardboard production line Customized speed single facer High speed automatic printer slotter

Multi color semi auto printer slotter Rotary die cutting machine Rotary slotter grooving machine

FAQ

1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang country, Hebei province, China. Warmly welcome to visit our company.

2. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

3. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

2) Skillful workers care every details in handling the producing and packing process

3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

2) To solve the problems with videos/pictures.

3) One year warranty for spare parts change.
