Die cutting and creasing machine/corrugated box production line
Use and Characteristics:
1. The four safety protection system for gate, triangle, handle, light-operated, it is more safety.
2. Four functions: single cutting, continuous cutting, working in delay time and counting.
3. Single plate electromagnetic clutch is sensitive and reliable, high safely performance and so on. Adopt adjustable die-plate, easy to upload plate, discharge plate.
4. Standard configuration: Provide oil by hand, centralized or computer automatically. Or frequency speed adjustable.
Main Technology Parameters:
Model | Max effective area | Working speed | WACRULELENGTH | Motor power | Weight |
PYQ203D | 930×670mm | 23±2(strokes/min) | <25m | 3.0kw | 3000kg |
ML1100 | 1100×800mm | 20±2(strokes/min) | <32m | 4.0kw | 4500kg |
ML1200 | 1200×830mm | 20±2(strokes/min) | <35m | 4.0kw | 4800kg |
ML1300 | 1300×920mm | 18±2(strokes/min) | <40m | 5.5kw | 6000kg |
ML1400 | 1400×1000mm | 17±2(strokes/min) | <45m | 5.5kw | 6800kg |
ML1500 | 1500×1050mm | 16±2(strokes/min) | <45m | 5.5kw | 7500kg |
ML1600 | 1600×1250mm | 16±2(strokes/min) | <50m | 11kw | 11000kg |
ML1800 | 1800×1300mm | 16±2(strokes/min) | <62m | 15kw | 13500kg |

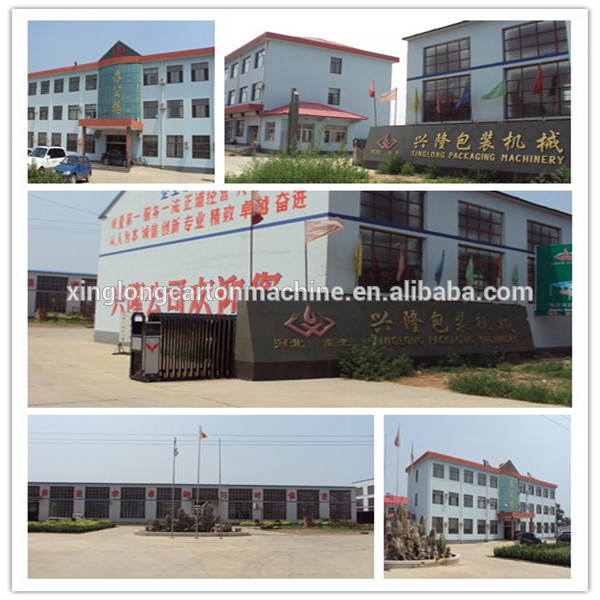

Our factory is a professional corrugated cardboard carton box making machines manufacturer for over 20 years.
We can provide every customer superior quality products at competitive price.
If you have any interests about the machine, please feel free to contact me.
Skype ID: cuiyun.shi
DONGGUANG XINGLONG PACKING MACHINERY CO., LTD.
ADD: MAHAI INDUSTRIAL AREA SOUTH TO DONGGUANG COUNTY, HEBEI PROVINCE, CHINA
