DXJ-SEMI auto two-piece four-servo box stitching machine for making carton box

Availability:
Quantity:
  • 2500

  • xinglong

  • New

  • Semi automatic

  • Provided

  • 1 Year

  • China,Hebei

  • Easy to Operate

  • Customized

  • Manual Feeding

  • Ordinary Product

  • Semi automatic stitching machine

封面(蓝)1

DXJ-SEMI AUTO two-piece four-servo box stitching machine

半自动钉箱机

Introduction of main parts and functions:

★ Japan Mitsubishi four-servo drive, accurate precision, reduced mechanical transmission parts, which can effectively reduce the failure rate of machinery.

★ The entire control system adopts Omron PLC control system.

★All contactors in the control box adopt the French Schneider brand.

★ The relay and circuit breaker adopt the French Schneider brand, and the photoelectric and proximity switches adopt the Japanese Omron brand.

★ The bottom mold and blade are made of Japanese alloy tungsten steel (wear-resistant).

★ The entire set of nail heads are made of Taiwan original parts, and the service life of the head is longer.

★ It only takes one minute to change the carton size and adjust the nail distance of the carton, which greatly saves time and is easy to operate.

★ There is an automatic counting function in the back section, and the number of finished products can be divided and sent to the end of the conveying machine according to the set number (1-99), which is convenient for packing and binding.

★ The front paper feeding section automatically counts, and the paper feeding table is equipped with a photoelectric sensor, which automatically rises when feeding paper.

★ Paper feeding height: 900mm.

★ Mechanical speed: 600 nails/min.

★ One set of dual purpose, can nail single-chip nailed cartons, double-chip nailed cartons, and irregular cartons.

★ Reinforced nails, single nails, double rows of nails can be nailed, all at once.

★ The paper feeding department automatically counts, and the finished product is sent out for binding.

★ Suitable for small and medium-sized cartons, fast and labor saving.

★ Adjust the nail distance, use the computer to set the nail distance automatically, and the nail distance can be adjusted at will from 30-150mm;

★ Automatic wire feeding system, 20KG large flat wire, saving time.

★ Features of this machine: three-layer, five-layer, and seven-layer carton thickness adjustment is fully computer controlled, fast and accurate.

★ This machine adopts four servo motors (namely two head motors and two feeding motors).

★ Isolation and voltage-stabilizing transformer protection device of the whole electrical appliance can better protect the service life of the whole computer electrical appliances.

★ The latest machine adopts a full computer to automatically adjust all sizes, and automatically adjusts the size of different models in one minute, fast and accurate, and can store 1,000 orders.

★ Binding method: double oblique nail or single oblique nail/reinforced nail.

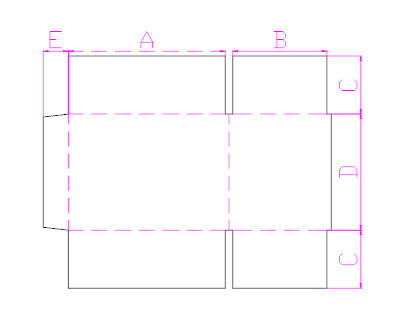

  Technical parameter

钉箱机

Model and parameters

1600

2000

2500

Maximum paper size (A+B) * 2 (mm)

3200

4000

5000

Minimum paper size (A+B) * 2 (mm)

980

980

980

Maximum carton length A mm

1480

1880

2380

Minimum carton length A mm

370

370

370

Maximum carton width B mm

800

1000

1250

Minimum carton width B mm

100

100

100

Maximum paper height (C+D+C) (mm)

2900

2900

2900

Minimum paper height (C+D+C) (mm)

400

400

400

Maximum flap size C (mm)

450 ( Standard)

600(Optional)

450 ( Standard)

600(Optional)

450 ( Standard)

600(Optional)

Minimum flap size C (mm)

80 ( Standard)

20(Optional)

80 ( Standard)

20(Optional)

80 ( Standard)

20(Optional)

Maximum height D (mm)

2000

2000

2000

Minimum height D (mm)

200

200

200

Max tongue width (mm)

40

40

40

Nail distance mm

30-150

30-150

30-150

Nail number

2-99

2-99

2-99

Nail speed (times/mim)

600

600

600

Machine weight (T)

3.0

3.2

3.5
