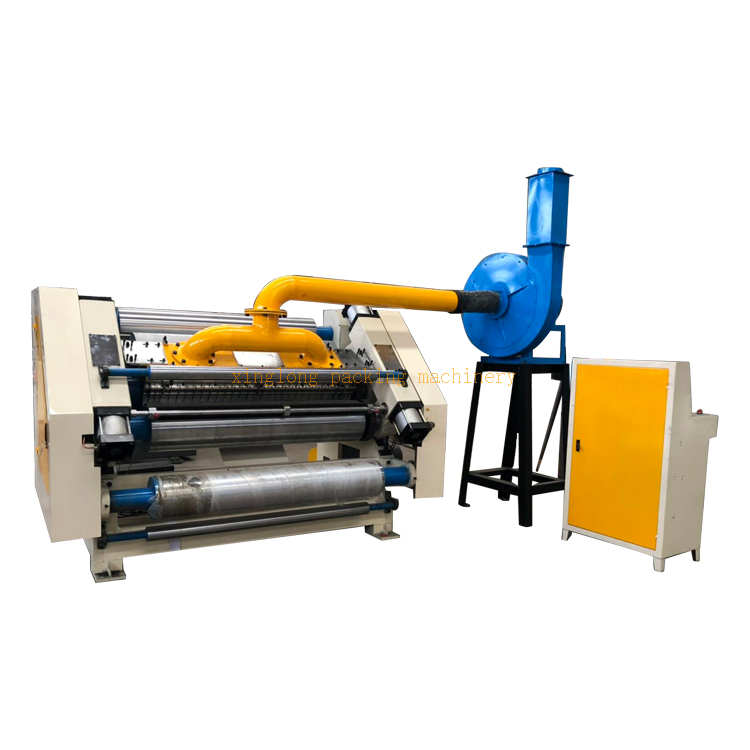

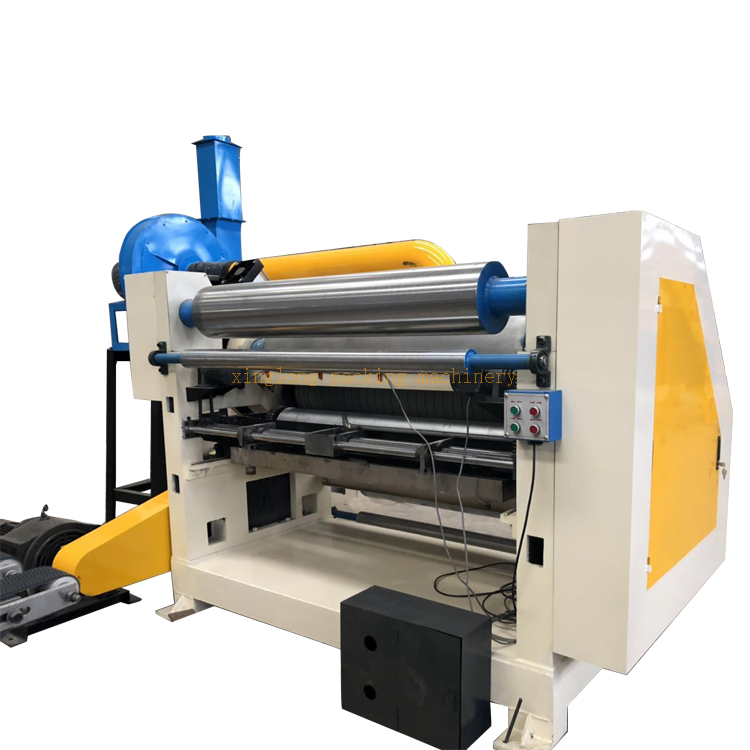

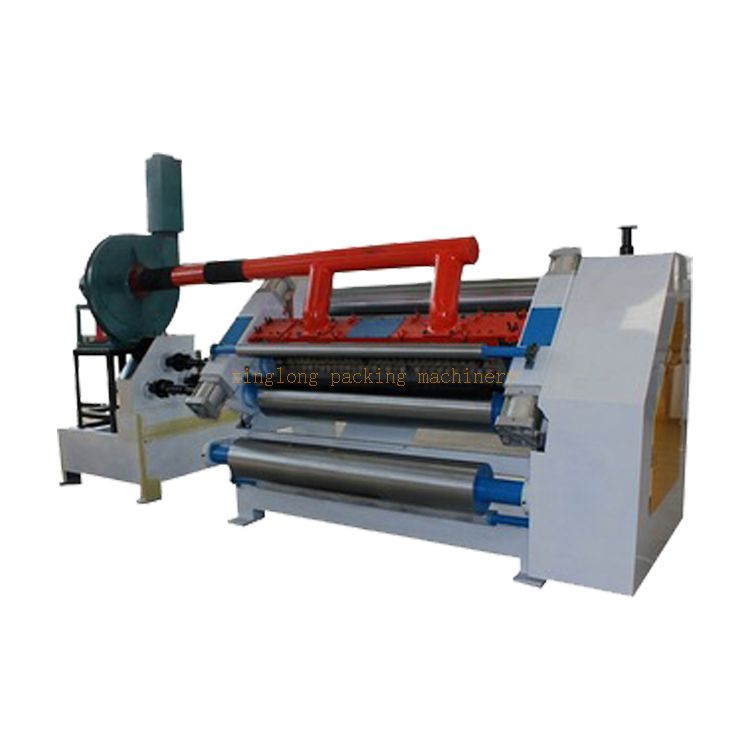

DONGGUANG High Quality Corrugated Cardboard Single Facer Machine

Corrugated cardboard production line , single facer
Effective width:
Flute roller diameter:
Design speed:
Working speed:
Heating type:
Quantity:
  • SF300-1800
  • XINGLONG
  • SINGLE FACER

photobank (10)

普通单面机

Technology parameters:

Model

SF300-1400

SF300-1600

SF300-1800

Effective width

1400mm

1600mm

1800mm

Flute roller   diameter

300mm

300

300

Design speed

80m/min

80m/min

80m/min

Working speed

60m/min

60m/min

60m/min

Heating type

Steam or   electric

Application   medium paper

80gsm-170gsm

Flute type

UV, A, B, C, E,   F, D

Power

About 20kw or   60kw


Features:

1. Vacuum suction type pulling cardboard with wind control device.

2. Glue roller and fixed roller are designed to groups guide way slippage load-unload, convenient and swift.

3. Used pneumatic control top flute roller, pressure roller and gluing roller come back movement.

4. Flute roller adopts 48CrMo high quality alloy steel, with heat treatment, surface be grinded and chrome plated.

5. Adjust gluing width by motorized (manual option)

6. Glue amount adjustment by pneumatic( electric option)

7. The bearing of flute roller and pressure roller adopt high temperature resistant lubrication grease.

8. Vacuum suction type pulling cardboard with wind control device.

9. Glue roller and fixed roller are designed to groups guide way slippage load-unload, convenient and swift.

10. Independent gear box connect with gimbal to drive machine running more stable. (option:electric heating without gimbal)

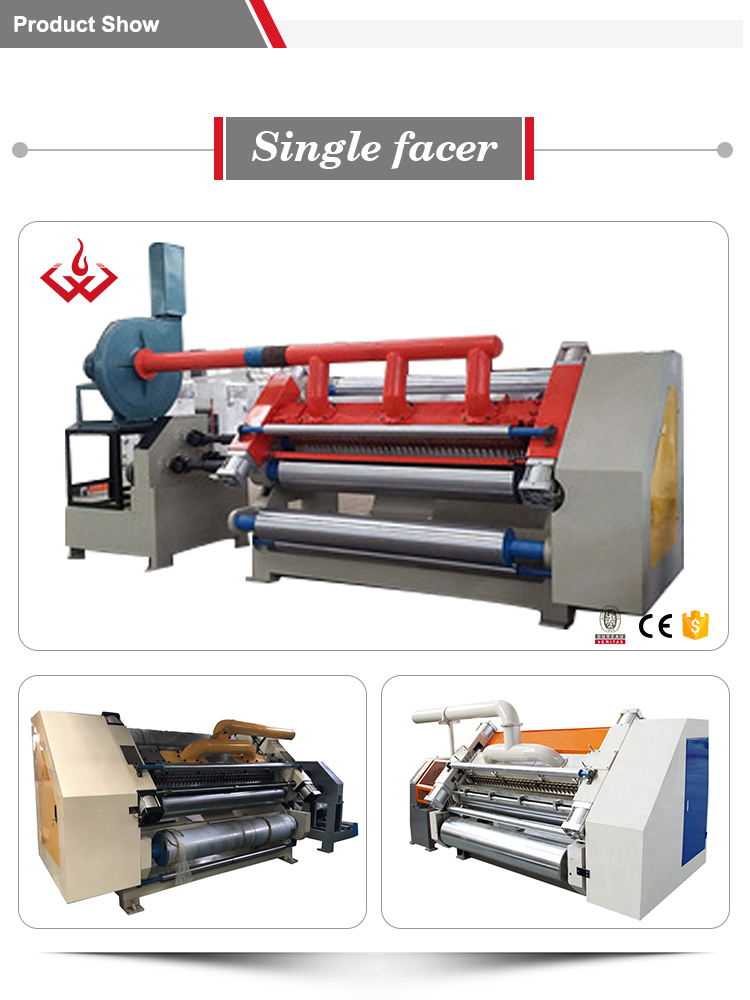

普通单面机16

photobank (18)

photobank (15)

photobank (16)

photobank (14)

photobank (17)

FAQ:

Q:1.Are you a manufacturer, trading company or a third party?

A:We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.


Q:2. What is your minimum order quantity, can you send me samples?

A:Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.


Q:3. How does your factory do regarding quality controlling?

A:(1) All raw material we used are environmental-friendly.

    (2) Skillful workers care every details in handling the producing and packing process.

    (3) Quality control department are specially responsible for quality in each process.

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.


Q:4.What is the delivery time of your machine?

A:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.


Q:5.How about the after-sale service?

A:(1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

    (2) To solve the problems with videos/pictures.

    (3) One year warranty for spare parts change.


If you meet any other questions, please feel free to contact us.
