xinglong

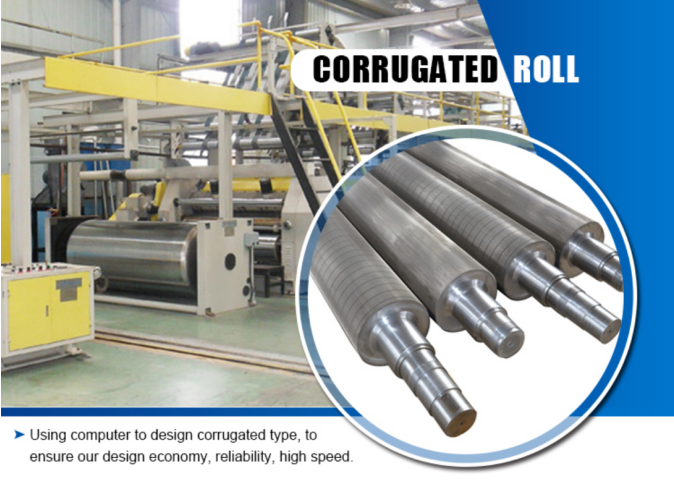

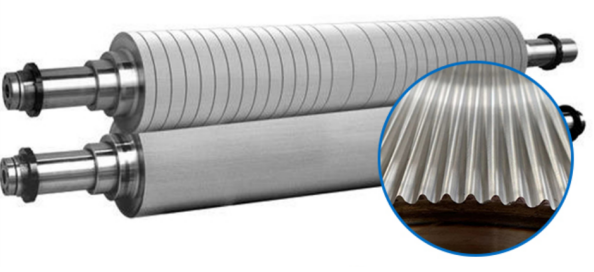

The corrugated roll is made of high quality alloy steel.The technology comes from war industry.
Adopt high precision computer control professional grinding machine.
It is treated by special corrugated roll surface treated technology.The hardness is very high.
High-speed corrugated roll with big diameter.The maximum working speed is 300 m/min.
Gear type:UV,V.Flute type:A,B,C,BC,D,E,F optional.
Fingerless suction and inner suction are optional.
We are engaging in design,repair manufacture all kinds of corrugated roll.
Corrugation parameters
| Type of corrugafion | A | C | BC | BC2 | B | D | DE | E | F |
| Shape of corrugafion | UV | UV | UV | UV | UV | UV | UV | UV | UV |
| Quantity of corrugafion | 34±2 | 38±2 40±2 | 44±2 | 48±2 | 50±2 | 66±6 | 75±3 | 96±4 | 124±10 |
| High of corrugafion | 4.6-4.9 | 3.6-3.9 | 3.0-3.4 | 2.8-3.2 | 2.6-2.9 | 1.9-2.1 | 1.5-1.9 | 1.1-1.8 | 0.7-0.8 |
| Rate of corrugafion | 1.51-1.59 | 1.44-1.51 | 1.42-1.49 | 1.40-1.45 | 1.36-1.42 | 1.40-1.41 | 1.35-1.40 | 1.29-1.39 | 1.22-1.26 |
The corrugated roll is made of high quality alloy steel.The technology comes from war industry.
Adopt high precision computer control professional grinding machine.
It is treated by special corrugated roll surface treated technology.The hardness is very high.
High-speed corrugated roll with big diameter.The maximum working speed is 300 m/min.
Gear type:UV,V.Flute type:A,B,C,BC,D,E,F optional.
Fingerless suction and inner suction are optional.
We are engaging in design,repair manufacture all kinds of corrugated roll.
Corrugation parameters
| Type of corrugafion | A | C | BC | BC2 | B | D | DE | E | F |
| Shape of corrugafion | UV | UV | UV | UV | UV | UV | UV | UV | UV |
| Quantity of corrugafion | 34±2 | 38±2 40±2 | 44±2 | 48±2 | 50±2 | 66±6 | 75±3 | 96±4 | 124±10 |
| High of corrugafion | 4.6-4.9 | 3.6-3.9 | 3.0-3.4 | 2.8-3.2 | 2.6-2.9 | 1.9-2.1 | 1.5-1.9 | 1.1-1.8 | 0.7-0.8 |
| Rate of corrugafion | 1.51-1.59 | 1.44-1.51 | 1.42-1.49 | 1.40-1.45 | 1.36-1.42 | 1.40-1.41 | 1.35-1.40 | 1.29-1.39 | 1.22-1.26 |
