LDX2200
xinglong
Ordinary Product
xinglong
China,Hebei
1 Year
Video technical support
100-110pcs/min
±0.5mm
130pcs/min
Corrugated carton production line
LDX-3 Colors Printing slotting die cutting folder gluer strapping in line

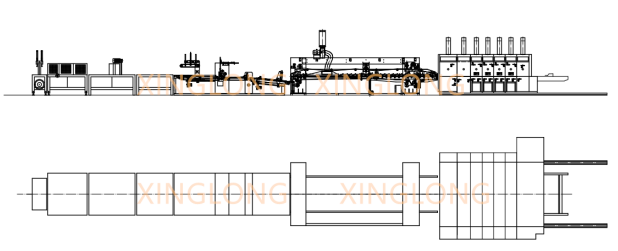

MACHINEDRAWING
Main Technology parameters
| Model | LDX2200 |
| Machine inside width(mm) | 2200 |
| Max feeding paper size(mm) | 1200mm*2000mm |
| Max effective printing size(mm) | 1200mm*1800mm |

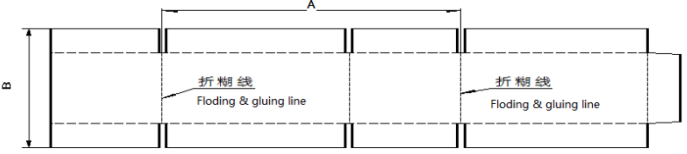

| Positive knife min slotting space(slotting unit independently) | 150*150*150*150 |
| Negative knife min slotting sapce(slotting unit independently) | 280*80*280*80 |
| Max die cutting size(mm) | 1200mm*1900mm |
| Min coverage size(mm) | 350mm*700mm |
| Design speed(pcs/min) | 130pcs/min |
| Working speed(pcs/min) | 100-110pcs/min |
| Standard Thickness of printing plate | 6mm |
| Printing precision | ±0.5mm |
| Thickness of cardboard | 2-9mm |
| Wall thickness | 40mm |
| Main motor power | About:15kw |
The machine can finish multi processes one time such as:printing,slotting,creasing,trimming,corner cutting,punching,gluing and so on.
Machine is designed according to high request and reliable function,humanization operation,it can setting,revision,implement,changing and memories in short time,and display data accurately.
All of drive rollers are made of high quality steel,hard chrome plated the surface with grinded
Main drive gears adopt high quality steel with heat treatment with grinded,adopt cross slip system connect each gear,keep gear fix position,ensure transmission precision.
The mai drive roller adopt keyless connect,decrease the connection gap,ensure printing precision.
The machine adopt sealed spray lubrication for gear system,engineer oil automatic balance device;keep the oil level equal in each unit.
Motorized digital phase adjustment with "automatic zero return"and "memories" function,PLC conrtol with touch screen.
The machine adopts lead edge,low demand for the cardboard,fast.
Main motor is VFD,working stability,low power consumption.

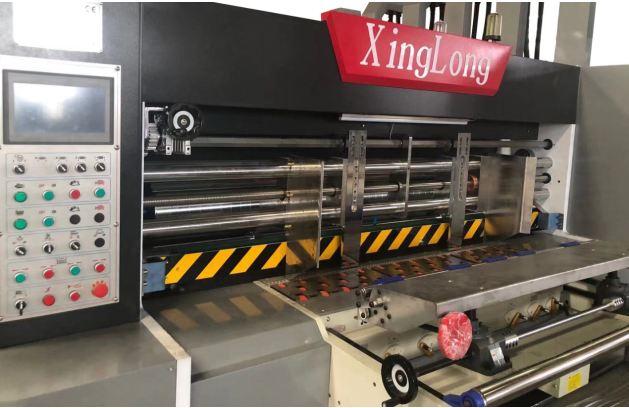

1.Lead edge feeding unit
2.printing unit
3.slotting unit(electric sync)
4.Die cutting unit
5.SYFC-1200 Inline automatic folder gluer.

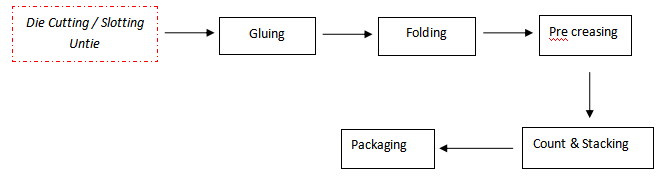

Equipment process
6.PP strapping unit
