| Quantity: | |
|---|---|
Other
Manufacturing Plant, Printing Shops
New
Apparel, Commodity, Food, Machinery & Hardware
Cartons
Plastic
Semi-Automatic
Electric
380v 50HZ (custimized)
6.5kw
Hebei, China
xinglong
3tons
6000*4150*4200mm
CE certification
based on customer demands
carton machinery
Engineers available to service machinery overseas

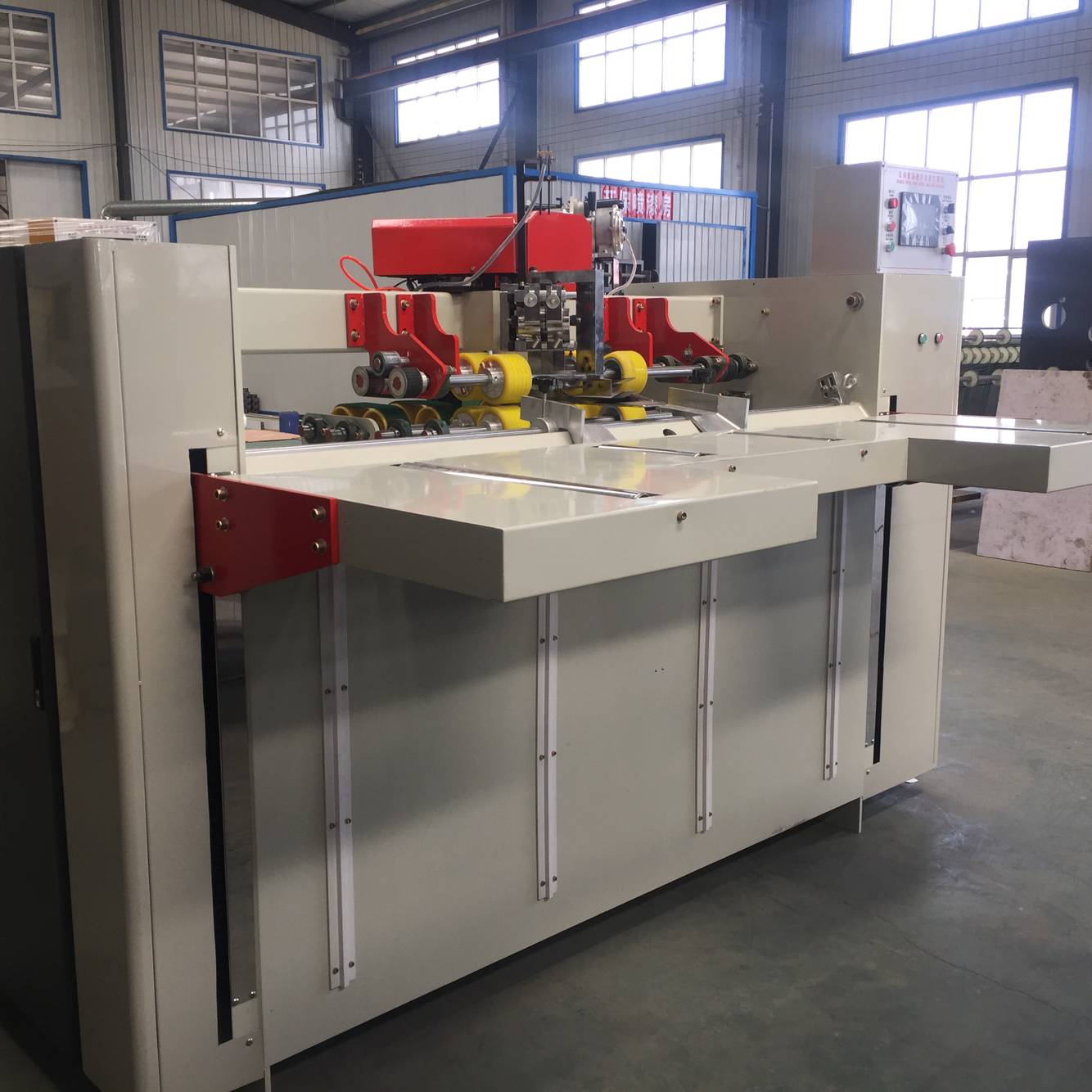

Carton Box Double pieces stitching machine
² This machine can stitch single, double, and Irregular carton.
² Adopted electric controlling to adjust size.
² Single/, double// and strengthen nail/are available, be finished one time, it can meet different requirements of different clients.
² Automatic counter ejector.
² Suit for large carton, speed stitching and easy.
² Set the program in computer to adjust stitching pitch automatically.
² Adopt electric control to adjust size, fault instruction will appear in the LCD.
² Our product can be generally applied to the three-layer or five-layer cardboard boxes as well as the uncovered ones with bottom. As for the seven-layer boxes, the equipment needs to be customized.
² Stitching pitch(small-big)30mm-120mm can be arbitrary regulation.
² Machine speed: 500stitches/minute.
² It can do special box without cover
Technology Parameters:
Model | XLD-3000MM |
Max. sheet size(A+B)*2(mm) | 6000 |
Min. sheet size(A+B)*2(mm) | 1060 |
Max.sheet size length(mm) | 2850 |
Min.sheet length(mm) | 350 |
Max.sheet width(mm) | 1500 |
Min.sheet width(mm) | 180 |
Min.sheet height(C+D+C) (mm) | 400 |
Stitching pitch(mm) | 30-120 |
No.of stitching | 1-99 |
Machine speed(stitch/min) | 500 |
Power Required(HP) | 18 |
Machine Length(mm) | 6000 |
Machine width(mm) | 4150 |
Machine Weight(kg) | 4200 |
Max.stopper Measurement | 600mm(C) |
Max.TS width | 45mm(E) |
Min.Frist stitch Pitch | 25mm(D) Uncover |
