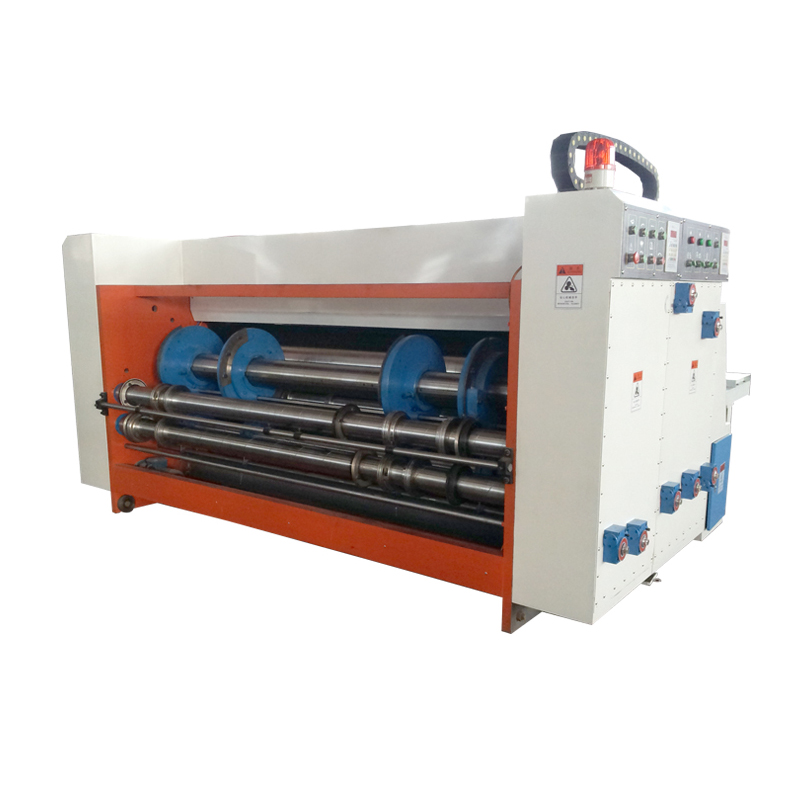

Corrugated cardboard inkjet 4 color feeder printing machine

Quantity:
  • Flexographic Printer
  • New
  • cardboard printer
  • Hebei, China
  • Xinglong
  • XL-semi auto printing machine
  • Paper Printer, cardboard sheet
  • Semi-Automatic
  • Multicolor
  • 380V, 380V/50Hz customized
  • 11KW
  • 2500mm*1700mm*2600mm
  • 5000kg
  • CE ISO9001
  • Corrugated cardboard inkjet 4 color feeder printing machine
  • 0-60 Sheets/min
  • Semi automatic
  • 11KW
  • 1.2-9mm
  • 6mm
  • According to your demand
  • Corrugated carton box
  • One year
  • Engineers available to service machinery overseas

Corrugated cardboard inkjet 4 color feeder printing machine



Details:

1. Use the combination chain style on feeding table.

2. Adopt planet style digital electrical adjustment of 360 degrees whatever operating and accurately.

3. Ink roller can be detached automatic from printing plate to avoid damage the printing plate.

4. Inker roller equipped the separately turn device to prevent ink dried when machine stop.

5. Pneumatic lock, electrical divides.

6. With Pneumatic diaphragm pump to supply ink.

7. Main transmission gears are made by 45#steel after high frequency quenching.

8. Drive part adopts sprinkle lubricating system, improve the precision and serve life of machine.


Specification:

Model

2300

2600

2800

Roller diameter (mm)

φ400

φ468

φ400

φ468

φ400

φ468

Max sheet size (mm)

1200×2200

1450×2200

1200×2500

1450×2500

1200×2700

1450×2700

Max printing size (mm)

1200×2000

450×2000

1200×2300

1450×2300

1200×2500

1450×2500

Min sheet size (mm)

320×500

350×500

320×500

350×500

320×500

350×500

Min slot space(mm)

190×50×190×50

190×50×190×50

190×50×190×50

Working speed (pcs/min)

0-60

0-60

0-60

Printing precision(mm)

±0.5

±0.5

±0.5

Standard plate thickness(mm)

6

6

6

Sheet thickness(mm)

1.2-9

1.2-9

1.2-9


Please contact us for the full version of video.

















1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.


2. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.


3. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

   2) Skillful workers care every details in handling the producing and packing process

   3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.


4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

   2) To solve the problems with videos/pictures.

   3) One year warranty for spare parts change.
