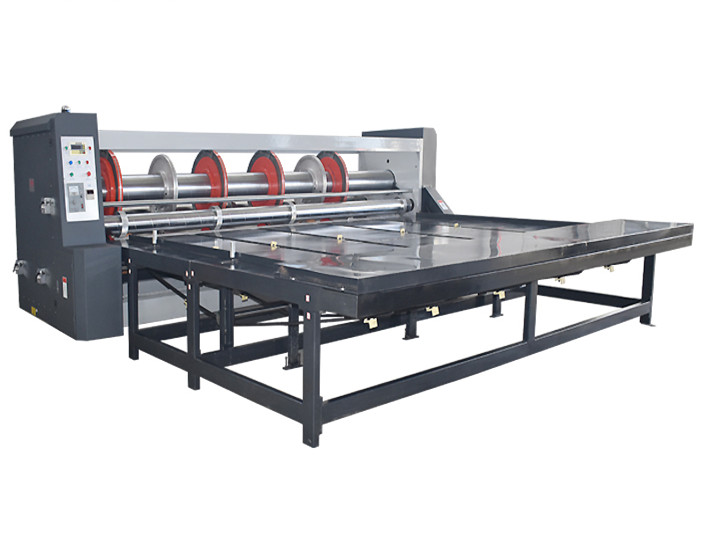

Corrugated cardboard chain feeder Semi-auto rotary slotting machine paper packaging box making machine

Share to:

Corrugated cardboard chain feeder Semi-auto rotary slotting machine paper packaging box making machine

Availability:

Quantity:



Inquire Add to Basket

Type:
Other
Warranty:
1.5 years
Applicable Industries:
Manufacturing Plant, packaging
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, packing
Packaging Type:
Cartons, Bags, Case
Packaging Material:
Plastic, Paper, Metal, Wood
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Voltage:
380V
Power:
3KW
Place of Origin:
China,HeBei
Brand Name:
XINGLONG
Weight:
500KG
Dimension(L*W*H):
4000*3000mm*2500mm
Certification:
CE,ISO90001
Key Selling Points:
Long Service Life
Model:
RS4-B-1222
Cutter die diameter:
405mm
Max sheet size(mm):
1200*2200
Min sheet size(mm):
350*500
Min slot distance(mm):
190*50*190*50
Slot width(mm):
7mm
Sheet thickness(mm):
2-10mm
Work speed (pcs/min):
0-60PCS/Min
Wall board thickness(mm):
40
After-sales Service Provided:
Engineers available to service machinery overseas

Product Description

Product Description

Function and uses:

The rotary slotting machine is a combination equipment, it can perform slotting,corner cutting, slitting, creasing one time, It's main characteristics of hand feeding single cardboard, all of corrugated cardboard is ok .

PARAMETER

Model

RS4-B-1222

RS4-B-1224

RS4-B-1226

RS4-B-1422

RS4-B-1424

RS4-B-1426

Cutter die diameter

Φ405mm

Φ480mm

Max sheet size(mm)

1200*2200

1200*2400

1200*2600

1400*2200

1400*2400

1400*2600

Min sheet size(mm)

350*500

400*500

Min slot distance(mm)

190*50*190*50

Slot width(mm)

7mm

Sheet thickness(mm)

2-10mm

Work speed (pcs/min)

0-60

Power (kw)

3.0

Wall board thickness（mm)

40

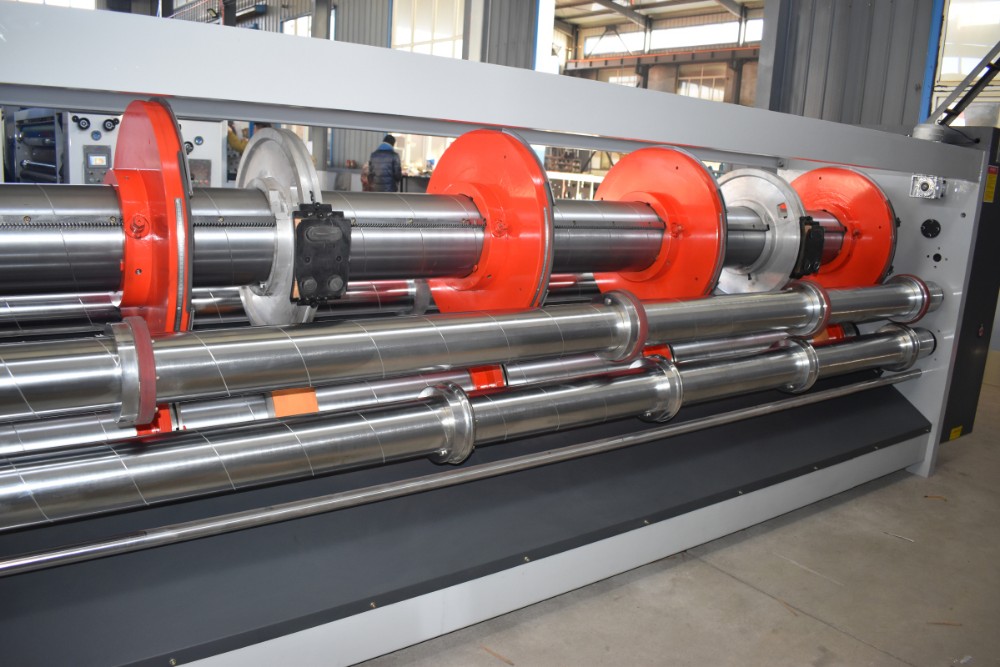

Main characteristics:

1.Chain feeding, side gauge positioning to ensure paper feeding accuracy

2.Planetary gear type 360-degree electric phase adjustment, fast and convenient

3.Adopt manual four-tool synchronous adjustment box height, convenient and quick (optional electric adjustment)

4.Automatic spray Lubrication Gear to prolong Gear Life

5.The grooved bottom shaft is designed with a cross slider eccentric sleeve, which can be adjusted according to the thickness of the cardboard and the pressure of the upper cutter shaft.

6.All shaft grinding, hard chrome plating

7.The slotting cutter adopts high quality 48CrMoand is quenched at high temperature.

8.The variable-frequency motor drive, the speed is adjustable, and the machine is running smoothly

9.Electronic counter, showing the quantity of production.

10.Slotted line pressing manual synchronous traverse (electric optional)

11.Optional: punch and hole or air hole

Related Products

After Sales Service

●We can send engineers to users factory install machine and traininng.

● we will provide layout, elecric drawing and related documents

● warranty: 1year

FAQ

1. Q: What is your delivery term? A: FOB,CIF,CFR usually. 2.Q: What is your payment? A: T/T.30% deposit, 70% balance before delivery. L/C. 100% at sight. T/T and L/C, 30% TT deposit, 70% L/C.3.Q: What is your delivery time? A: Die cutting machine, 30-40 days usually. If urgent, 15 days only. Paper cutting machine, 20-30 days usually. If urgent, 15 days only. 4.Q: What is your warranty and other terms? A: One year warranty. Spare parts are free for customer in 1 year, but customer have to pay delivery. We can send our engineer to customer factory for 7 days free installing and trainning, customer have to pay tickets, visa, meals and hotel. If need more training, $100.00 per day to our engineer.
