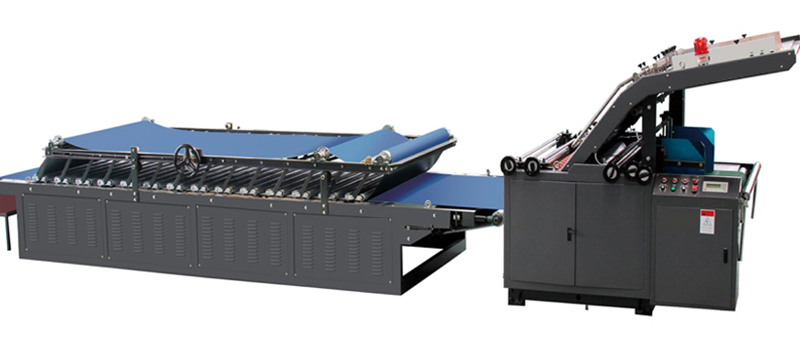

Corrugated cardboard box packaging Semi automatic flute laminator machine

Availability:
Quantity:
Inquire Add to Basket

  • Laminating Machine

  • Manufacturing Plant, packaging

  • New

  • Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, packing

  • Cartons, Bags, Case

  • Paper

  • Semi-Automatic

  • Electric

  • 380V

  • China,Hebei

  • XINGLONG

  • 9m x 1.5m x 1.7m

  • 3T, About 3T

  • CE,ISO9001

  • 1 YEAR

  • Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support

  • Long Service Life

  • HTM-1300

  • 1300mmX1200mm

  • 360mmX360mm

  • 0-100 piece/min

  • ±1MM

  • 8.5kw

  • 9m x 1.5m x 1.7m

Product Description
Parameter
Model
HTM-1300
HTM-1500
HTM-1600
Max size of cover face
1300mmX1200mm
1500mmX1200mm
1600mmx12mm
Min size of cover face
360mmX360mm
360mmX360mm
360mmx360mm
Economic speed
0-100 piece/min
0-100 piece/min
0-100 piece/min
Precision
±1MM
±1MM
±1MM
Power
8.5kw
8.5kw
8.5kw
Size
9m x 1.5m x 1.7m
9m x 2.15m x 1.7m
9m x 2.25m x 1.7m
Weight
About 3T
About 3.5T
About 3.5T

Function and Features:

1. The top paper can pile up the height of 1m once time ,it makes delivery more easier and efficient2. Adopt PLC & Taiwan servo motor control system, working is more precision and stable, improved the speed, circuit faults can automatically alarm.3. Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking4. Entire new concept,front gauge registration, position high accuracy, bottom sheet never exceedes the top sheet.5. Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm6. The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste;7. The scientific design of the metering roller speed to ensure the glue evently on the same time, to avoid rejection of glue at high speed.8. Using the rubber roller cleaning to make cleaning thoroughly, and so that the back of the corrugated cardboard never gets glue, and eliminating the trouble of frequent replacement of blade.9. Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick10. Control of water tank cleaning cycle using an independent method, clean, hard rubber product

Related Products
FAQ
1. Q: What is your delivery term? A: FOB,CIF,CFR usually. 2.Q: What is your payment? A: T/T.30% deposit, 70% balance before delivery. L/C. 100% at sight. T/T and L/C, 30% TT deposit, 70% L/C.3.Q: What is your delivery time? A: Die cutting machine, 30-40 days usually. If urgent, 15 days only. Paper cutting machine, 20-30 days usually. If urgent, 15 days only. 4.Q: What is your warranty and other terms? A: One year warranty. Spare parts are free for customer in 1 year, but customer have to pay delivery. We can send our engineer to customer factory for 7 days free installing and trainning, customer have to pay tickets, visa, meals and hotel. If need more training, $100.00 per day to our engineer.
