Corrugated Carton Box Printer Slotter Die Cutter Folder Gluer Strapper Production Line

Performance and Characteristics

The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, gluing and so on.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Motorized digital phase adjustment with "automatic zero return" and "memories" function
Availability:
Quantity:
  • FAYZ1224

  • xinglong

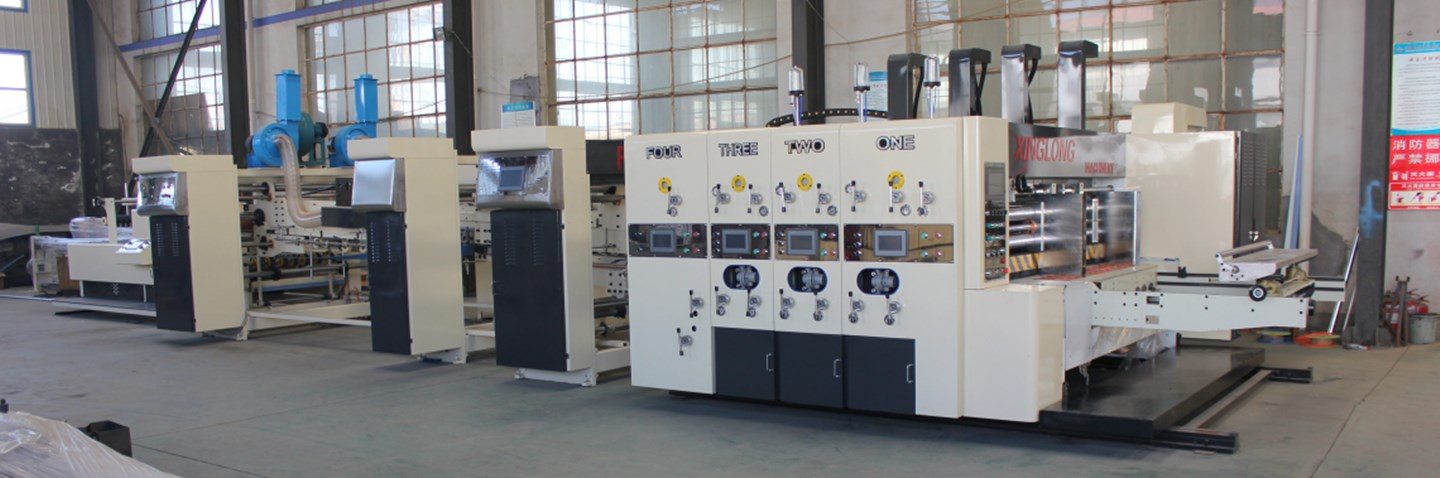

440b728de0790d7a0e757a9056711d7_副本

Main specification:



Model

1450X2400

Machine inside width(mm)

2600

Max sheet size(mm)

1450*2400

Max effective printing size(mm)

1450*1200

Min. sheet size(mm)

400*500mm

Design Speed(pcs/min)

200pcs/min

Color No.

4 color

Standard Thickness of printing plate

7mm

Printing precision

±0.5mm

Thickness of cardboard

1.2-11mm

Total power

About 55kw

Automatic Flexo Printing Slotting Die Cutting Machine

Features:

l  Designed according to high request and reliable function, humanization operation that can setting, revision, implement, changing and memories in short time, and display data.

l  All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.

l  Drive gears adopt high quality steel with heat treatment with grinded.

l  The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.

l  Engineer oil automatic balance device, keep the oil level equal in each unit.

l  Phase adopts electric digital adjusting with "automatic zero return"  function(options: PLC control touch screen)

l  Feeding type use lead edge or kick feeding.

l  Main motor is VFD.

ZXJ-1000 Folder Gluer inline

微信图片_201905070921283_副本

ZXJ-1000 carton folder gluer is specially designed and manufactured for inline with printing, slotting, folding, gluing and stacking, it features automatic conveying, glue applying, folding, with multi-stages auto control. Adopt PLC control, touch screen interface, pre-storage and management of orders, Its high-speed production capacity, fast order-changing and good stability can meet the short lead times required for our carton customers.


Model

ZXJ-1450

Max design speed

   200pcs/min

Max sheet size(mm)

1450*2400

Min. sheet size(mm)

350*750mm

Suitable for cardboard

3 ply , 5 ply corrugated cardboard

Belts

Polyvinyl acetate emulsion PVA

SP-1600 Auto Strapping Machine

全自动打包机

Model

SP-2400

Max speed

   12 straps/min

Air compressor

6KG/CM2

Platform height

850mm

Belt width/thickness

5-9mm/0.45-0.6mm


full-automatic-flexo-printing-slotting-die-cutting424微信图片_201904281741434
