Other
1.5 years
Manufacturing Plant
Video technical support, Online support, Spare parts, Field maintenance and repair service
None
None
New
Apparel, Chemical, Food, Machinery & Hardware, Textiles, Beverage, Commodity, Medical
Cartons, Film, Case
Paper, Plastic, Wood
Semi-Automatic
Electric
440/410/380v50hz
15kw
Hebei, China
Xinglong
about 4T
customized
CE certification
Field installation, commissioning and training, Engineers available to service machinery overseas
Low Noise Level
60pcs/min
optional
Corrugated Box Stitching Machine/carton packing machine prices
container, wooden cases
1 year

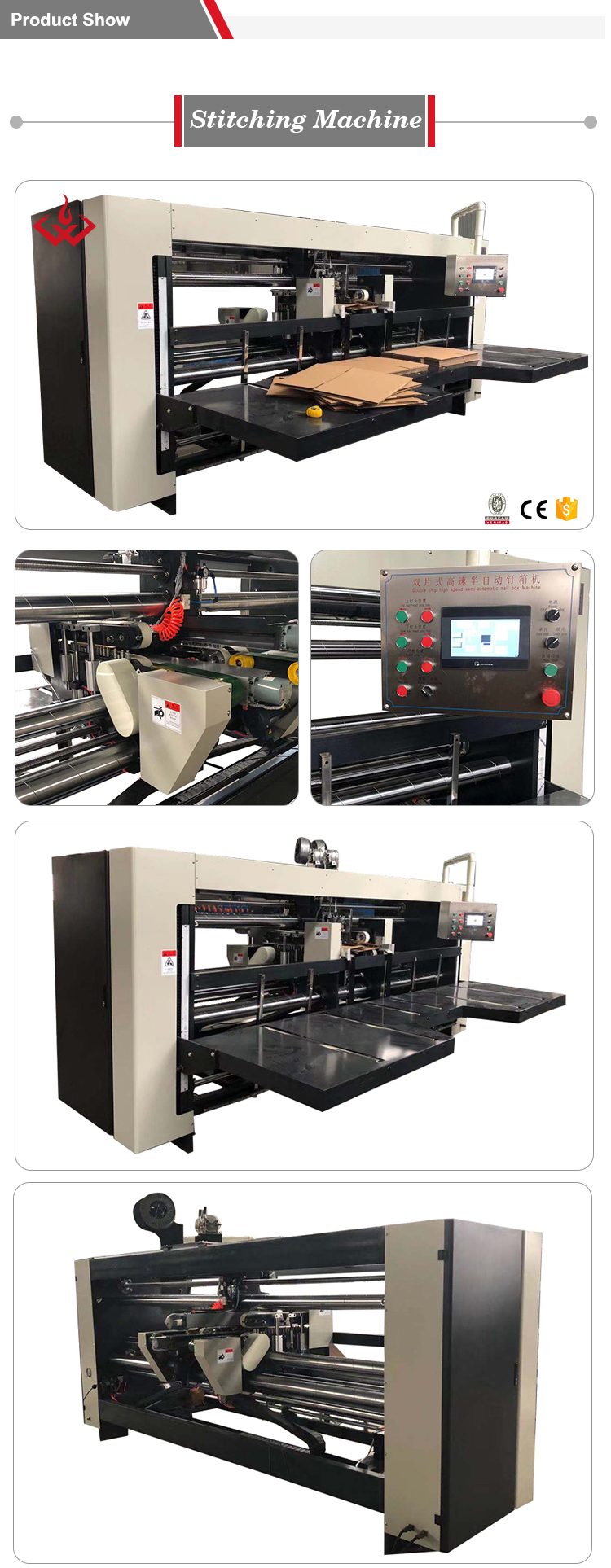

Corrugated Box double pieces Stitching Machine/carton packing machine prices
Technology Parameters:
Mechanical speed | 500nails/min |
|
|
Pitch of nails | 30-120arbitrarily adjustable |
Effective height of table lifting | 900mm |
Machine weight | About 3 T |
Maximum feeding size | 2700mm |
Min.feeding size | 720mm |
Max.carton height | 2000mm |
Min.carton height | 150mm |
Maximum carton cover | 400mm |
Min.carton cover | 50mm |
Max paper height | 900mm |
Mechanical length | 2850mm |
Mechanical width | 2200mm |
Mechanical height | 2000mm |
Nail No. | 1—99 |
Product Introduce
1. Guangdong High Speed head
2. Wire feeder automatic Wire feeding
3. Automatic lifting worktable
4. Automatic feeding
5. Automatic counting and feeding into bales
6. Automatic positioning of rear baffle ,Using stepping motor drive, accurate size, convenient and fast.
7. Pressure electric adjustment of rubber wheel
8. Touch screen control box cover, box height, nail number, nail distance, convenient and fast change.
9. The Japanese Yaskawa double servo drive is accurate and the mechanical transmission is reduced, which can effectively reduce the failure rate of the machine.
10. Can nail single nail, double nail, strengthen nail [order in advance], can meet the different requirements of different customers.
11. Three ply, five ply, seven ply cardboard can be nailed [specified in advance at the time of ordering].
12. Change the carton size,[ box cover, box height, nail number, nail distance] only need one minute to complete, greatly save time, easy to operate.
13. The front paper feeding part automatically rises and falls, and the paper feeding table is equipped with photoelectric induction device to maintain the best feed height.
14. The back has the function of automatic counting, the finished product box can be sent to the end of the conveying machine according to the set quantity, which is convenient for packing and binding.
Corrugated Box double pieces Stitching Machine/carton packing machine prices
Technology Parameters:
Mechanical speed | 500nails/min |
|
|
Pitch of nails | 30-120arbitrarily adjustable |
Effective height of table lifting | 900mm |
Machine weight | About 3 T |
Maximum feeding size | 2700mm |
Min.feeding size | 720mm |
Max.carton height | 2000mm |
Min.carton height | 150mm |
Maximum carton cover | 400mm |
Min.carton cover | 50mm |
Max paper height | 900mm |
Mechanical length | 2850mm |
Mechanical width | 2200mm |
Mechanical height | 2000mm |
Nail No. | 1—99 |
Product Introduce
1. Guangdong High Speed head
2. Wire feeder automatic Wire feeding
3. Automatic lifting worktable
4. Automatic feeding
5. Automatic counting and feeding into bales
6. Automatic positioning of rear baffle ,Using stepping motor drive, accurate size, convenient and fast.
7. Pressure electric adjustment of rubber wheel
8. Touch screen control box cover, box height, nail number, nail distance, convenient and fast change.
9. The Japanese Yaskawa double servo drive is accurate and the mechanical transmission is reduced, which can effectively reduce the failure rate of the machine.
10. Can nail single nail, double nail, strengthen nail [order in advance], can meet the different requirements of different customers.
11. Three ply, five ply, seven ply cardboard can be nailed [specified in advance at the time of ordering].
12. Change the carton size,[ box cover, box height, nail number, nail distance] only need one minute to complete, greatly save time, easy to operate.
13. The front paper feeding part automatically rises and falls, and the paper feeding table is equipped with photoelectric induction device to maintain the best feed height.
14. The back has the function of automatic counting, the finished product box can be sent to the end of the conveying machine according to the set quantity, which is convenient for packing and binding.
