China supplier machines 3 ply small carton box making machine

Share to:

China supplier machines 3 ply small carton box making machine

Availability:

Quantity:



Inquire Add to Basket

Type:
Packaging Line
Applicable Industries:
Manufacturing Plant
Condition:
New
Application:
Food, Beverage, Commodity, Medical
Packaging Type:
Cartons
Packaging Material:
Paper
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
3ph 380v 50hz
Place of Origin:
Hebei, China
Brand Name:
XINGLONG
Dimension(L*W*H):
80*5*4.5M
Weight:
100TONS
Certification:
CE
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
High Safety Level
Name:
China supplier machines 3 ply small carton box making machine
Usage:
make corrugated cardboard
Function:
make flute paper, adhesive, cutting, stackng
Model:
1600
Speed:
100m/min
heating type:
steam
boiler capacity:
2tons
overall size:
80*5*4.5m
Suitable for:
2/3ply corrugated cardbooard
Applicable Product:
cartons

Product Description

Product Description

Usage

1. Automatic 3ply corrugated cardboad line box making machine carton making machine cardboard making machine produce high quality corrugated cardboard with high degree and stregth.

Advantage

2. advanced design with skill, high production efficienty speed up 200m/min

^{Effective width}	1600mm
Design speed	100m/min
working speed	0-80m/min
heating type	steam
total power	approx 150kw

Direction for use

This 3ply carton box making machine corrugated cardboard production line can make A, B, C or E flute carbaord with different size and high strenght

Detailed Images

Sturcture

China supplier machines 3 ply small carton box making machine corrugated cardboard making line consisted by many machines, such as reel stand, single facer, preheater, glue machine, double facer, slitting machine, NC cut-off, stacker etc

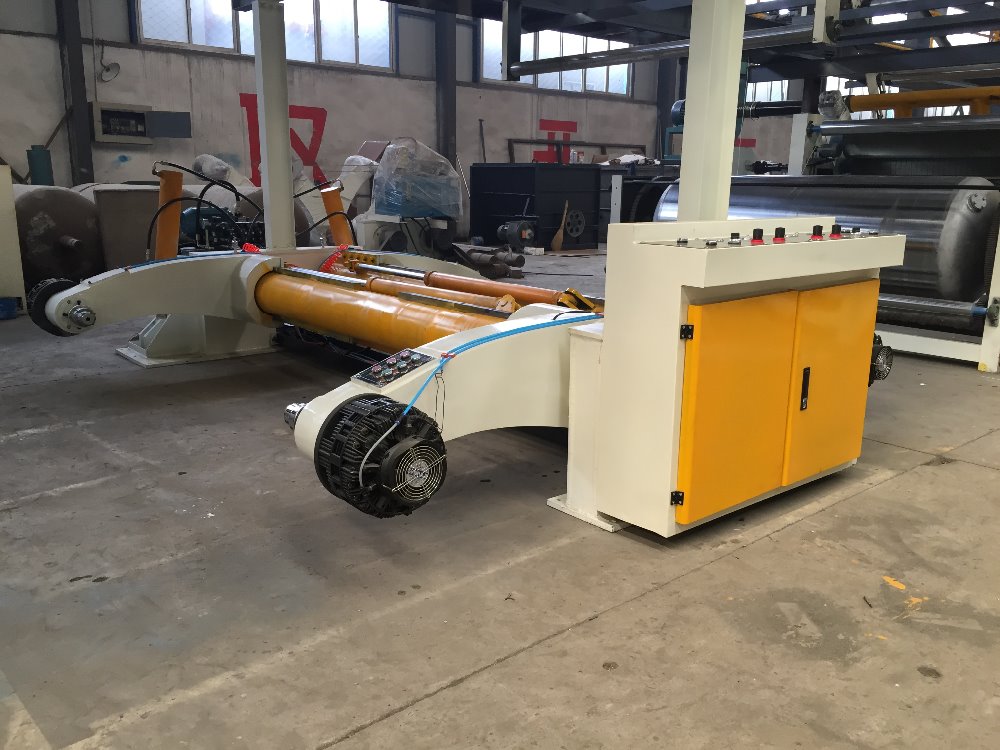

Hydraulic mill roll stand

Roll paper lift-lower, clamp, loosen, movement, contraposition operated by hydraulic

Electric mill roll stand

Roll paper lift-lower, clamp, loosen, movement, contraposition operated by motorize

Single facer

1. It can make UV flute paper, A, B, C, E flute avaliable for choose, or customized

2. The single facer machine is vacuum suction type, make flute with good quality, wind amount is adjustable.

3. Gimbal connect independent gearbox with roller to drive machine, drive more stable and reliable, easy to maintain.

4. Automatic circulation glue supply, pneumatic distribute glue and restoration, buffer effective.

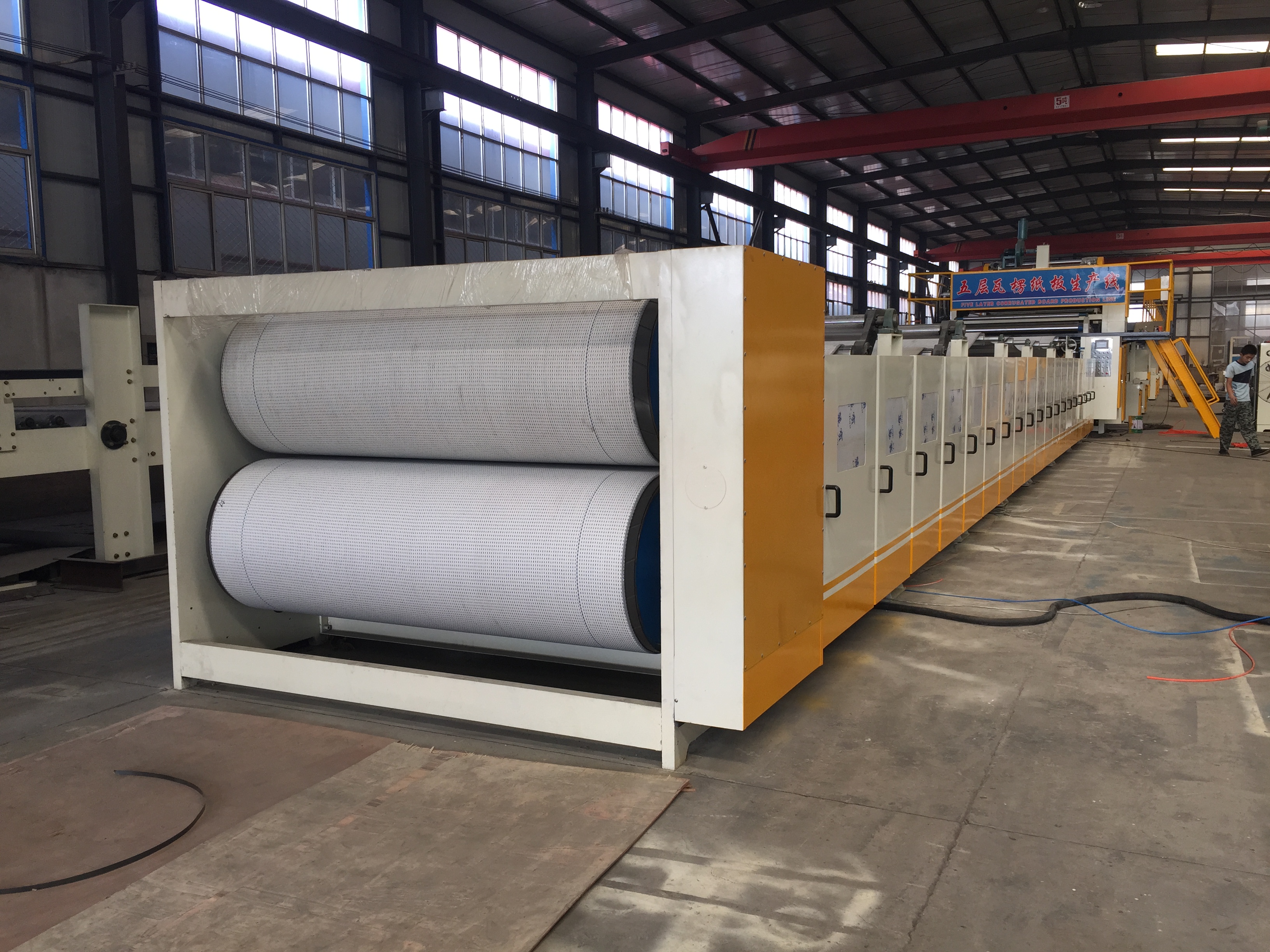

Double facer

1. The whole structure made of wide channel steel, firm structure, beauty appearance, stable and meet high speed running.

2. Professional manufacturer produce hot-plate, meet national pressure vessel standard. 520mm hot-plate, many pieces reinforcing rib make the hot-plate uneasy to be deformation.

3. Steam pipe input, output is S-shape, hot-plate temperature balance, even.

4. Upper belt equipped with automatically rectify device, pneumatic control tension, down belt equipped with tension and left-right rectify device.

Packing&Shipping

Company Introduction

Dongguang Xinglong Packaging Machinery Co .,Ltd is specialized in the production of various kinds of carton equipments of the well-know enterprise.Factory of over twenty years, we introduced advanced technology at home and abroad, developing and manufacturing products, has been well received by customers. We are specialized in producing 3ply, 5ply, 7ply corrugated production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipments. Products are exported to Russia, the Middle East, Africa, Southeast Asia, EU and other countries and through out the country. Product quality and enterprise reputation get the high praise at home and abroad. Over the years the company take “the quality first” “integrity-based” corpose always meet users’ requirements as our sole purpose, providing the products with excellent quality, professional technology. Our company is willing to cooperate with domestic and foreign insight, strive for innovation, coexit win-win, hand in hand altogether will create package future.

After Sales Service

Installation and training in custom factory

1. we can send experienced engineer to clients factory install machine and training

2. we can send spare free in 1 year guarantee( like bearing, gear, rollers etc)

3. video support and wechat live show to training
