Packaging Line, Die cutting and creasing machine corrugated paperboard box machinery
Manufacturing Plant, Farms, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Video technical support, Online support, Spare parts, Field maintenance and repair service
Egypt, Italy, Brazil, Indonesia, Pakistan, India, Mexico, Thailand, UAE, Uzbekistan
None
New
Apparel, Commodity, Food, Medical, Textiles, Beverage, Chemical, Machinery & Hardware
Film, Case
Plastic, Wood
Automatic
Electric
3PH 410/380v50hz customized
Hebei, China
Xinglong
customized
about 5000kg
CE certification, CE
1 YEAR, 1 year
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Easy to Operate
China factory supply creasing and die cutting machine
Customized
1800*1300mm
16±2(strokes/min)
15KW
plastic or no package

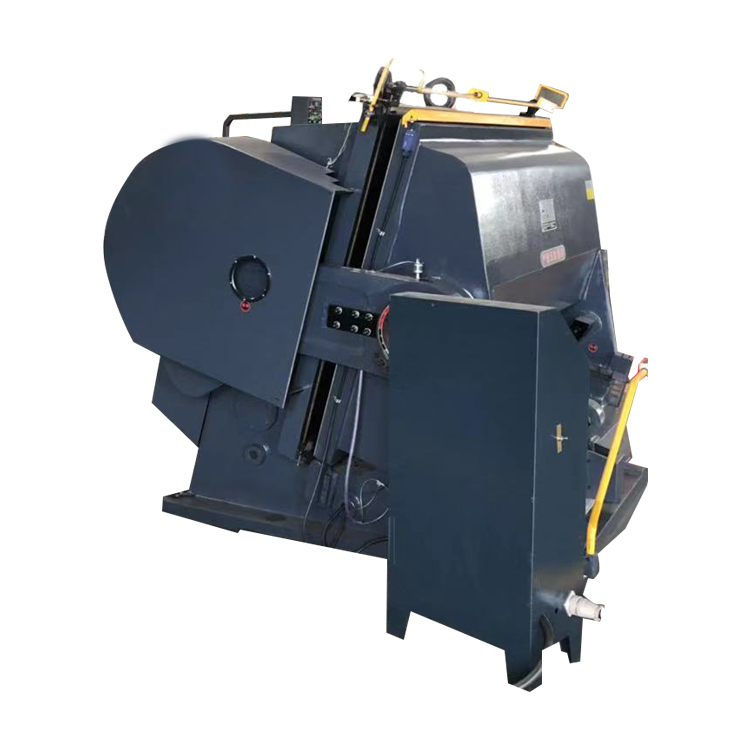

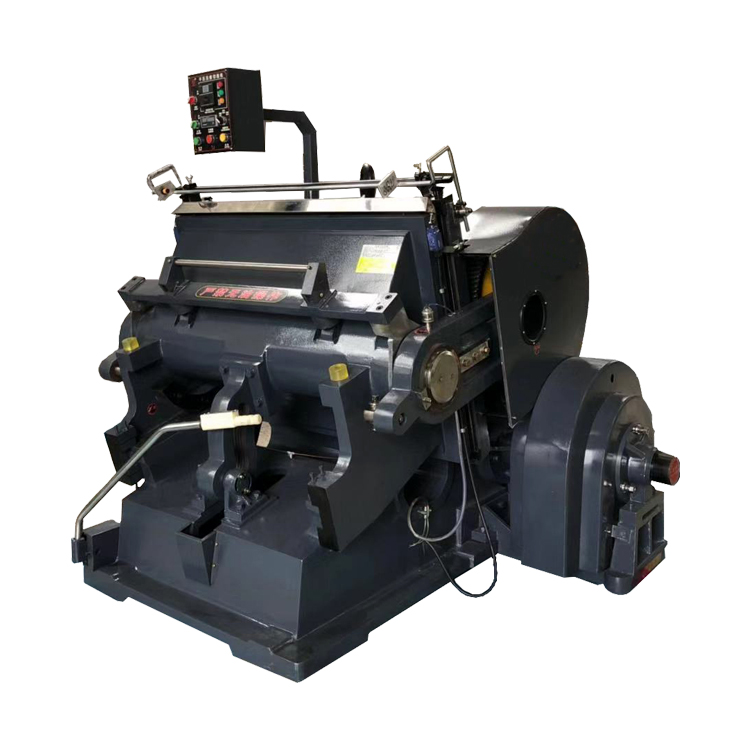

China factory supply creasing and die cutting machine
Use and Characteristics:
1. The four safety protection system for gate, triangle, handle, light-operated, it is more safety.
2. Four functions: single cutting, continuous cutting, working in delay time and counting.
3. Single plate electromagnetic clutch is sensitive and reliable, high safely performance and so on. Adopt adjustable die-plate, easy to upload plate, discharge plate.
4. Standard configuration: Provide oil by hand, centralized or computer automatically. Or frequency speed adjustable.
Main Technology Parameters:
Model | Max effective area | Working speed | WACRULELENGTH | Motor power | Weight |
PYQ203D | 930×670mm | 23±2(strokes/min) | <25m | 3.0kw | 3000kg |
ML1100 | 1100×800mm | 20±2(strokes/min) | <32m | 4.0kw | 4500kg |
ML1200 | 1200×830mm | 20±2(strokes/min) | <35m | 4.0kw | 4800kg |
ML1300 | 1300×920mm | 18±2(strokes/min) | <40m | 5.5kw | 6000kg |
ML1400 | 1400×1000mm | 17±2(strokes/min) | <45m | 5.5kw | 6800kg |
ML1500 | 1500×1050mm | 16±2(strokes/min) | <45m | 5.5kw | 7500kg |
ML1600 | 1600×1250mm | 16±2(strokes/min) | <50m | 11kw | 11000kg |
ML1800 | 1800×1300mm | 16±2(strokes/min) | <62m | 15kw | 13500kg |
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang country, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: What is the delivery time of your machine?
A: In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.
5. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
China factory supply creasing and die cutting machine
Use and Characteristics:
1. The four safety protection system for gate, triangle, handle, light-operated, it is more safety.
2. Four functions: single cutting, continuous cutting, working in delay time and counting.
3. Single plate electromagnetic clutch is sensitive and reliable, high safely performance and so on. Adopt adjustable die-plate, easy to upload plate, discharge plate.
4. Standard configuration: Provide oil by hand, centralized or computer automatically. Or frequency speed adjustable.
Main Technology Parameters:
Model | Max effective area | Working speed | WACRULELENGTH | Motor power | Weight |
PYQ203D | 930×670mm | 23±2(strokes/min) | <25m | 3.0kw | 3000kg |
ML1100 | 1100×800mm | 20±2(strokes/min) | <32m | 4.0kw | 4500kg |
ML1200 | 1200×830mm | 20±2(strokes/min) | <35m | 4.0kw | 4800kg |
ML1300 | 1300×920mm | 18±2(strokes/min) | <40m | 5.5kw | 6000kg |
ML1400 | 1400×1000mm | 17±2(strokes/min) | <45m | 5.5kw | 6800kg |
ML1500 | 1500×1050mm | 16±2(strokes/min) | <45m | 5.5kw | 7500kg |
ML1600 | 1600×1250mm | 16±2(strokes/min) | <50m | 11kw | 11000kg |
ML1800 | 1800×1300mm | 16±2(strokes/min) | <62m | 15kw | 13500kg |
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang country, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: What is the delivery time of your machine?
A: In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.
5. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
