Packaging Line, Corrugated carton box making machine
New
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Cartons
Paper
Automatic
Steam heating
380v/410v/440v 50Hz
about 130kw, about130KW(380V 50HZ)
Hebei, China
XINGLONG
XL-paper making machine
about 65mX 5mX 4.5m
about 100tons
CE
China factory supply carton box making corrugated manufacturing plant
A,B,C,E,UV
1200-2200mm
60-120 meters/min
Customized
380V, 50Hz
±1mm(manual)
1 Year
Engineers available to service machinery overseas

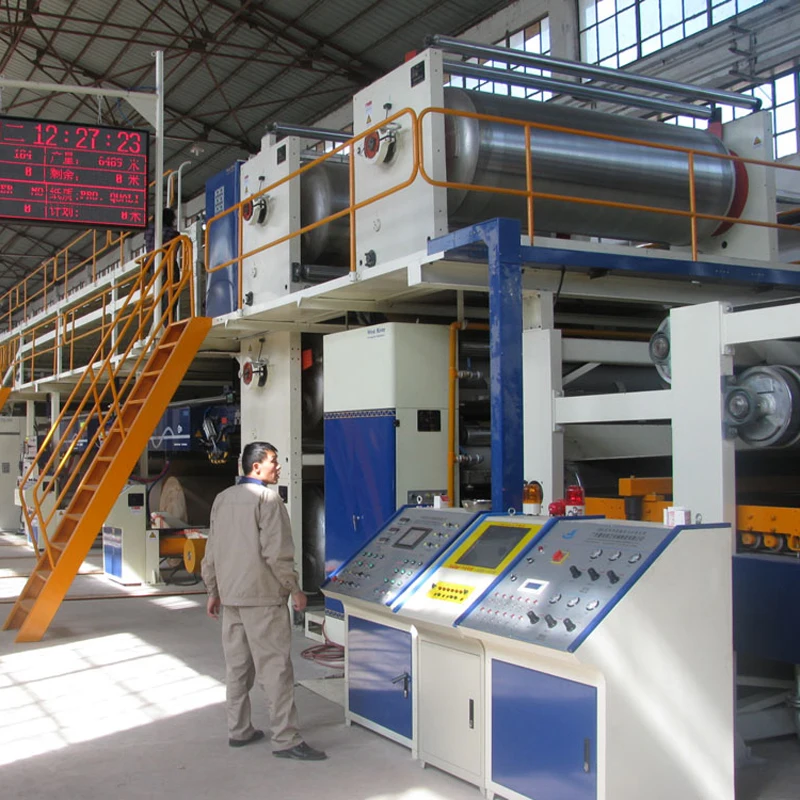

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard. The production line consists of the mill roll stand, liner preheater, single facer machine, conveyor bridge, gluing machine, double facer machine, slitter scorer, cut-off, conveyer and stacker, heating system, air cmpression system and gue making system and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad,our company has developed and designed these production lines with the speed 60-220m/min, the paper width 1600-2200mm and A,B,C,E,UV flute production line can satisfy different customrs.
Box making machine main units:
No. | Name | Sets | Comment |

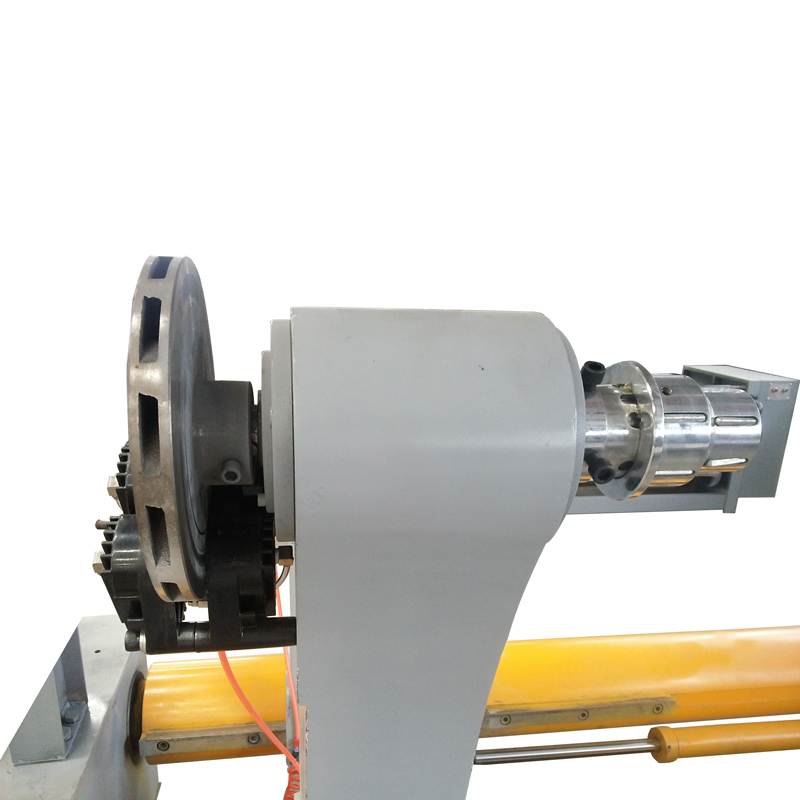

1 | Mill roll stand |
| Electric mill roll stand , expansion dop top, pneumatioc brake |
| 2 | Trolley | Include slide way | |
| 3 | Pre-heater | Φ800, electric adjust heating area | |
4 | Single facer |
| Vac-sorb,φ320 alloy roller ,cardan drive |
5 | Conveyor bridge |
| Electric collection, adsorption tension |
6 | Triply pre-heater |
| φ 800, electric adjust heating area |
7 | Gluing machine |
| Frequency Synchronous transmission |
8 | Dring part |
| 520mm*15pcs heat plate, with up down tension pressure roller (with quality certificate) |
9 | Cooling part |
| With up down tension pressure roller, length is 4meters |
10 | Main drive |
| Adjustable speed motor |
11 | Conveyor belt |
| Quality cotton woven belt, electric lift |
12 | NC cut-off |
| Computer control, Straight knive |
13 | Slitter scorer |
| 5blades8scores, electric collection, alloy blade |
14 | Make paste system |
| With horizontal output |
15 | Glue making system |
| Automatic recycle send glue |
16 | Electric control system |
| 2control desk of single facer , 1 of main drive, 1of NC cut-off |
17 | Air compressor |
| Electric charging |
18 | Steam heating system |
| Without boiler and main pipe |
Drawing:
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Need any updated info? Contact us click here
