corrugated box printing machine
corrugated box printing machine Specification | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
corrugated box printing machine Advantage |
l Feeding Unit
n This machine adopts chain feeding system, equipped with side gauge make sure feeding paper accurately.
n Abrasion resistance materials as the support of the bottom of chains, fast running, low noise .
n Main motor placed under the feed table.
n Equipped with block paper steel bar to ensure the easy feeding of the bend cardboard.
n Feeding error ±1.5mm.
l Printing unit
n Printing roller, paper feeding roller, pressure roller, all the surfaces grinding, hard chromium plating.
n Adopt planet style electrical adjustment of 360 degrees whatever operating and stopping, quickly
and accurately.
n Motorized shift and pneumatic locking up of printing units.
n Inking roller can be detached from printing plate automatically to avoid damage the printing plate.
n Inking roller equipped idling running device to prevent ink from being dried when machine stop.
n Pneumatic lifting and down the anilox roller, auto ink distributing.
n With Pneumatic diaphragm pump to supply ink.
n Main transmission gears are made by 45#steel after high frequency quenching.
n Drive part adopts spray lubricating system, improve the precision and serve life of machine.
n Main shafts connect with gear used no-key connect(ringfeder), so keep shaft running stably.
n Transmission part adopts automatic spray lubraction system, improve machine use time and precision.
n All gears adopt cross slide head to perform no gap adjustment, printing accurately.
n Manual adjustment of the printing roll axial position 15mm.
n Printing precision±0.5mm(when the paper board is plane and smooth).
n Auto count device properly controls production volume..
Option device: hang plate grove
l Slotting unit
n The slotting knives pedestal can be worm-type adjustment according to the thickness of card board. ( Three & Five layer only).
n The slitting knives pedestal can be worm-type adjustment according to the thickness of card board. ( Three & Five layer only).
n The back slotting knife (Height of the box) Four knives adjustment synchronous, easy working.
n Electric adjustment Printing phase and slotting position.
n 7mm alloy steel slotting knives with indent heat treatment to enable grinding teeth sharp edge.
Option: Slotting and crease joint movement by hand or motorized control
Hand hole device |
corrugated box printing machine characteristic |
1.professional manufacturer 2.Located in Dongguang 3.good after service |
corrugated box printing machine Payment Terms |
30% T/T in advance, the balance paid before shipment |
corrugated box printing machine Information |
Plastic film wap |
Why choose corrugated box printing machine |
Dongguang Xinglong Packaging Machinery Co., Ltd. is located to the south of Beijing and north of Jinan, so it has convenient land and water facilities. It is a professional enterprise with a large scale to produce carton machinery and printing machinery. |

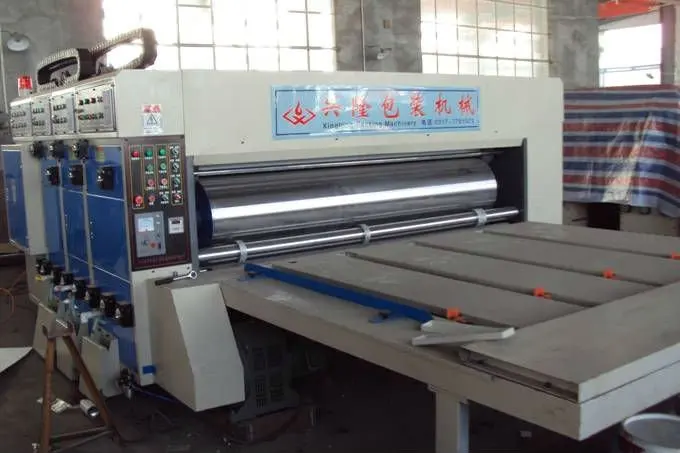

corrugated box printing machine photo |
|
our factory photo |
wait for your connect : skype:selenaxcy whatsapp/tele:86 188-3271-7998 wechat/QQ:1269-6193-76 |
